safety module, Harmony XPSU, Cat 1, potential free 2 NC, NO NC, 2 PNP, 24V AC or DC, screw

Safety module, Harmony Safety

SQDXPSUAB11CP XPSUAB11CP 3606489601577
169.43 / EA
http://schema.org/OutOfStock

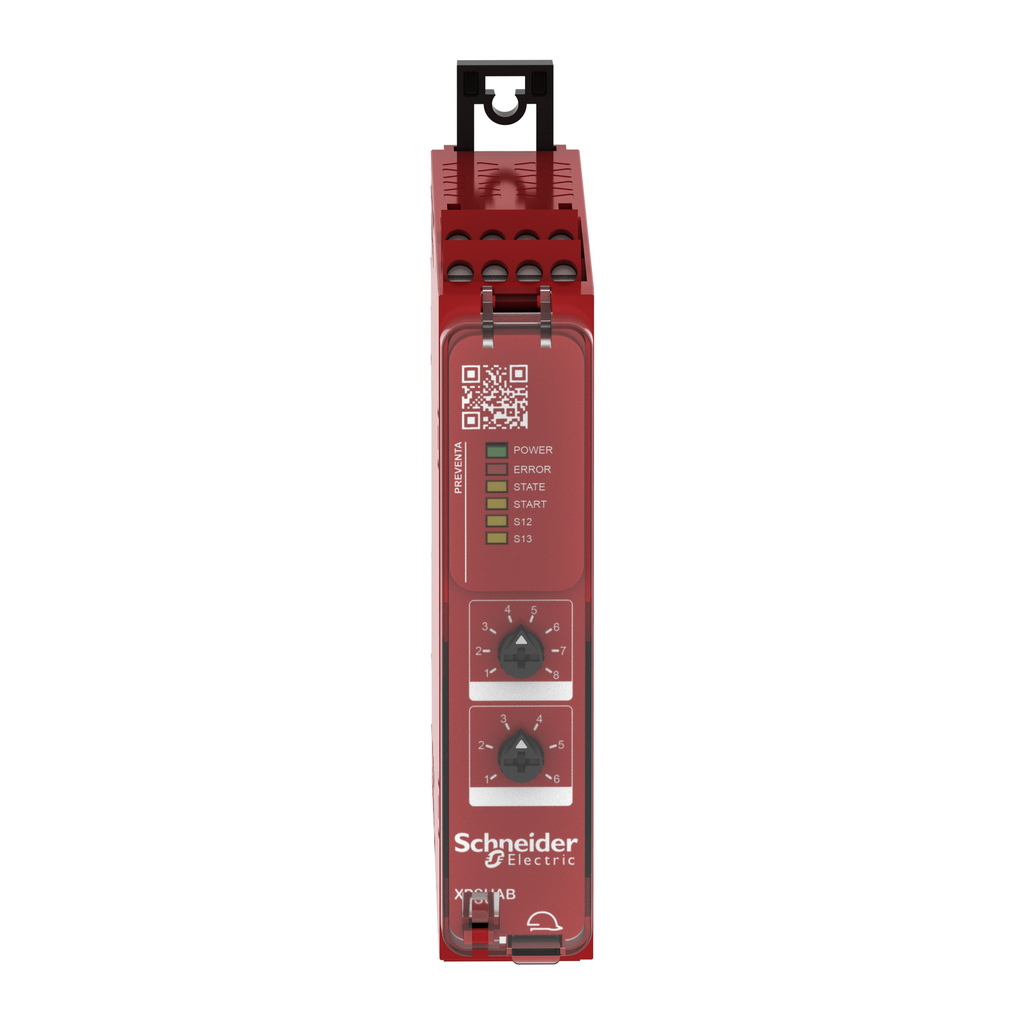

Mayer-DDS-safety module, Harmony XPSU, Cat 1, potential free 2 NC, NO NC, 2 PNP, 24V AC or DC, screw-2
  • Country of Origin: Indonesia
This safety relay is designed for monitoring Emergency stop, Antivalent contacts, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch, Safety light curtain or Two-hand control stations. The safety relay is powered with
QTY
  • Product Description
  • Features
  • Specifications
This safety relay is designed for monitoring Emergency stop, Antivalent contacts, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch, Safety light curtain or Two-hand control stations. The safety relay is powered with
  • Power Consumption In W
    • 1.5 W 24 V DC
  • US Rated Supply Voltage
    • 24 V AC - 15...10 %
    • 24 V DC - 20...20 %
  • Minimum Output Current
    • 10 mA relay output
  • Safety Reliability Data
    • MTTFd >= 30 years ISO 13849-1
    • Dcavg < 60 % ISO 13849-1
    • PFHd = 1177E-09 1/h ISO 13849-1
    • HFT = 0 IEC 62061
    • PFHd = 1177E-09 1/h IEC 62061
    • PFHd = 1177E-0
  • Connections Terminals
    • removable screw terminal block, 0.2...2.5 mm² solid or flexible
    • removable screw terminal block, 0.25...2.5 mm² flexible with f
  • Input Output Type
    • semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
    • semiconductor pulsed di
  • IE Rated Operational Current
    • 5 A AC-1 for normally open relay contact
    • 3 A AC-15 for normally open relay contact
    • 5 A D
  • IP Degree Of Protection
    • IP20 terminals)IEC 60529
    • IP40 housing)IEC 60529
    • IP54 mounting area)IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.009260045650949157
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.5661974613971172
    • 0.6 kg CO2 eq.
  • Standards
    • IEC 60947-5-1
    • IEC 61508-1 functional safety standard
    • IEC 61508-2 functional safety standard
    • IEC 61508-3 functional safety standard
    • IEC 61
  • Safety Module Application
    • for electrical monitoring of two-hand control stations
    • for application with safety switchover contact
    • for emergency stop, guard and light curtain monitoring
    • monitoring antivalent contacts
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 5 kg CO2 eq.
    • 4.597421373290575
  • Input Compatibility
    • normally closed circuit ISO 14119
    • XC limit switch ISO 14119
    • mechanical contact ISO 14119
    • normally closed circuit ISO 13850
    • antivale
  • UI Rated Insulation Voltage
    • 250 V 2)IEC 60947-1
  • Accessories
    • XPSES
    • XPSEC
  • Safety Level
    • can reach PL = c ISO 13849-1
    • can reach SILCL 1 IEC 62061
    • can reach SIL 1 IEC 61508
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
  • Power Consumption In VA
    • 3.5 VA 24 V AC 50/60 Hz
  • Number Of Inputs
    • 1 safety input 24 V DC 5
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 48 kg CO2 eq.
    • 48.426620565160576
  • Number Of Outputs
    • 2 on/off configurable pulsed output
  • Relative Humidity
    • 5-95 % non-condensing
  • Persona Type Ids
    • EU
    • OM
    • OM8
  • Minimum Output Voltage
    • 15 V relay output
  • Carbon Footprint Of The Distribution Phase A4
    • 0.12020162123537007
    • 0.1 kg CO2 eq.
  • Associated Fuse Rating
    • 6 A gG relay output IEC 60947-1
  • Local Signalling
    • LED (green) for power ON
    • LED (red) for error
    • LED (yellow) for start
    • LED (yellow) for safety status
    • LED (yellow) for sa
  • UIMP Rated Impulse Withstand Voltage
    • 4 kV II IEC 60947-1
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001239_3D-CAD
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-07-03
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Manufacturing Carbon Footprint : 4.59742137329058
    • Distribution Carbon Footprint : 0.12020162123537
    • Installation Carbon Footprint : 9.26004565094916e-03
    • Use Carbon Footprint : 48.4266205651606
    • End Of Life Carbon Footprint : 0.566197461397117
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1811003EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1915
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Package Weight Lbs : 259.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
    • Returnability : Yes
    • Safety Module Name : XPSUAB
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 54 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 53.71970106673459
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1811003EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 259
    • Functional Unit Description : To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 131.4
    • Energy Model Manufacturing A1 A3 : Indonesia, ID
    • Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Italy, IT
    • Recyclability Potential In : 0
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.30091379651709577
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.03759942210126015
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0005223264465519911
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.00002926086952420536
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.26240436322424593
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0003584238755134931
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.13807520751308758
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.06758817289671196
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : -0.000001179242463077
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.037162296239274174
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.03332591761956453
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 53.58160676222814
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 4.529814103400505
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.12020162123537007
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.009261224893412233
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 48.3894582689213
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.5328715437775526
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 53.71970106673459
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 4.597421373290575
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.12020162123537007
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.009260045650949157
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 48.426620565160576
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.5661974613971172
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.003121248956980084
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.003118439856320796
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000001033214659
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000009819949974
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000281077099221773
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -0.00000000177886457651
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 1327.0376520994957
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 75.62225416187697
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1.4956009572066034
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.02608420062391175
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 1249.310653208109
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.5830595716794043
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 766.7517621015439
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 81.47088897304536
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.4929577391360112
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.3237073142478977
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 527.0059563333525
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 157.45825174176215
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : 0
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000225901092148686
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000020579119392936
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000141775564468
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000012172509543
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000204942373915494
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000225650766244
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : 0
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.00000462703635827716
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00000462703635827716
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.000156904268111231
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00001213515638747076
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000001407479783413
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000001034810832764
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0001397755413916755
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000496914742592295
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 11.03279340501609
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 10.888310737214717
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.00009958674615235607
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.00001295601234929046
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.14437012504287056
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000117651834794026
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000105229163280784
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000169591776
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000042978610363
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000599923120504
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000011779600190599
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000042752193695368
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000018611649077786
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000031747149803
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.0000000001475016284
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000022582535245024
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000001511512059915
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.649156040474967
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.06309410603980005
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.586061934435167
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 94.99921023250438
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 19.062546491986623
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.000266497607189802
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00002576874501826885
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 75.9361576114273
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.00021386273825078732
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.03441463155860719
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0036855139872821185
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00024003020708916514
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00001356677828336805
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.03029063101980164
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0001848895661508944
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Materials For Energy Recovery Kg Total Life Cycle : 0.00000006057548995547
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.00000006057548995547
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.00000124645910715676
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.00000124645910715676
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.08493239343698561
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.04433503673372849
    • Net Use Of Fresh Water M3 Distribution A4 : 0.00014198510680540454
    • Net Use Of Fresh Water M3 Installation A5 : 0.0001295697326563897
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.04004710171684332
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0002787001469520044
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : 0
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 6.842522497297251
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.934367790464844
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00012234104808236463
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.056960215892656
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 5.78716634499187
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0639058048997997
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000009692017363963
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000006627778739336
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000010607200921002
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000008887165213
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000019975225382513
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000051072777541
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.11482090967188982
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.014169538480902378
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000852834444940262
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00003328431670071331
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.09932173689394425
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0004435155354022256
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : 0
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0012927761708362302
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0006359307422006831
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.00002389808051731064
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.00000014568012560365
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0006312689461771935
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000153272181543928
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.46253769060359523
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.03933947662909106
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0026009729637422644
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00013999828880784847
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.4186293362918514
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0018279064301026534
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.416183462454404
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.416183462454404
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 1551.7591205399772
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 79.07772781815277
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1.495610735202998
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.026148018087784674
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1470.5757500186544
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.5838839498793237
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 224.72146844048152
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.4554736562757866
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000977799639445865
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00006381746387292061
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 221.26509681054554
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0008243781999194505
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.416183462454404
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.416183462454404
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1325.6214686370413
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 74.20607069942254
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.4956009572066034
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.02608420062391175
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1249.310653208109
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.5830595716794043
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.9593377605015672
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.9593377605015672
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 222.76213067997995
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.4961358957742188
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000977799639445865
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00006381746387292061
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 221.26509681054554
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0008243781999194505
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.00000793877381818181
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00000793877381818181
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 3.6381742622753217
    • Water Use M3 Eq Manufacturing A1 A3 : 1.8945177918704286
    • Water Use M3 Eq Distribution A4 : 0.006098260337292122
    • Water Use M3 Eq Installation A5 : 0.005565020017591937
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 1.7200230187384205
    • Water Use M3 Eq End Of Life C1 C4 : 0.011970171311588586
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : 0
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : safety module
    • Range Of Product : Harmony Safety Automation
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465471222&lang=en-us
    • Take Back : No
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 53.7197010667346
    • Circularity Profile : ENVEOLI1811003EN
    • Environmental Disclosure : ENVPEP1811003EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1811003EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : Indonesia
