SQUARE D

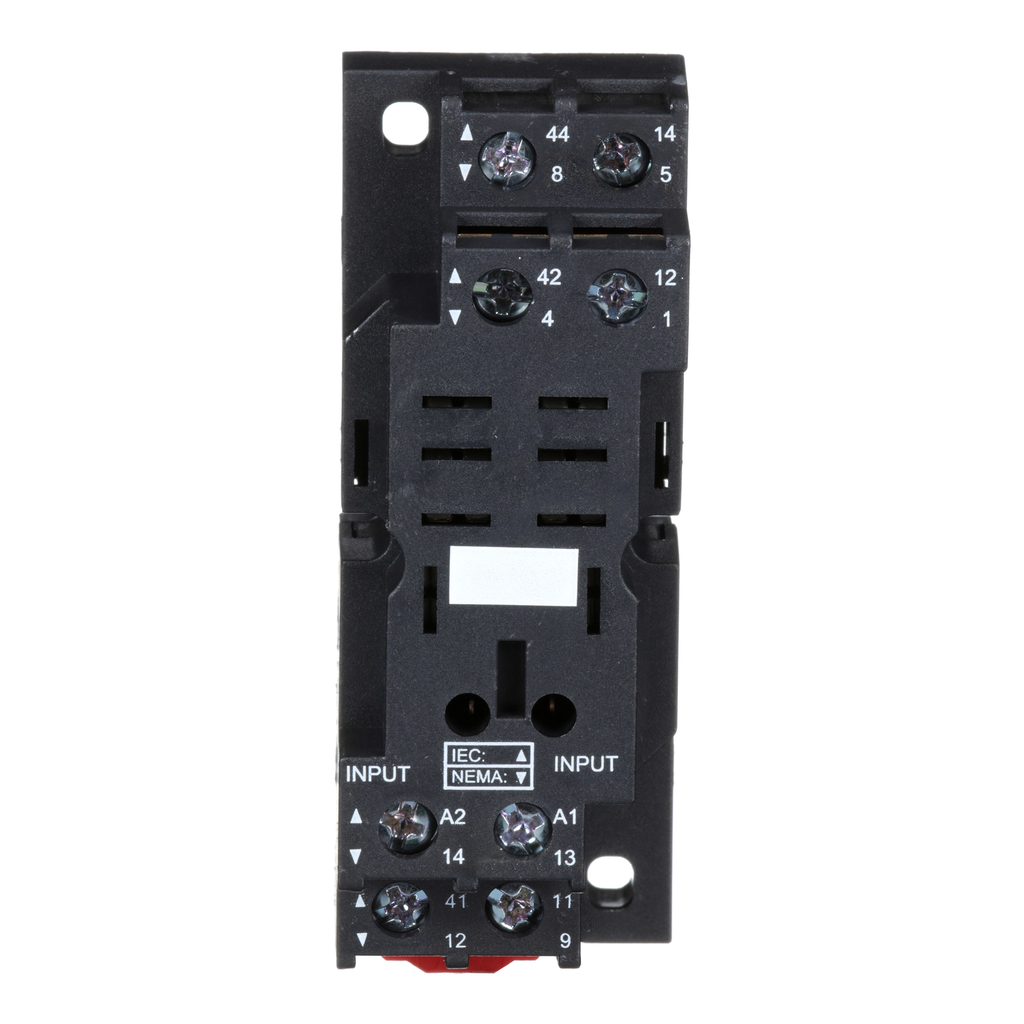

Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM2 relays

8BLADE CUBE RELAY BASE

SQDRPZF2 RPZF2 3389119402293
9.89 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM2 relays-2
  • Country of Origin: Taiwan
  • Dielectric Strength: 2500 V
  • Net Weight: 0.054 kg
  • Warranty Length: 18 mth
  • Weight: 0.054 kg
  • Width: 30 mm
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || CSA
    • Ambient Air Temperature For Operation : -40-55 °C
    • Standards : IEC 61984
    • Connections - Terminals : - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14 || - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16 || - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14 || - screw clamps terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16
    • Marking : CE
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Dielectric Strength : 2500 V
    • Ambient Air Temperature For Storage : -40-85 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1511021EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.531635599
  • Complementary
    • Tightening Torque : < 1 N.m M3.5
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV
    • Pollution Degree : 3
    • Shape Of Pin : flat
    • Contact Terminal Arrangement : mixed
    • Net Weight : 0.054 kg
    • Fixing Mode : by screw (panel) || clip-on (35 mm symmetrical DIN rail)
    • Sale Per Indivisible Quantity : 10
    • Width : 30 mm
    • Overvoltage Category : III
  • Specifications
    • Country of Origin : Taiwan
    • Width : 30 mm
    • Weight : 0.054 kg
    • [Ith] Conventional Free Air Thermal Current : 16 A
    • Range Of Product : Harmony Electromechanical Relays
    • Product Or Component Type : socket
    • Contacts Type And Composition : 2 C/O
    • Product Compatibility : plug-in relay RPM 2 C/O
    • Device Short Name : RPZ
    • [Ue] Rated Operational Voltage : < 250 V
