Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."

• Features
• Help to reduce the size of enclosures
• Compatible with plug in control relay Schneider Electric
• Flexible design for space-saving
• Easy installation and connect to the relay from its socket
• Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 10 A
• Ue Rated Operational Voltage : < 250 V< 250 V
• Uimp Rated Impulse Withstand Voltage : 4 kV
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Range Of Product : Harmony Electromechanical Relays, Harmony Timer Relays
• Tightening Torque : < 1 N.m M3.5, < 1 N.m M3.5< 1 N.m M3.5, < 1 N.m M3.5
• Connections Terminals : screw connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
• Certificate Agency : UL, CSA
• Carbon Footprint Of The Distribution Phase A4 : 0.02827704022252274, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.07914457862828805
• Carbon Footprint Of The Installation Phase A5 : 0.007166332752655045, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.9782195179838664
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-08-10
• Return Indicator : Y
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : RUZ
• Contact Terminal Arrangement : mixed
• Contacts Type And Composition : 2 C/O
• Device Short Name : RUZ
• Fixing Mode : by screw (panel)clip-on (35 mm symmetrical DIN rail)
• Group Of Product : RUM_2_C/O_CON_MIX_CYL
• Marking : CE
• Overvoltage Category : III
• Product Availability : Stock - Normally stocked in distribution facility

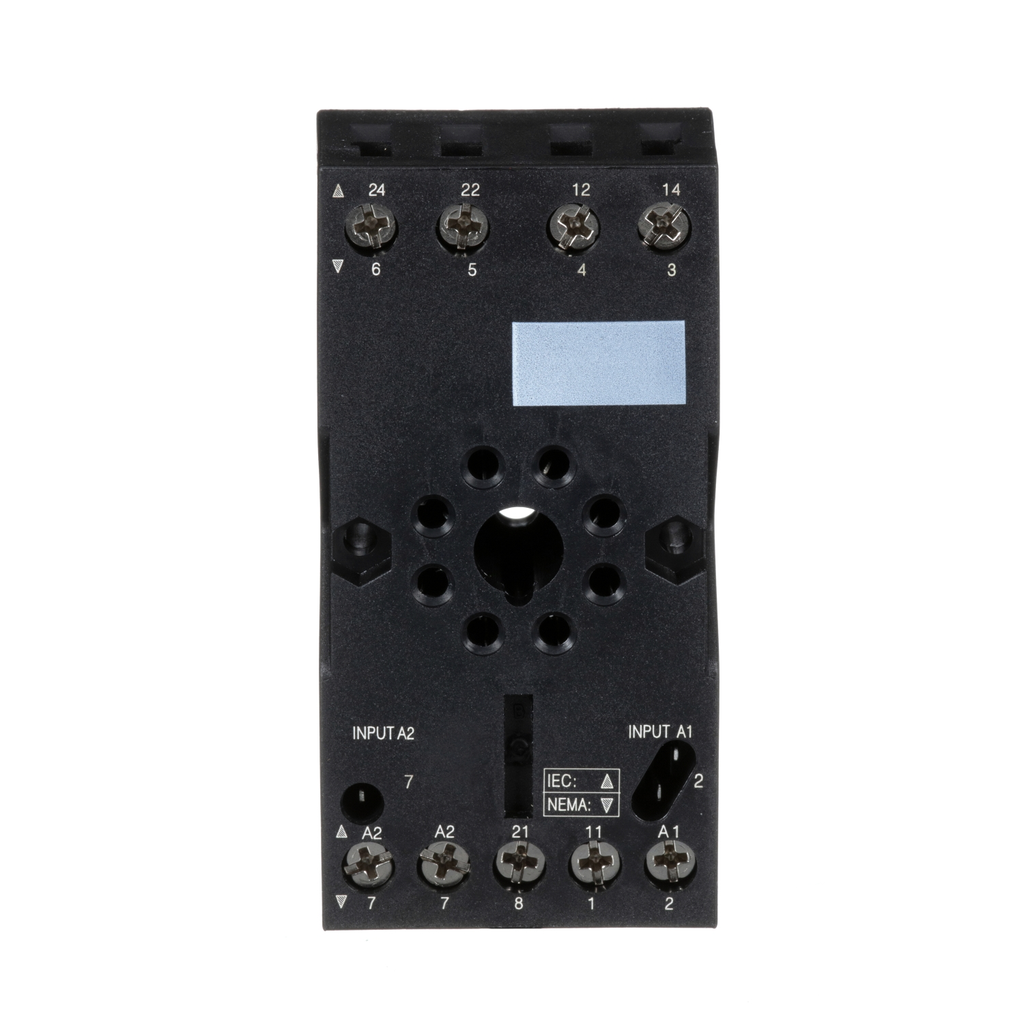

• Product Or Component Type : socket
• Returnability : Yes
• Sale Per Indivisible Quantity : 10
• Shape Of Pin : cylindrical
• Software Version : v6.3.0.1-4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Database Version : 2024-01
• Data Source : extrapolated product
• Width Nominal : 38 mm
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8536698000
• Ith Conventional Free Air Thermal Current : 10 A
• Warranty In Months : 18
• Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Recyclability Potential In % : 58
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-55 °C, -40-55 °C
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Product Compatibility : plug-in relay RUM 2 C/O, plug-in relay RE48 2 C/O, plug-in relay RE48 1 C/O + 1 C/O
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 2.092807469587332
• Environmental Disclosure : ENVPEP2506025EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506025EN
• Pep Verification Date : 2025-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Range Of Product : Harmony Electromechanical Relays, Harmony Timer Relays
• Product Or Component Type : socket
• ETIM
• ETIM 8 : EC001456
• ETIM 9 : EC001456
• ETIM 10 : EC001456
• Output Attributes
• Output Type : relay
• Contractual Warranty Attributes
• Warranty : 18 months
• Specifications
• Country of Origin : Singapore, United States
• Weight : 54 g
