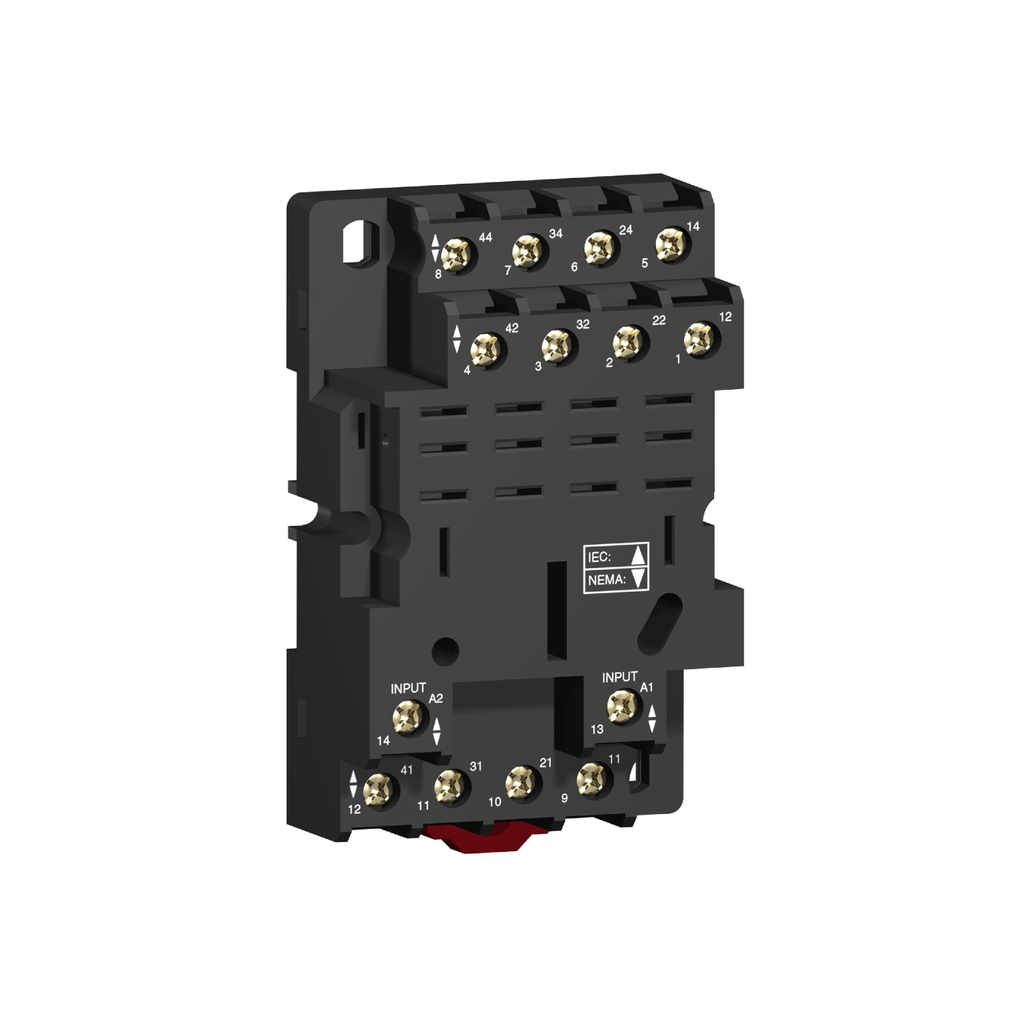

"This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001830_3D-CAD
• Conformance Attributes
• Product Certifications : UL, CSA
• Standards : IEC 61984
• Complementary Attributes
• Ue Rated Operational Voltage : < 250 V, < 250 V
• Line Rated Current : 16 A
• Uimp Rated Impulse Withstand Voltage : 4 kV
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Fixing Mode : by screw (panel), clip-on (35 mm symmetrical DIN rail)
• Tightening Torque : < 1 N.m M3.5, < 1 N.m M3.5, < 1 N.m M3.5, < 1 N.m M3.5
• Connections Terminals : - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16, screw clamp terminals, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16
• Carbon Footprint Of The Distribution Phase A4 : 0.0121281956, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0090085735
• Carbon Footprint Of The Installation Phase A5 : 0.0007208378, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.9 kg CO2 eq., 0.9035821395
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Medium Desc : socket, Harmony Electromechanical Relays, for RPM4 power relays, 16A screw clamp terminals, mixed contact
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Html Descr : Zelio Plug-in Socket RelayProduct Compatibility: Plug0in relay RPM (4 C/O)Conventional Free Air Thermal Current: 15ARated Operational Voltage: Fixing Mode: By screw mounting on panel, Clip-on mounting on 35mm symmetrical DIN railConnections - Terminals: Screw Clamp TerminalsDegree of Protection: IP 20
• Return Indicator : Y
• Stocking Flag : Y
• Manufacturer : Schneider Electric
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : RPZ
• Contact Terminal Arrangement : mixed
• Contacts Type And Composition : 4 C/O
• Device Short Name : RPZ
• Dielectric Strength : 2500 V
• Group Of Product : RPM_4_C/O_SC_TER_MIX_FLAT
• Marking : CE
• Overvoltage Category : III
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• Returnability : Yes
• Shape Of Pin : flat
• Software Version : EIME v5.8.1
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.9 kg CO2 eq.
• Ith Conventional Free Air Thermal Current : 16 A
• Pep Code : ENVPEP2506024EN
• Database Version : 2016-11
• Pep Verification Date : 2020-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : RPZF1 is a socket that can be mounted with RPM1 plug in relays and protect persons during 20 years with the following dimensions 80mm x 31mm x 21mm.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: China
• Energy Model Installation A5 2 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Width Nominal : 50 mm
• Environment Attributes Main
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.9254397464
• Ambient Air Temperature For Operation : -40-55 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Environmental Disclosure : ENVPEP2506024EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : plug-in relay RPM 4 C/O
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506024EN
• Pep Verification Date : 2020-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• ETIM
• ETIM 8 : EC001456
• ETIM 9 : EC001456
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
