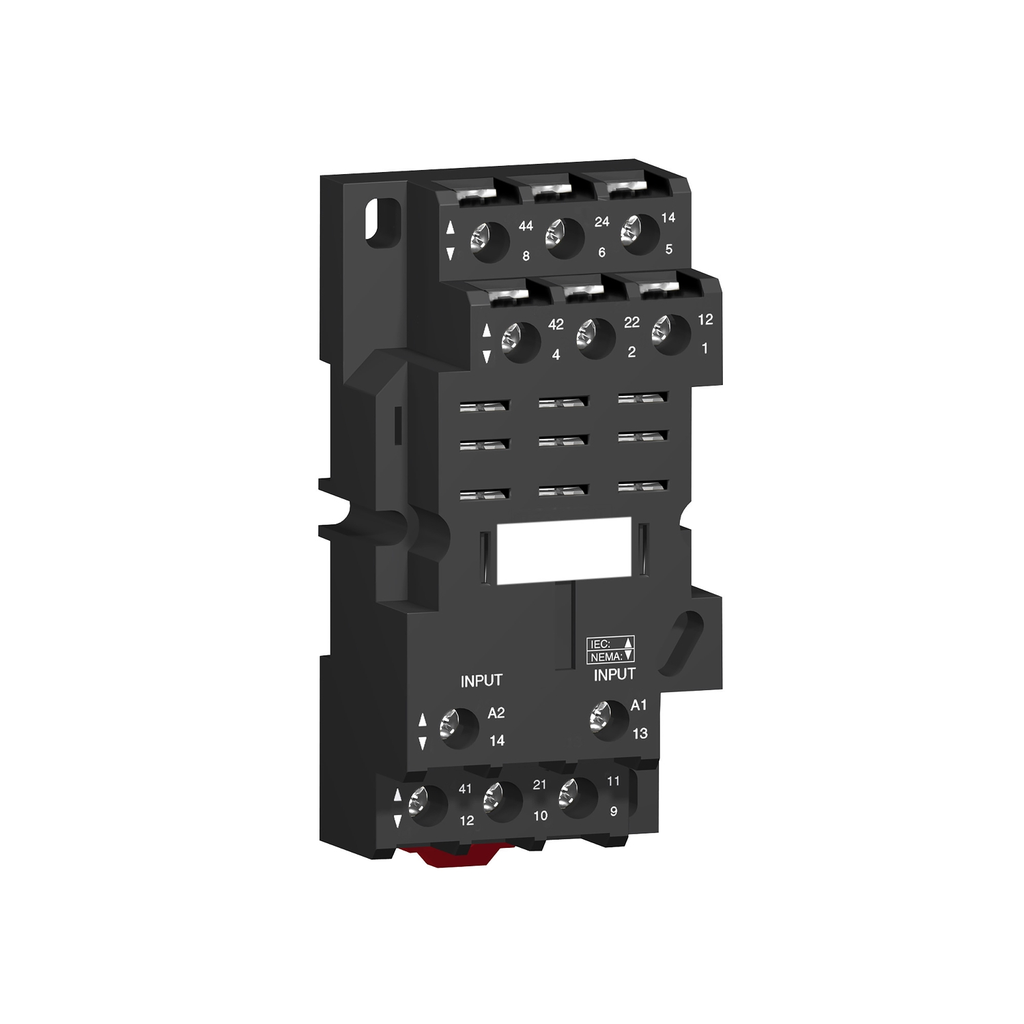

This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A. "This plug-in relay socket is compatible with interface plug-in relay RPM range." "It has a large choice of number of contacts for high rated current use with sp

• Connections Terminals
• - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14
• - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Carbon Footprint Of The Installation Phase A5
• 0.0005904735
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0073793634
• Ip Degree Of Protection
• IP20 conforming to IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.7 kg CO2 eq.
• 0.7401683483
• Accessories
• RPM31F7
• RPM32BD
• RPM32B7
• RPM32F7
• RPM32P7
• RUW240BD
• RUW241P7
• RUW101MW
• Fixing Mode
• by screw (panel)
• clip-on (35 mm symmetrical DIN rail)
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Carbon Footprint Of The Distribution Phase A4
• 0.0099347985
• 0 kg CO2 eq.
• Tightening Torque
• < 1 N.m M3.5
• Product Compatibility
• plug-in relay RPM 3 C/O
• Product Certifications
• CSA
• UL

• Conformance Attributes
• Standards : IEC 61984
• Complementary Attributes
• Line Rated Current : 16 A
• Ue Rated Operational Voltage : < 250 V
• Uimp Rated Impulse Withstand Voltage : 4 kV
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 4/4/2025
• Html Descr : Zelio Plug-in Socket RelayProduct Compatibility: Plug0in relay RPM (3 C/O)Conventional Free Air Thermal Current: 15ARated Operational Voltage: Fixing Mode: By screw mounting on panel, Clip-on mounting on 35mm symmetrical D
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 0.740168348
• Distribution Carbon Footprint : 0.009934799
• Installation Carbon Footprint : 0.000590474
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.007379363
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Compatibility Code : RPZ
• Contact Terminal Arrangement : mixed
• Contacts Type And Composition : 3 C/O
• Device Short Name : RPZ
• Dielectric Strength : 2500 V
• Group Of Product : RPM_3_C/O_SC_TER_MIX_FLAT
• Marking : CE
• Overvoltage Category : III
• Package Weight Lbs : 77.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• Returnability : Yes
• Sale Per Indivisible Quantity : 10
• Shape Of Pin : flat
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.8 kg CO2 eq.
• Ith Conventional Free Air Thermal Current : 16 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.758072984
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=648794&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.758072984
• Ambient Air Temperature For Operation : -40-55 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Environmental Disclosure : ENVPEP2506024EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Taiwan
• Width : 1.57 in
