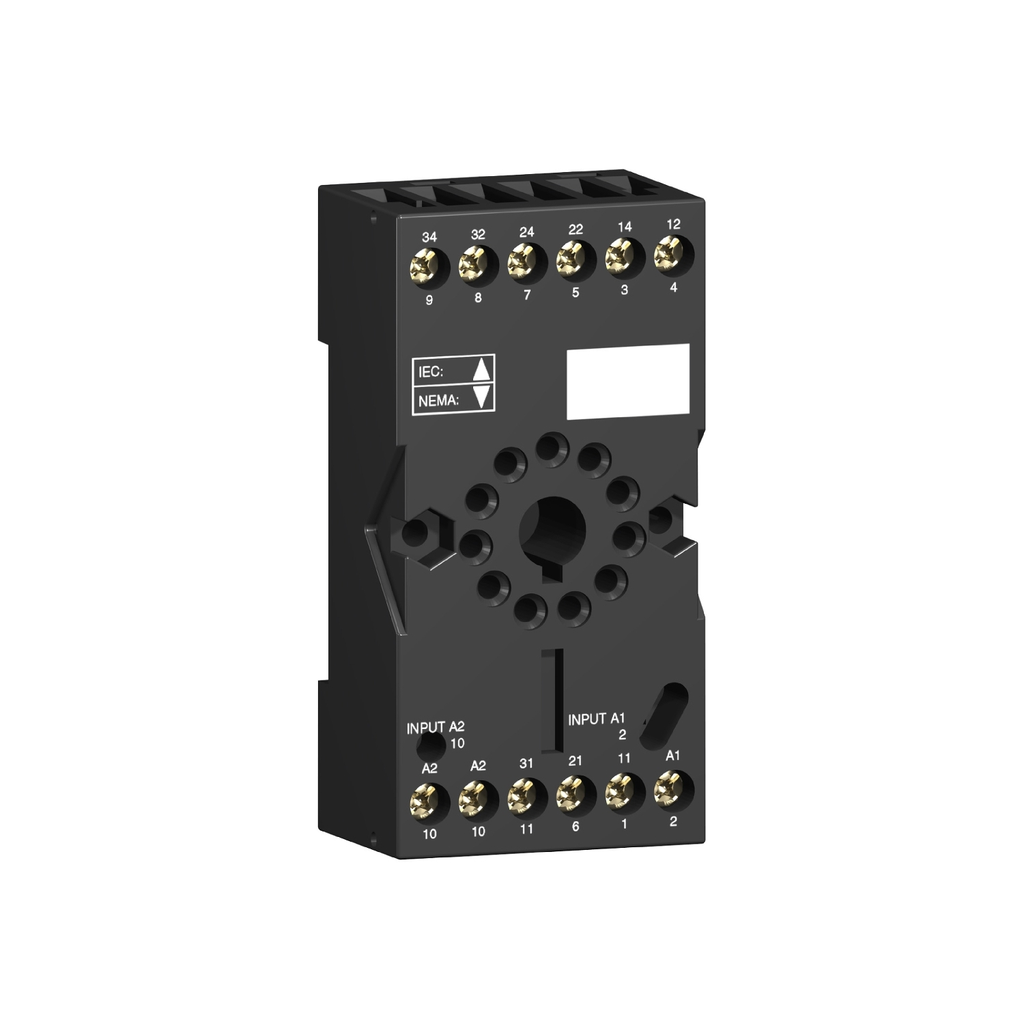

socket ,Harmony Electromechanical Relays, for RUMC2 relays, 12A, screw connectors, separate contact

RELAY SOCKET 300V 12A RUZ +OPT

SQDRUZSC2M RUZSC2M 3389119403245
7.35 / EA
http://schema.org/OutOfStock
Mayer-DDS-socket ,Harmony Electromechanical Relays, for RUMC2 relays, 12A, screw connectors, separate contact-1
  • Country of Origin: China
  • Net Weight: 0.095 kg
  • Warranty Length: 18 mth
  • Weight: 0.095 kg
  • Width: 36 mm
"This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
"This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || CSA
    • Ambient Air Temperature For Operation : -40-55 °C
    • Standards : IEC 61984
    • Marking : CE
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Ambient Air Temperature For Storage : -40-85 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1511021EN
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Tightening Torque : < 1 N.m M3.5
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV
    • Pollution Degree : 3
    • Shape Of Pin : cylindrical
    • Contact Terminal Arrangement : separate
    • Net Weight : 0.095 kg
    • Fixing Mode : by screw (panel) || clip-on (35 mm symmetrical DIN rail)
    • Connections - Terminals : connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
    • Sale Per Indivisible Quantity : 10
    • Width : 36 mm
    • Overvoltage Category : III
  • Specifications
    • Country of Origin : China
    • Width : 36 mm
    • Weight : 0.095 kg
    • [Ith] Conventional Free Air Thermal Current : 12 A
    • Range Of Product : Harmony Electromechanical Relays
    • Product Or Component Type : socket
    • Contacts Type And Composition : 2 C/O
    • Product Compatibility : plug-in relay RUM 2 C/O
    • Device Short Name : RUZ
    • [Ue] Rated Operational Voltage : < 250 V
