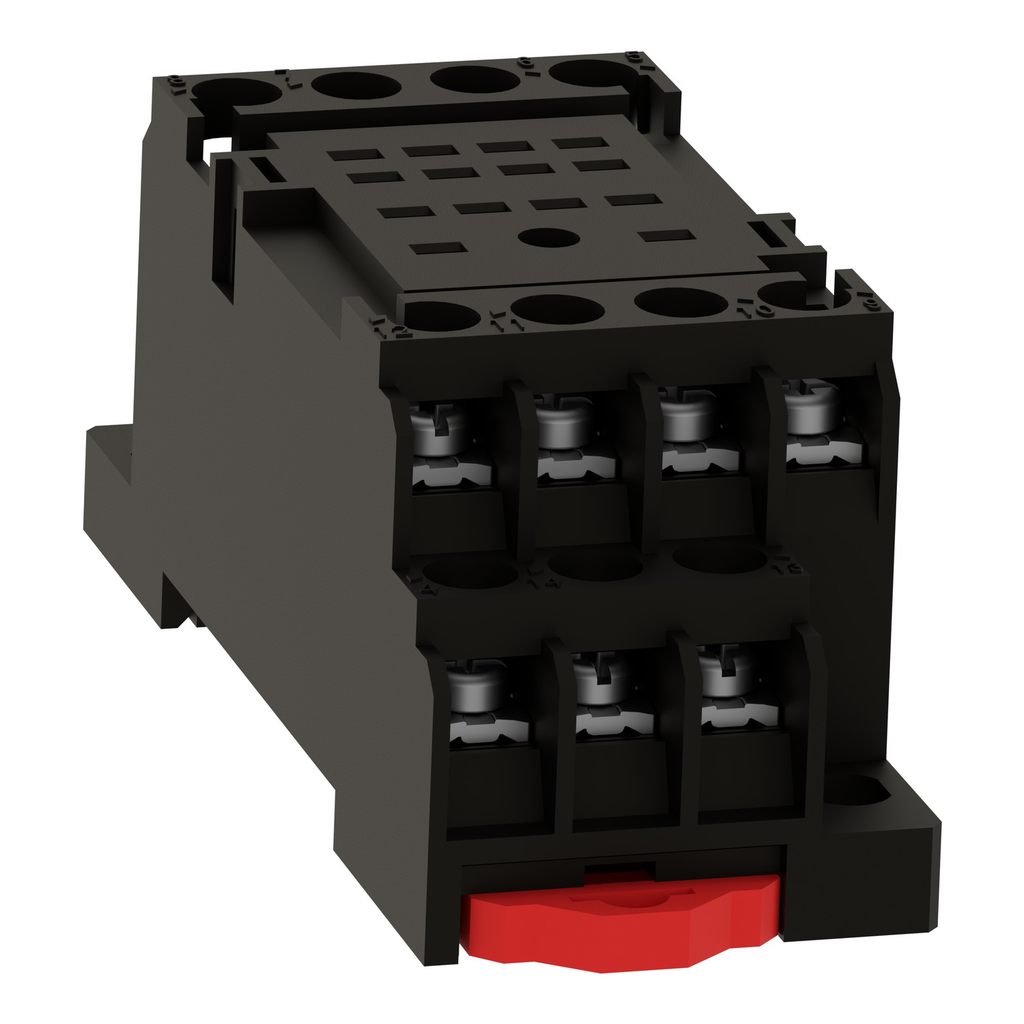

socket, Harmony Electromechanical Relays, for RXM2LB RXM4LB relays,7A, screw clamp socket, mixed contact terminal

SOCKET RXZ -MIXED CONTACT - 7

SQDRXZE1M4C RXZE1M4C 3389119218481
3.09 / EA
http://schema.org/OutOfStock
Mayer-DDS-socket, Harmony Electromechanical Relays, for RXM2LB RXM4LB relays,7A, screw clamp socket, mixed contact terminal-1
  • Dielectric Strength: 2500 V
  • Warranty Length: 18 mth
"This Harmony RXZ plug-in socket has a rated voltage of 250V AC with an output rating of 7A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
"This Harmony RXZ plug-in socket has a rated voltage of 250V AC with an output rating of 7A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Line Rated Current : 7 A
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Tightening Torque : < 0.8 N.m M3, < 0.8 N.m M3< 0.8 N.m M3, < 0.8 N.m M3
    • Certificate Agency : IEC 61984, CE, UL 508
    • Connections - Terminals : screw clamp terminals, screw clamp terminals, 1 x 0.2...1 x 1.0 mm² 24 AWG...17 AWG) flexible with cable end, screw clamp terminals, 2 x 0.2...2 x 1.0 mm² 24 AWG...17 AWG) flexible with cable endscrew clamp terminals, 1 x 0.5...1 x 1.5 mm² 20 AWG...16 AWG) solid without cable end, screw clamp terminals, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
    • Carbon Footprint Of The Distribution Phase [A4] : 0.02728, 0 kg CO2 eq.
    • Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.2 kg CO2 eq., 0.15343
    • Carbon Footprint Of The Installation Phase [A5] : 0.0067108, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.6 kg CO2 eq., 0.55017
    • Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 2
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : RXZ
    • Contact Terminal Arrangement : mixed
    • Contacts Type And Composition : 4 C/O
    • Device Short Name : RXZ
    • Dielectric Strength : 2500 V
    • Fixing Mode : by screw (panel)clip-on (35 mm symmetrical DIN rail)
    • Marking : CE
    • Overvoltage Category : III
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : socket
    • Range Of Product : Harmony Electromechanical Relays
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 10
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.7 kg CO2 eq.
    • Pep Code : ENVPEP1511020EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-01-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional-unit Description : To allow users to connect and disconnect the plug of an electrical load or the source of a signal from a network; in which the variation of current in one electric circuit controls the flow of electricity in another circuit during 20 years with UL standards E70550.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; CN
    • Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    • Recyclability Potential In % : 48
    • Width Nominal : 29 mm
    • [Ith] Conventional Free Air Thermal Current : 7 A20 A + 0.5 ms per user registered
    • [Ue] Rated Operational Voltage : 250 V AC IEC
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 0.052 kg
    • Take-back : No
    • Warranty (In Months) : 18
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 6.779
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 5.2836
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] : -37.982
    • Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] : 13.282
    • Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 2.3088
    • Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] : 4.4562
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 6.779
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] : 5.2836
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] : -37.982
    • Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 6.9912
    • Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 5.2841
    • Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] : -37.982
    • Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 5.9063
    • Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 5.2836
    • Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] : -37.982
    • Customs Code : 8536904000
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -40-55 °C, -40-55 °C
    • Ambient Air Temperature For Storage : -55-85 °C, -55-85 °C
    • Product Compatibility : plug-in relay RXM 2 C/O, plug-in relay RXM 4 C/O
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.7375908
    • Environmental Disclosure : ENVPEP1511020EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1511020EN
    • Pep Verification Date : 2023-01-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : socket
    • Range Of Product : Harmony Electromechanical Relays
  • ETIM
    • ETIM 8 : EC001456
    • ETIM 9 : EC001456
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, China, France
