SQUARE D

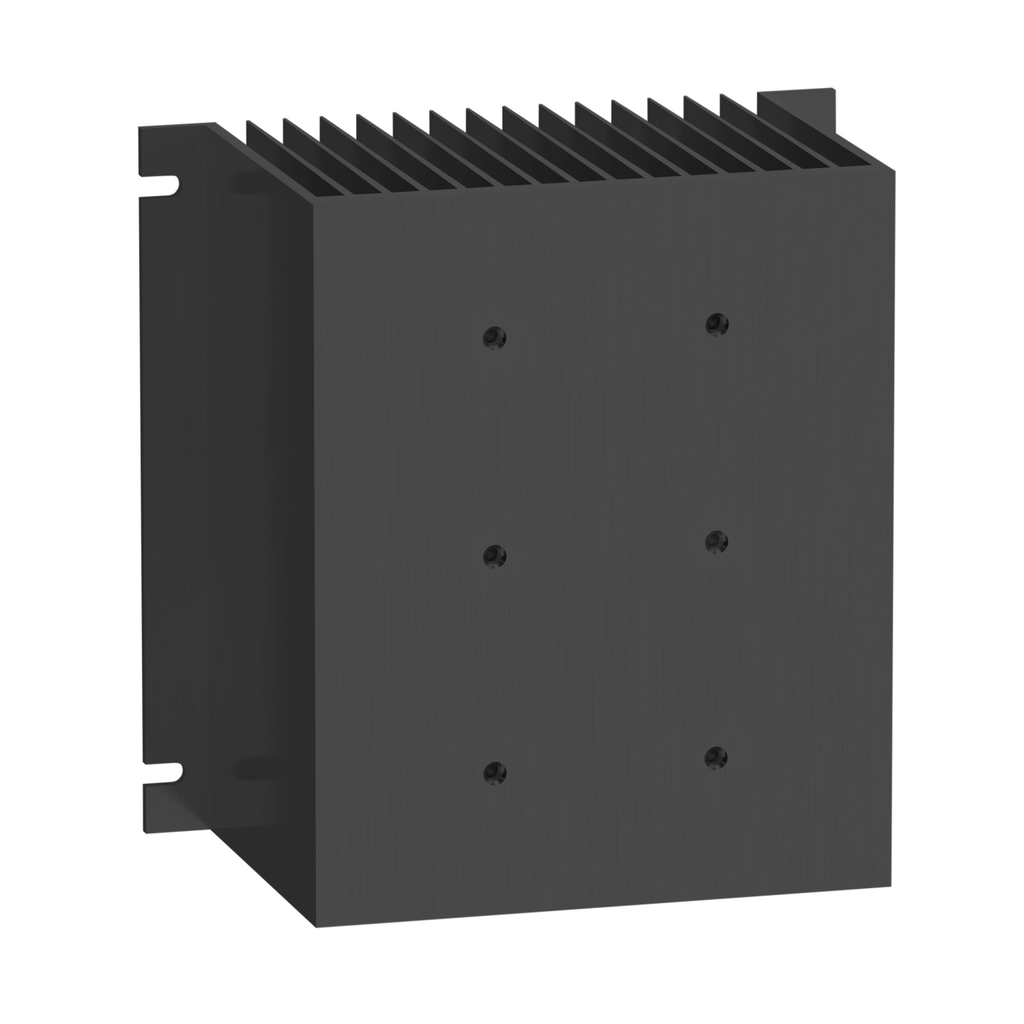

Solid State Relay, Harmony Relay, heat sink, panel mount, thermal resistance 0.5°C per watt

SSR Heat Sink Panel Mount 0.5

SQDSSRHP05 SSRHP05 3606480580222
108.87 / EA
http://schema.org/OutOfStock
Mayer-DDS-Solid State Relay, Harmony Relay, heat sink, panel mount, thermal resistance 0.5°C per watt-1
  • Depth: 88.9 mm
  • Material: Aluminum
  • Surface Finish: Black Anodized
Harmony SSP relays do not have any moving parts to wear out. Combined with vibration resistance, arc-less switching and the lack of acoustical noise, solid state relays are the ideal product for switching applications that demand reliable execution. Up to three SSP1 single phase or one SSP3 three hase solid state relays can be mounted on this heat sink. This heat sink is mounted directly to a panel. This heat sink has thermal resistance of 0.5 degrees centigrade per watt. Solid state relay is 6.00 inches tall, 6.00 inches wide and 3.50 inches deep. The relay weighs 3.17 lbs. The solid state relay is UL component recognized and CSA certified. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This heat sink is compatible with 1 solid state relay on panel. It supports panel mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.
QTY
  • Product Description
  • Features
  • Specifications
Harmony SSP relays do not have any moving parts to wear out. Combined with vibration resistance, arc-less switching and the lack of acoustical noise, solid state relays are the ideal product for switching applications that demand reliable execution. Up to three SSP1 single phase or one SSP3 three hase solid state relays can be mounted on this heat sink. This heat sink is mounted directly to a panel. This heat sink has thermal resistance of 0.5 degrees centigrade per watt. Solid state relay is 6.00 inches tall, 6.00 inches wide and 3.50 inches deep. The relay weighs 3.17 lbs. The solid state relay is UL component recognized and CSA certified. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This heat sink is compatible with 1 solid state relay on panel. It supports panel mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Medium Desc : Solid State Relay, Harmony Relay, heat sink, panel mount, thermal resistance 0.5°C per watt
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Material : aluminium
    • Mounting Support : panel
    • Number Of Mounting Holes : 6 UNC 8-32
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : heat sink
    • Range Of Product : Harmony Solid State Relays
    • Returnability : Yes
    • Surface And Useful Surface : 4406 cm²
    • Surface Finish : black anodized
    • Sustainable Packaging : Yes
    • Thermal Resistance : 0.5 °C/W
    • Tightening Torque : 1.7-2.2 N.m
    • Thermal Resistance Symb : 0.5 °C/W
    • Pep Code : ENVPEP1308009
    • Height Nominal : 152.4 mm
    • Width Nominal : 152.4 mm
  • Environment Attributes Main
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308009
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : 1 solid state relay SSR panel
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1308009
  • General Attributes
    • Product Or Component Type : heat sink
    • Range Of Product : Harmony Solid State Relays
  • ETIM
    • ETIM 8 : EC002586
    • ETIM 9 : EC002586
  • Specifications
    • Depth : 88.9 mm
