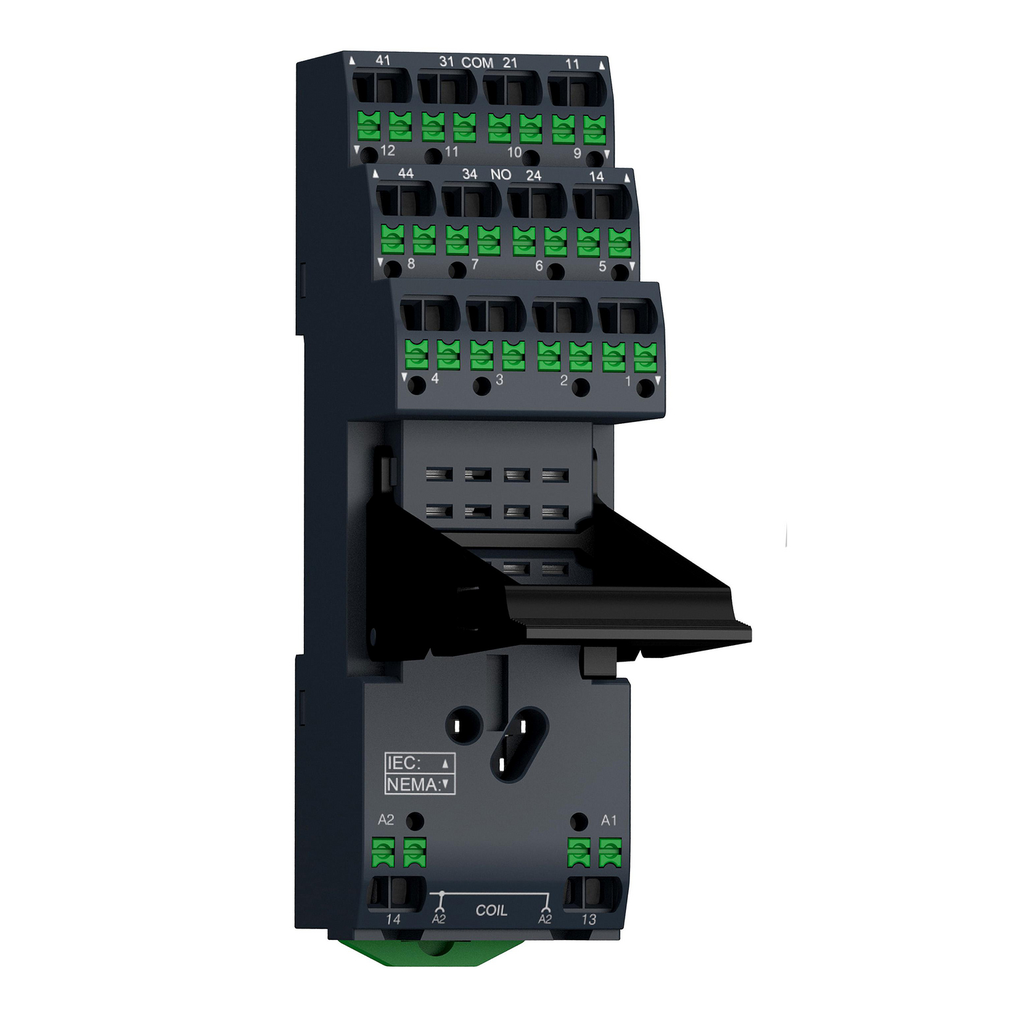

push in socket with clamp, Harmony Electromechanical Relays, for RXM relays, 12A 2CO, 6A 4CO, push in terminals, separate contact

HARMONY, PUSH-IN SOCKET WITH C

SQDRXZE14P RXZE14P 3606481465764
10.47 / EA
http://schema.org/OutOfStock
  • Dielectric Strength: 2500 V
  • Warranty Length: 18 mth
This Harmony RXZ range is a plug-in socket. It has a rated voltage of 250V AC with an output rating of 7A. It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere It is compatible with plug in control relay. It enables easy installation and connect to relay from its socket. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). This premium product conforms to international standard and certifications. This Push-in relay socket is compatible with interface plug-in relay RXM range.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony RXZ range is a plug-in socket. It has a rated voltage of 250V AC with an output rating of 7A. It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere It is compatible with plug in control relay. It enables easy installation and connect to relay from its socket. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). This premium product conforms to international standard and certifications. This Push-in relay socket is compatible with interface plug-in relay RXM range.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005025_3D-CAD&p_File_name=MCADID0005025_2D-top.dxf
  • Conformance Attributes
    • Product Certifications : CSA, Lloyd's, UL, EAC
    • Standards : IEC 61984
  • Complementary Attributes
    • Ue Rated Operational Voltage : 250 V IEC, 300 V UL
    • Line Rated Current : 12 A
    • Ui Rated Insulation Voltage : 250 V
    • Uimp Rated Impulse Withstand Voltage : 4 kV
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Range Of Product : Harmony Electromechanical Relays, Harmony Timer Relays
    • Connections Terminals : push-in terminals, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end
    • Ith Conventional Free Air Thermal Current : 12 A 2 C/O relays, 6 A 4 C/O relays
    • Carbon Footprint Of The Distribution Phase A4 : 0.0385583039, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.2168621908
    • Carbon Footprint Of The Installation Phase A5 : 0.0094852297, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.8 kg CO2 eq., 0.7776254417
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Medium Desc : push in socket with clamp, Harmony Electromechanical Relays, for RXM relays, 12A 2CO, 6A 4CO, push in terminals, separate contact
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-02-24
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Contact Terminal Arrangement : separate
    • Contacts Type And Composition : 4 C/O
    • Device Short Name : RXZ
    • Dielectric Strength : 2500 V
    • Fixing Mode : clip-on (35 mm symmetrical DIN rail)
    • Group Of Product : RXM_2-4_C/O_CON_SEP_FLAT
    • Marking : CE
    • Overvoltage Category : III
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : socket
    • Returnability : Yes
    • Shape Of Pin : flat
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1511020EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-01-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To allow users to connect and disconnect the plug of an electrical load or the source of a signal from a network; in which the variation of current in one electric circuit controls the flow of electricity in another circuit during 20 years with UL standards E70550.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; CN
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    • Height Nominal : 85 mm
    • Length Total : 98 mm
    • Width Nominal : 31 mm
  • Environment Attributes Main
    • Product Compatibility : plug-in relay RXM 2 C/O, plug-in relay RXM 4 C/O
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 1.0425311661
    • Ambient Air Temperature For Operation : -40-55 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Environmental Disclosure : ENVPEP1511020EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1511020EN
    • Pep Verification Date : 2023-01-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Range Of Product : Harmony Electromechanical Relays, Harmony Timer Relays
    • Product Or Component Type : socket
  • ETIM
    • ETIM 8 : EC001456
    • ETIM 9 : EC001456
  • Output Attributes
    • Output Type : relay
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Singapore, United States
