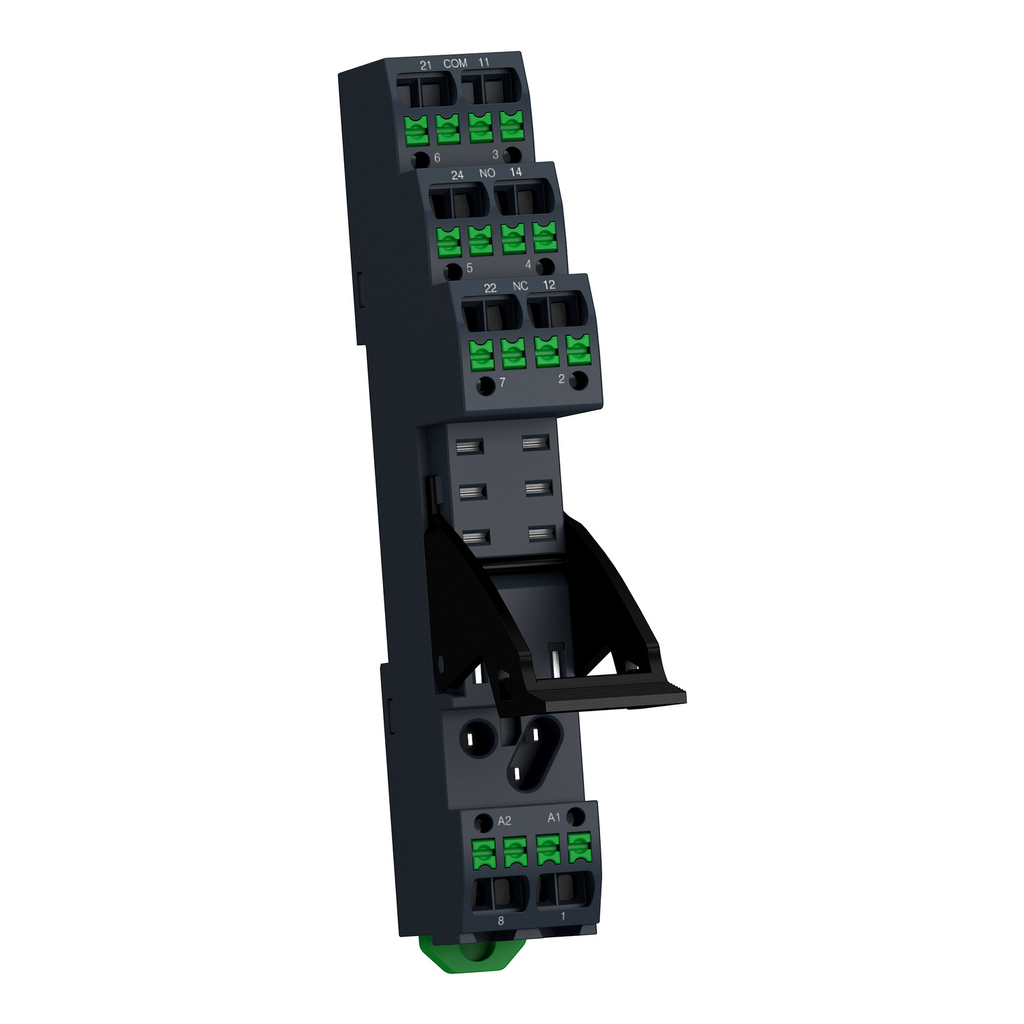

RGZ push-in relay socket is part of the Harmony Electromechanical relays range. This Harmony RGZ push-in relay socket has separate contact terminals. Its volatge is 5 A. It is compatible with all 2 C/O DPDT RXG relays. It also has a test button for easy debugging, testing and commissioning 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Ue Rated Operational Voltage : 250 V IEC, 300 V UL
• Uimp Rated Impulse Withstand Voltage : 6 kV between coil and contact with reinforced insulation, 4 kV between poles with basic insulation, 4 kV between terminals and DIN rail with basic insulation
• Line Rated Current : 5 A
• Ui Rated Insulation Voltage : 250 V
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Dielectric Strength : 5 kV between coil and contact with reinforced insulation, 3 kV between poles with basic insulation, 3 kV between terminals and DIN rail with basic insulation
• Connections Terminals : push-in terminals, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end
• Carbon Footprint Of The Distribution Phase A4 : 0.0054189462, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0064755539
• Carbon Footprint Of The Installation Phase A5 : 0.0003796343, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.4 kg CO2 eq., 0.4352798362
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Certificate Agency : CSA, UL, EAC, DNV-GL
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1951
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Contact Terminal Arrangement : separate
• Contacts Type And Composition : 2 C/O
• Device Short Name : RGZ
• Fixing Mode : clip-on (35 mm symmetrical DIN rail)
• Marking : CE
• Overvoltage Category : III
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• Returnability : Yes
• Shape Of Pin : flat
• Software Version : EIME v5.9.1
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.4 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP2502016EN
• Database Version : 2016-11
• Pep Verification Date : 2021-06-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : RGZ socket that can be mounted with RXG relays to facilitate electrical connection of relay and also to provide structural support to relay via attachment to DIN rail during 20 years with the following dimensions 73.3mm x 50.2 mm x 16 mm according to IEC 61984
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Energy model used: China
• Energy Model - Installation [A5] : Electricity mix; AC; 120V; US
• Energy Model - Use [B6] : Electricity mix; AC; 120V; US
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; 120V; US
• Offer Owner Code : 190786
• Pn : 1
• Height Nominal : 67 mm
• Length Total : 98 mm
• Width Nominal : 16 mm
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.4475539706
• Environmental Disclosure : ENVPEP2502016EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : plug-in relay RXG 2 C/O
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2502016EN
• Pep Verification Date : 2021-06-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• ETIM
• ETIM 8 : EC001456
• ETIM 9 : EC001456
• Specifications
• Country of Origin : Brazil, China, France, Singapore, United States
