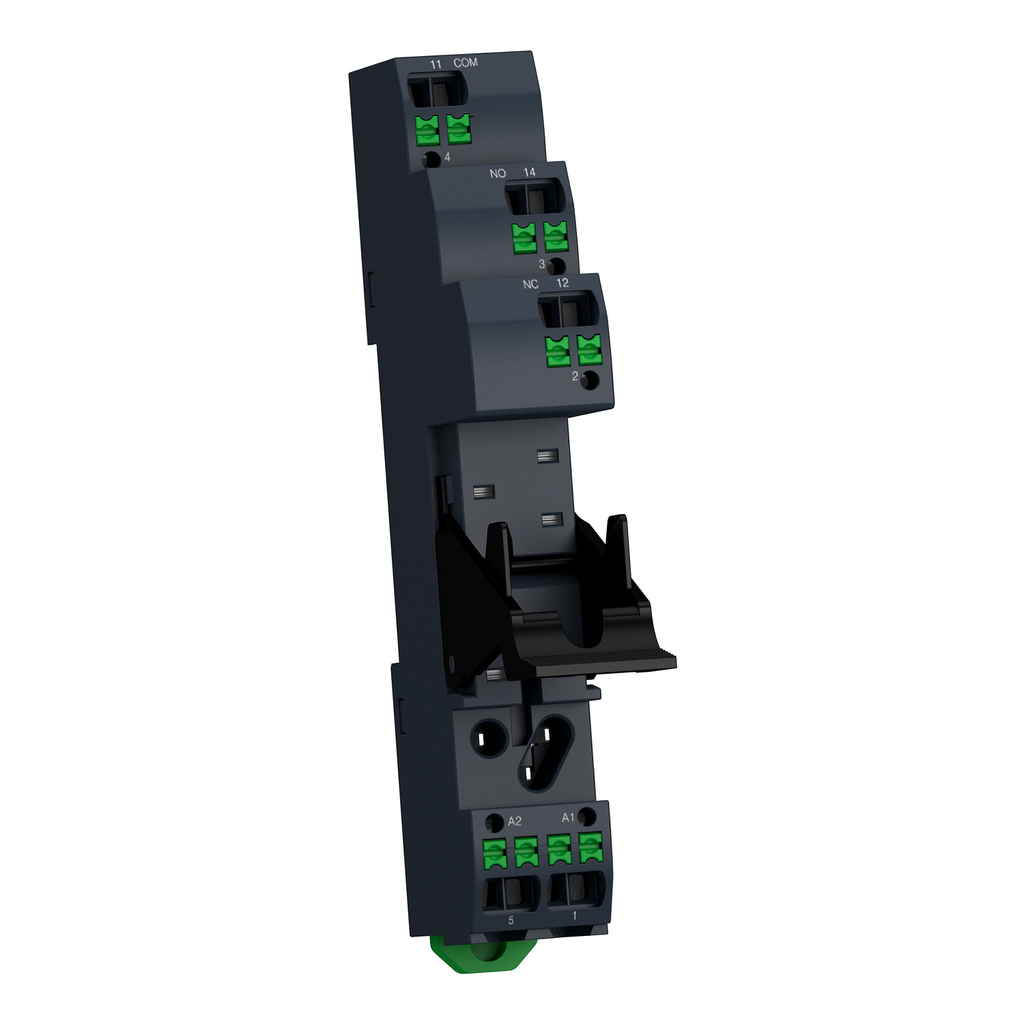

Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact

HARMONY, PUSH-IN SOCKET WITH C

SQDRSZE05P RSZE05P 3606481465733
11.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact-2
  • Country of Origin: China
  • Height: 2.36 in
  • Length: 3.86 in
  • Warranty Length: 18 mth
  • Width: 0.63 in
This Harmony RSZ range is a plug-in socket. This plug-in relay socket is compatible with interface plug-in relay RSB range. This product is for RSB1A relays. It is compatible with RSB with 1 C/O contact, 12A, RSB1A120 relays. It has a rated voltage of 25
QTY
  • Product Description
  • Features
  • Specifications
This Harmony RSZ range is a plug-in socket. This plug-in relay socket is compatible with interface plug-in relay RSB range. This product is for RSB1A relays. It is compatible with RSB with 1 C/O contact, 12A, RSB1A120 relays. It has a rated voltage of 25
  • Connections Terminals
    • spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end
    • spring clamp terminals (push 'n stay), 1 x 0.5...1
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Ue Rated Operational Voltage
    • 250 V IEC
    • 300 V UL
  • Accessories
    • RSB1A120JD
    • RSZR215
    • RZM040W
    • RSB1A120BD
    • RSZL300
    • RSZS02
    • RZM041FU7
    • RZM031RB
    • RSB1A120B7
    • RZM031BN
  • Fixing Mode
    • clip-on (35 mm symmetrical DIN rail)
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Product Compatibility
    • plug-in relay RSB with 1 C/O contact at 12 A
  • Product Certifications
    • CSA
    • UL
    • EAC
  • Conformance Attributes
    • Standards : IEC 61984
  • Complementary Attributes
    • Line Rated Current : 12:00 AM
    • Ui Rated Insulation Voltage : 250 V
    • Uimp Rated Impulse Withstand Voltage : 4 kV
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 7/8/2025
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1951
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : RSZ
    • Contact Terminal Arrangement : separate
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : RSZ
    • Marking : CE
    • Overvoltage Category : III
    • Package Weight Lbs : 32.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : socket
    • Range Of Product : Harmony Electromechanical Relays
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 10
    • Shape Of Pin : flat
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current : 12:00 AM
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : socket
    • Range Of Product : Harmony Electromechanical Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495748960&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-85 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Environmental Disclosure : ENVPEP2502016EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
    • Height : 2.36 in
    • Width : 0.63 in
    • Length : 3.86 in
