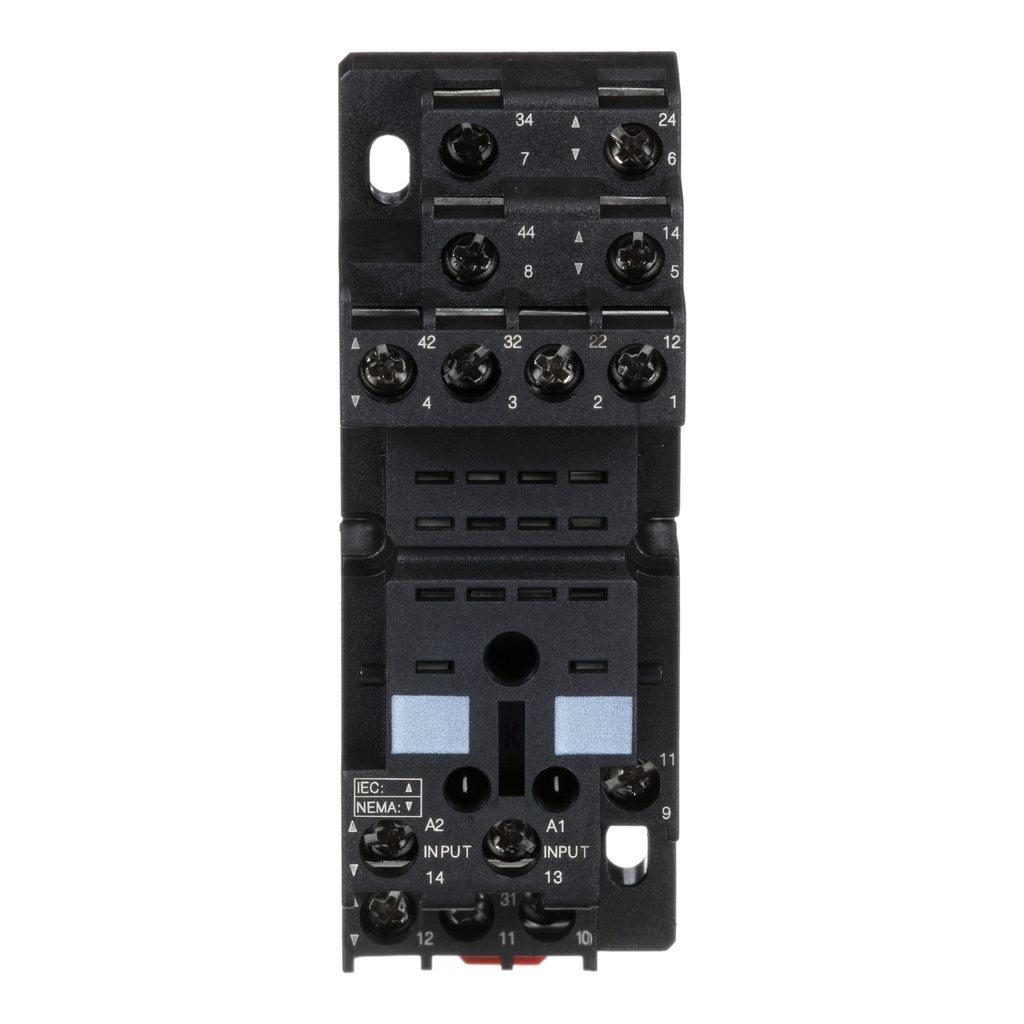

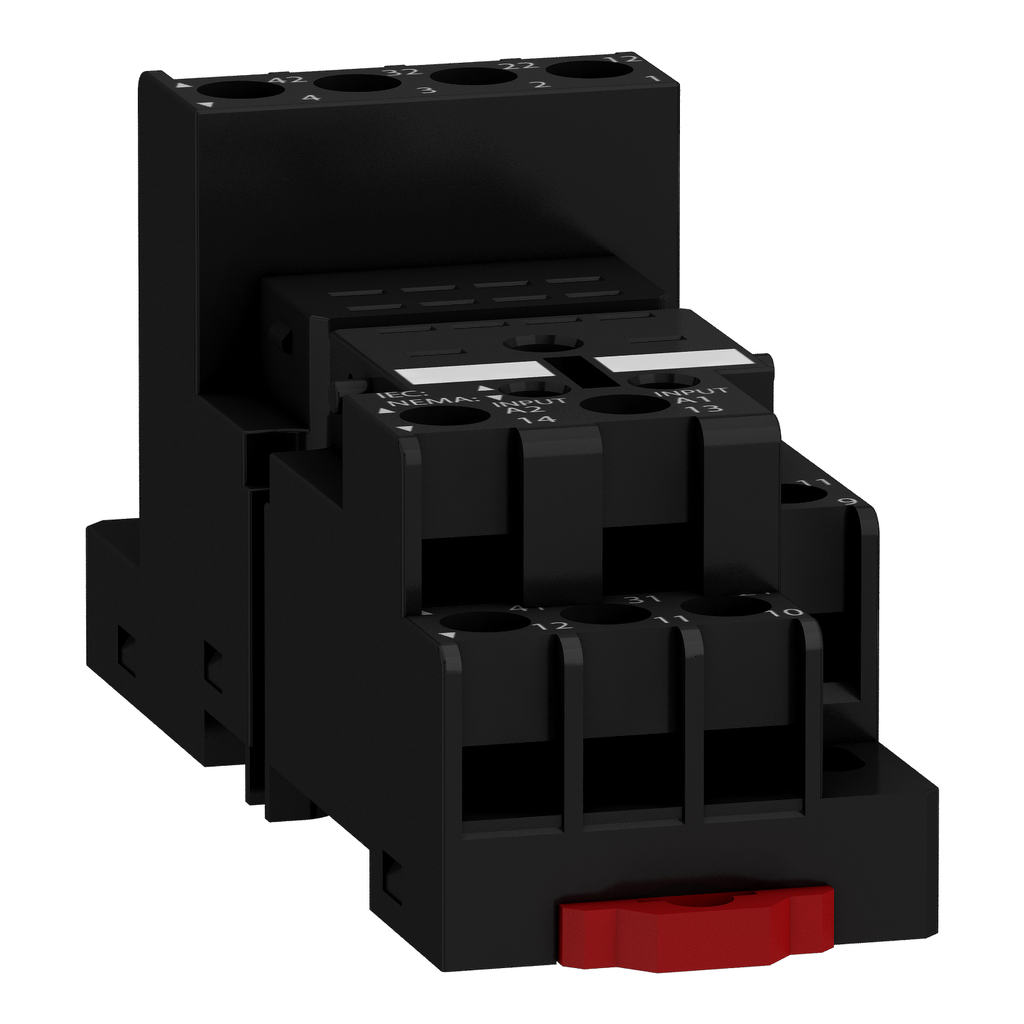

Harmony, plugin relay socket, mixed contact, 10 A, 250 V, screw clamp, for RXM2 or RXM4 relays

RELAY SOCKET 300V 10A RUZ +OPT

SQDRXZE2M114 RXZE2M114 3389119404242
9.22 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony, plugin relay socket, mixed contact, 10 A, 250 V, screw clamp, for RXM2 or RXM4 relays-1
  • Dielectric Strength: 2500 V
  • Warranty Length: 18 mth
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Wire Stripping Length : 8 mm
  • Complementary Attributes
    • Line Rated Current : 10 A
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Range Of Product : Harmony Electromechanical Relays, Harmony Timer Relays
    • Tightening Torque : < 1 N.m M3, < 1 N.m M3< 1 N.m M3, < 1 N.m M3
    • Certificate Agency : UL, CSA, Lloyd's
    • [Ue] Rated Operational Voltage : < 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL
    • Connections - Terminals : screw clamp terminals, screw clamp terminals, 1 x 0.34...1 x 1 mm² 22 AWG...17 AWG) flexible with cable end, screw clamp terminals, 2 x 0.34...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endscrew clamp terminals, 1 x 0.5...1 x 1.5 mm² 20 AWG...16 AWG) solid without cable end, screw clamp terminals, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
    • Carbon Footprint Of The Distribution Phase [A4] : 0.0231349823, 0 kg CO2 eq.
    • Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.1 kg CO2 eq., 0.1301173145
    • Carbon Footprint Of The Installation Phase [A5] : 0.0056911378, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.5 kg CO2 eq., 0.466575265
    • Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-26
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : RXZ
    • Contact Terminal Arrangement : mixed
    • Contacts Type And Composition : 4 C/O
    • Device Short Name : RXZ
    • Dielectric Strength : 2500 V
    • Fixing Mode : by screw (panel)clip-on (35 mm symmetrical DIN rail)
    • Group Of Product : RXM_2-4_C/O_SC_TER_MIX_FLAT
    • Marking : CE
    • Overvoltage Category : III
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : socket
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 10
    • Shape Of Pin : flat
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.6 kg CO2 eq.
    • Pep Code : ENVPEP2502014EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-01-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : To allow users to connect and disconnect the plug of an electrical load or the source of a signal from a network; in which the variation of current in one electric circuit controls the flow of electricity in another circuit during 20 years with UL standards E70550.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; CN
    • Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    • Recyclability Potential In % : 48
    • Width Nominal : 30 mm
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 56.000 g
    • Take-back : No
    • Warranty (In Months) : 18
    • Customs Code : 8536904000
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -40-55 °C, -40-55 °C
    • Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
    • Product Compatibility : plug-in relay REXL 4 C/Oplug-in relay RXM 2 C/O, plug-in relay RXM 4 C/O, plug-in relay 782H 4 C/O, plug-in relay REXL 2 C/O
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.6255186996
    • Environmental Disclosure : ENVPEP2502014EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2502014EN
    • Pep Verification Date : 2023-01-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Range Of Product : Harmony Electromechanical Relays, Harmony Timer Relays
    • Product Or Component Type : socket
  • ETIM
    • ETIM 8 : EC001456
    • ETIM 9 : EC001456
  • Output Attributes
    • Output Type : relay
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, China, France, Mexico, Singapore, United States
