SQUARE D

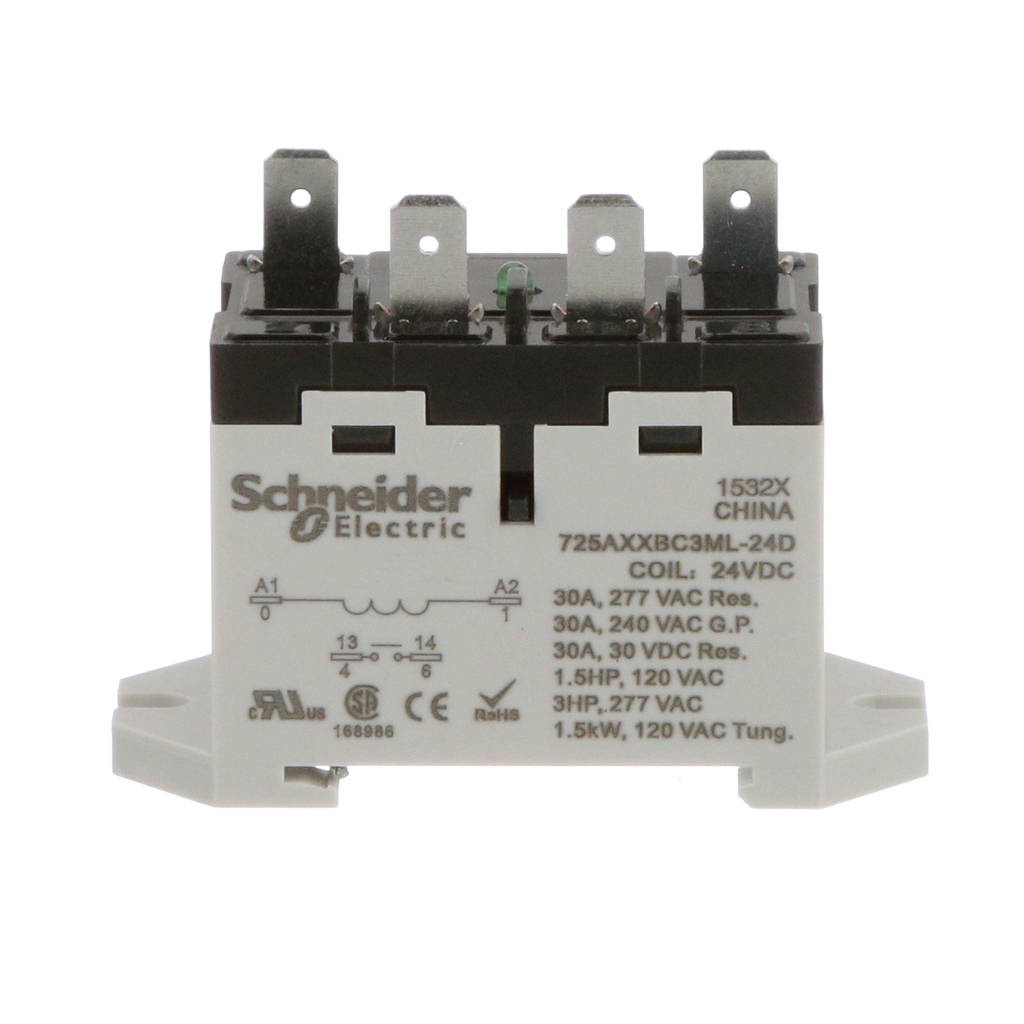

Power relay, SE Relays, 30A, 1NO, 24VDC, LED push button, blade terminals, DIN or panel mount

POWER RELAY

SQD725AXXBC3ML24D 725AXXBC3ML24D 3606480278778
19.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Power relay, SE Relays, 30A, 1NO, 24VDC, LED push button, blade terminals, DIN or panel mount-1
  • Country of Origin: China
  • Depth: 49.4 mm
  • Dielectric Strength: 4000 V
  • Input Voltage: ...26.4 V
This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with Flat (Faston type) terminals supporting DIN rail or Panel mounting. It’s a 30A 1 NO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 300Ω. The multiple mounting options increases functionality and ease-of-use. It has a side-mounted spring return pushbutton for testing the contacts. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
QTY
  • Product Description
  • Features
  • Specifications
This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with Flat (Faston type) terminals supporting DIN rail or Panel mounting. It’s a 30A 1 NO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 300Ω. The multiple mounting options increases functionality and ease-of-use. It has a side-mounted spring return pushbutton for testing the contacts. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Wire Stripping Length : 8 mm
  • Complementary Attributes
    • Maximum Switching Voltage : 240 V CE, 277 V UL
    • Rated Power In Hp : 3 hp 277 V AC, 1.5 hp 120 V AC
    • Ie Rated Operational Current : 30 A at 277 V AC (on resistive load) conforming to UL, 30 A at 240 V AC (general purpose) conforming to UL, 30 A at 30 V DC (on resistive load) conforming to UL, 30 A at 240 V AC (on resistive load) conforming to IEC, 30 A at 28 V DC (on resistive load) conforming to IEC
    • Line Rated Current : 30 A
    • Maximum Resistance : 300 Ohm
    • Minimum Switching Current : 100 mA 5 V DC
    • Rated Power In W : 1.5 kW 120 V tungsten
    • Uc Control Circuit Voltage : 24 V
  • Important Information Attributes
    • Mounting Support : DIN rail, flange
    • Connections Terminals : quick-connect terminal, quick-connect terminal strips 6.35 x 0.8 mm
    • Ie Rated Operational Current : 30 A at 277 V AC (on resistive load) conforming to UL, 30 A at 240 V AC (general purpose) conforming to UL, 30 A at 30 V DC (on resistive load) conforming to UL, 30 A at 240 V AC (on resistive load) conforming to IEC, 30 A at 28 V DC (on resistive load) conforming to IEC
    • Certificate Agency : UL, CSA, CE
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Kit Identifier : N
    • Associated Fuse Rating : 32 A gG at 400 V coordination type 2 for power circuit
    • Average Coil Consumption : 1.90 W
    • Average Impedance : 2 mOhm
    • Catalog Class : 725
    • Contacts Material : silver alloy contacts
    • Contacts Type And Composition : 1 NO
    • Control Type : test button
    • Dielectric Strength : 4000 V AC between coil and contact
    • Drop Out Voltage Threshold : DC
    • Electrical Durability : 100000 cycles resistive IEC
    • Local Signalling : LED indicator test button
    • Mechanical Durability : 5000000 cycles
    • Network Frequency : 50/60 Hz
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : DIN rail/panel mount relay
    • Range Of Product : Harmony Electromechanical Relays
    • Response Time : 30 ms
    • Returnability : Yes
    • Series Name : Power
    • Short Circuit Current : 3 kA
    • Sustainable Packaging : No
    • Warranty In Months : 18
    • Offer Owner Code : 190786
    • Pn : 1
    • Height Nominal : 67.7 mm
    • Width Nominal : 34.9 mm
  • Environment Attributes Main
    • Reach Free Shvc : Yes
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -20-55 °C
    • Ambient Air Temperature For Storage : -55-100 °C
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : DIN rail/panel mount relay
    • Range Of Product : Harmony Electromechanical Relays
  • ETIM
    • ETIM 8 : EC002057
    • ETIM 9 : EC002057
  • Input Attributes
    • Input Voltage : 19.2...26.4 V DC
  • Specifications
    • Country of Origin : China
    • Depth : 49.4 mm
