SQUARE D

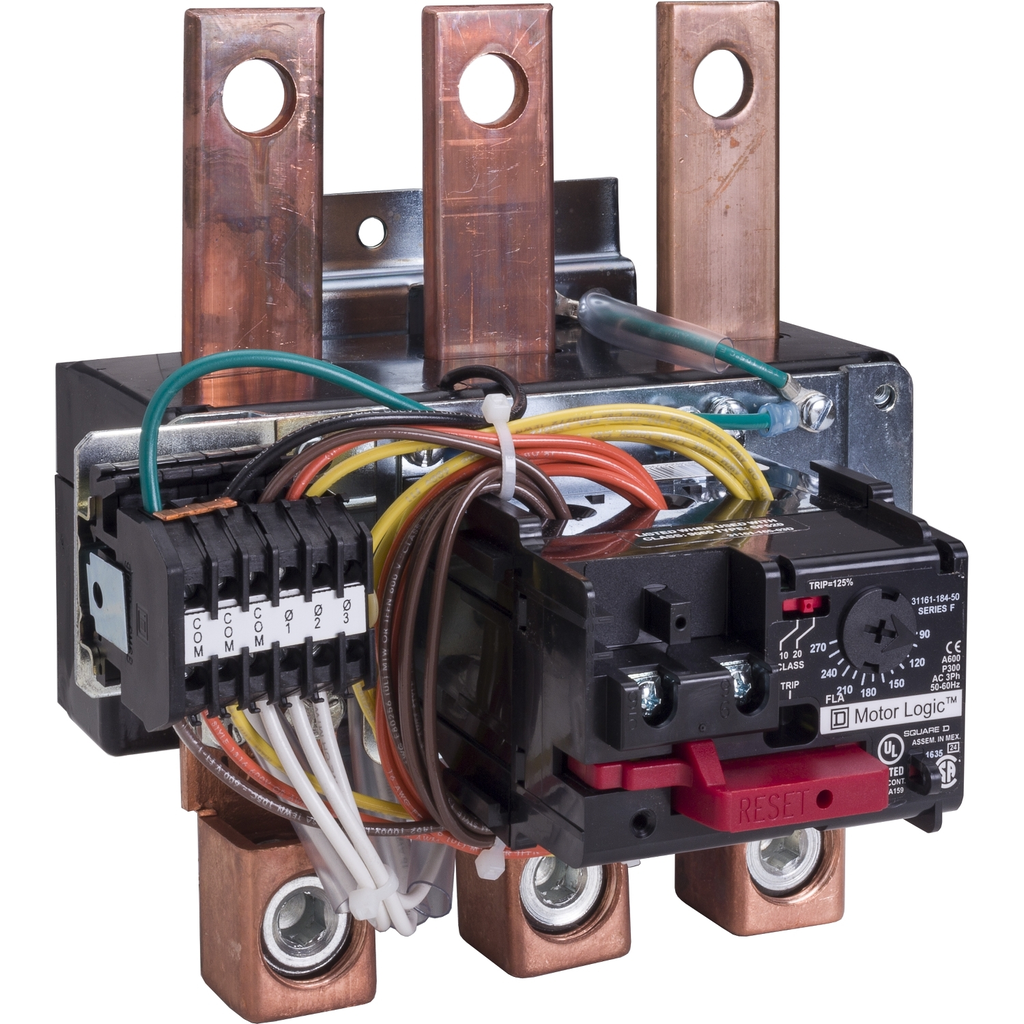

Overload Relay, Motor Logic, solid state overload relay, NEMA Size 5, 3 pole, 90A to 270A, 600VAC, separate mount

STATE SOLID OVERLOAD RELAY 600

SQD9065SF520 9065SF520 785901166542
1074.63 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Overload Relay, Motor Logic, solid state overload relay, NEMA Size 5, 3 pole, 90A to 270A, 600VAC, separate mount-1
  • Depth: 187.5 mm
  • Height: 209.6 mm
  • NEMA: 5
  • Number of Phases: 3
  • Warranty Length: 18 mth
  • Width: 196.9 mm
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 5 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 90A to 270A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. This overload relay is 8.25 inches tall, 7.75 inches wide and 7.38 inches deep. Motor Logic SSOLR are UL listed and CSA certified.
QTY
  • Product Description
  • Specifications
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 5 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 90A to 270A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. This overload relay is 8.25 inches tall, 7.75 inches wide and 7.38 inches deep. Motor Logic SSOLR are UL listed and CSA certified.
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : ENVEOLI1312002EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1312002EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Height : 209.6 mm
    • Nema Size : 5
    • Mounting Support : panel
    • Width : 196.9 mm
    • Depth : 187.5 mm
    • Phase : 3 phase
    • [Ue] Rated Operational Voltage : 600 V AC
  • Specifications
    • Thermal Overload Type : solid state
    • Range Of Product : Motor Logic
