Overload Relay, Type S, melting alloy, replacement overload, NEMA size 4, 3 pole, 3 phase, 135A, 600VAC

MELTING ALLOY O/L RELAY NEMA 6

SQD9065SDO15 9065SDO15 785901850809
437.28 / EACH
http://schema.org/OutOfStock

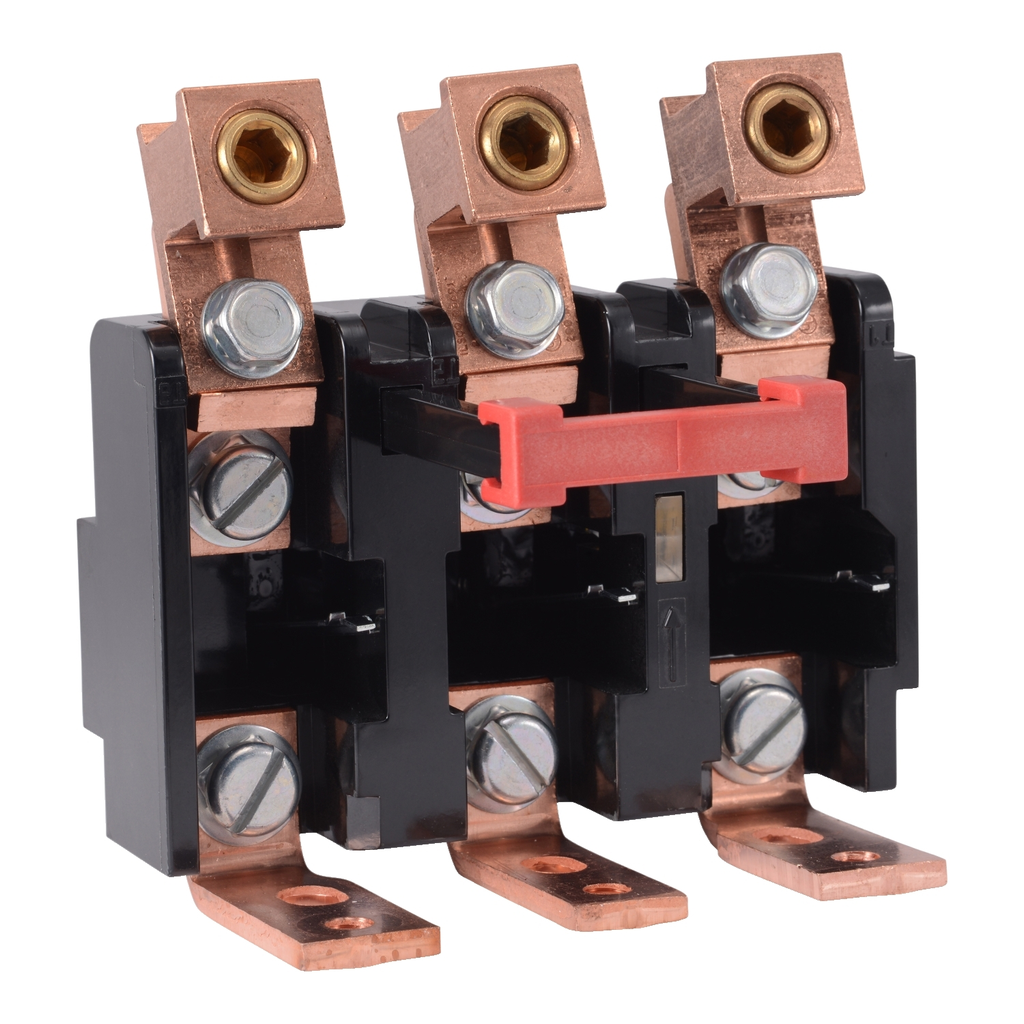

Mayer-DDS-Overload Relay, Type S, melting alloy, replacement overload, NEMA size 4, 3 pole, 3 phase, 135A, 600VAC-1
  • Country of Origin: USA
  • Depth: 145.8 mm
  • Height: 177 mm
  • Warranty Length: 18 mth
  • Width: 134.9 mm
Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This replacement overload relay for a Type S NEMA size 4 three phase starters with 3 poles. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. The output contact is replaceable. Relay has a maximum voltage rating of 600 VAC. This overload relay is 6.97 inches tall, 5.31 inches wide and 5.74 inches deep.
QTY
  • Product Description
  • Features
  • Specifications
Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This replacement overload relay for a Type S NEMA size 4 three phase starters with 3 poles. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. The output contact is replaceable. Relay has a maximum voltage rating of 600 VAC. This overload relay is 6.97 inches tall, 5.31 inches wide and 5.74 inches deep.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Take-Back : No
    • Eu Rohs Directive : Not compliant
  • Complementary
    • Height : 177 mm
    • Nema Size : 4
    • Mounting Support : mounting plate
    • Phase : 3 phase
    • Number Of Thermal Units Required : 3
    • Width : 134.9 mm
    • Depth : 145.8 mm
    • [Ue] Rated Operational Voltage : 600 V AC
  • Contractual warranty
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Width : 134.9 mm
    • Height : 177 mm
    • Thermal Overload Type : melting alloy
    • Product Destination : starter
    • Range Of Product : Replacement Relay
