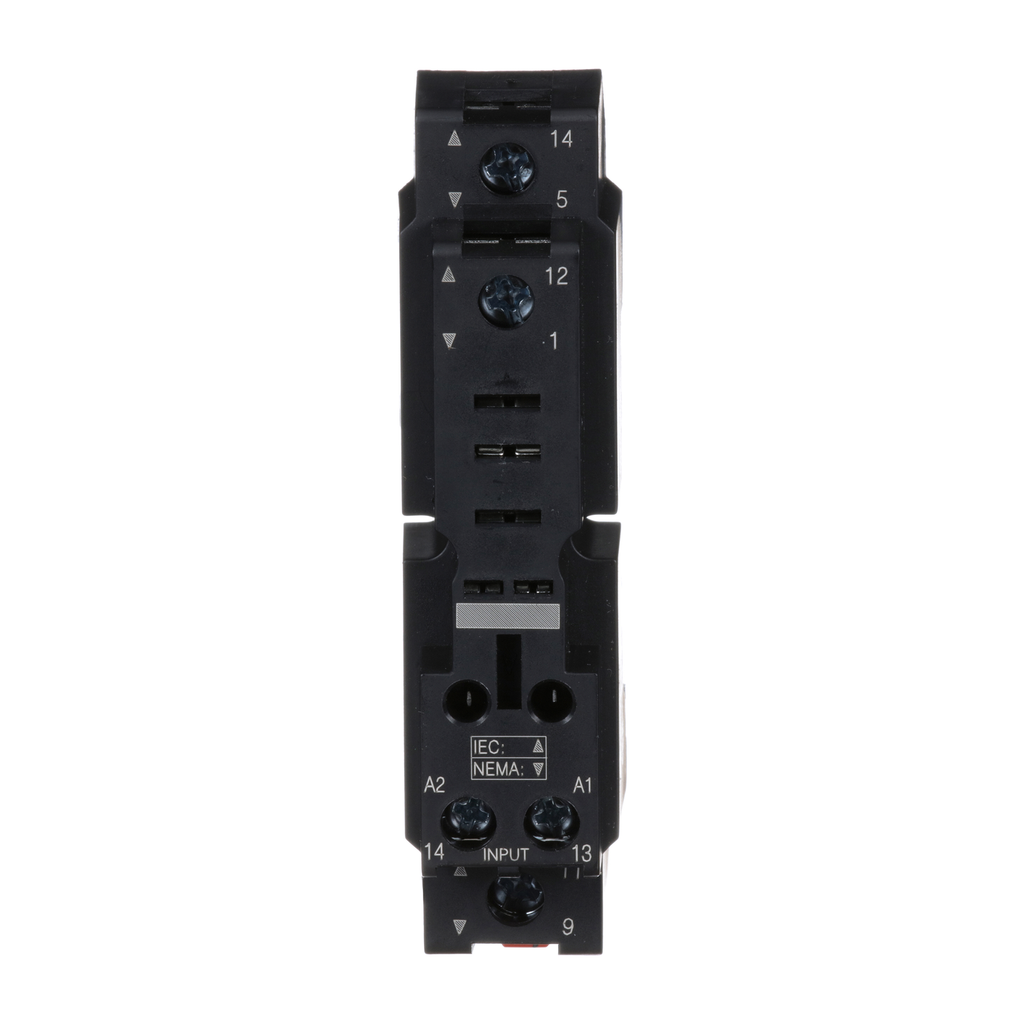

Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays

PLUG-IN RELAY 250V 15A RPM +OP

SQDRPZF1 RPZF1 3389119402286
7.93 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays-1
  • Dielectric Strength: 2500 V
  • Warranty Length: 18 mth
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Line Rated Current : 16 A
    • Ue Rated Operational Voltage : 250 V
    • Uimp Rated Impulse Withstand Voltage : 4 kV
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Fixing Mode : by screw (panel), clip-on (35 mm symmetrical DIN rail)
    • Tightening Torque : < 1 N.m M3.5, < 1 N.m M3.5, < 0.8 N.m M3, < 0.8 N.m M3, < 1 N.m M3.5, < 1 N.m M3.5, < 0.8 N.m M3, < 0.8 N.m M3
    • Connections Terminals : contact terminal - screw clamp terminals, 1 wire flexible with cable end 0.5...2.5 mm² / AWG 20...AWG 14, coil terminal - screw clamp terminals, 1 wire solid without cable end 0.5...2.5 mm² / AWG 20...AWG 14, coil terminal - screw clamp terminals, 1 wire flexible with cable end 0.5...1.5 mm² / AWG 20...AWG 16, screw clamp terminals, contact terminal - screw clamp terminals, 2 wires solid without cable end 0.5...4 mm² / AWG 20...AWG 12, contact terminal - screw clamp terminals, 1 wire solid without cable end 0.5...4 mm² / AWG 20...AWG 12, contact terminal - screw clamp terminals, 2 wires flexible with cable end 0.5...2.5 mm² / AWG 20...AWG 14, coil terminal - screw clamp terminals, 2 wires solid without cable end 0.5...2.5 mm² / AWG 20...AWG 14, coil terminal - screw clamp terminals, 2 wires flexible with cable end 0.5...1.5 mm² / AWG 20...AWG 16
    • Carbon Footprint Of The Distribution Phase A4 : 0.0046291, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0034384
    • Carbon Footprint Of The Installation Phase A5 : 0.00027513, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.34488
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Certificate Agency : CSA, UL, EAC, CE
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-26
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : RPZ
    • Contact Terminal Arrangement : mixed
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : RPZ
    • Dielectric Strength : 2500 V
    • Group Of Product : RPM_1_C/O_SC_TER_MIX_FLAT
    • Overvoltage Category : III
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : socket
    • Range Of Product : Harmony Electromechanical Relays
    • Returnability : Yes
    • Software Version : EIME v5.8.1
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.4 kg CO2 eq.
    • Ith Conventional Free Air Thermal Current : 16 A
    • Warranty In Months : 18
    • Pep Code : ENVPEP2506024EN
    • Database Version : 2016-11
    • Pep Verification Date : 2020-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional Unit Description : RPZF1 is a socket that can be mounted with RPM1 plug in relays and protect persons during 20 years with the following dimensions 80mm x 31mm x 21mm.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y2 : 20
    • Energy Model Manufacturing A1 A3 2 : Energy model used: China
    • Energy Model Installation A5 2 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Recyclability Potential In 2 : 91
    • Offer Owner Code : 190786
    • Pn : 1
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 2 : 3.1901
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 5.4453
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 5.3317
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 2 : 5.5728
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 0.6245
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 0.6245
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 4.8208
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 4.7072
    • Air Pollution M3 Manufacturing A1 A3 2 : 54.111
    • Air Pollution M3 End Of Life C1 C4 2 : 0.3172
    • Water Pollution M3 Total Life Cycle2 : 14.573
    • Water Pollution M3 Manufacturing A1 A3 2 : 13.419
  • Environment Attributes Main
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.35322
    • Ambient Air Temperature For Operation : -40-55 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Environmental Disclosure : ENVPEP2506024EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : plug-in relay RPM 1 C/O
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506024EN
    • Pep Verification Date : 2020-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : socket
    • Range Of Product : Harmony Electromechanical Relays
  • ETIM
    • ETIM 8 : EC001456
    • ETIM 9 : EC001456
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, China, France, Singapore, United States
