Plug In Relay, Harmony Relay, power, 15A at 277VAC, 2CO contacts, 24VAC 50/60HZ coil, LED

PLUG-IN RELAY 250V 15A RPM + L

SQDRPM23B7 RPM23B7 3389119217972
9.01 / EA
http://schema.org/OutOfStock

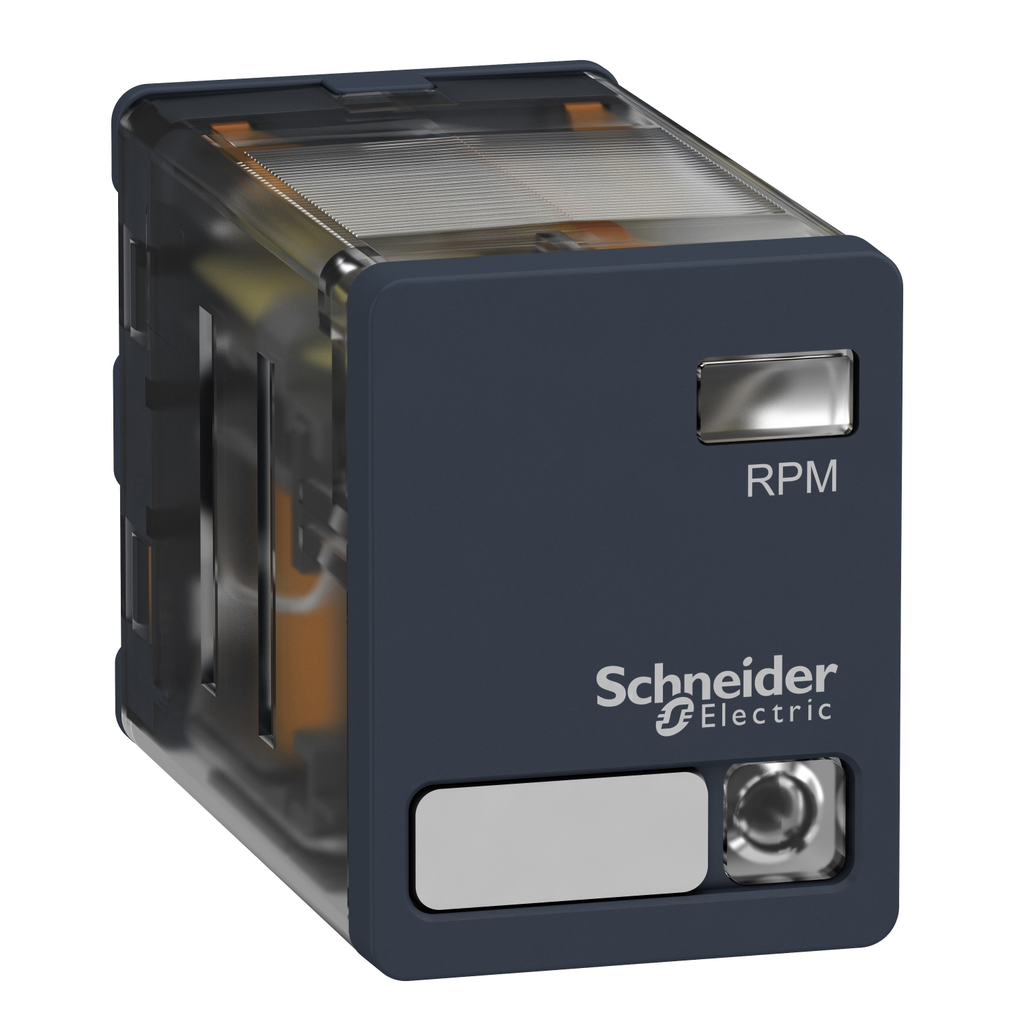

Mayer-DDS-Plug In Relay, Harmony Relay, power, 15A at 277VAC, 2CO contacts, 24VAC 50/60HZ coil, LED-1
  • Country of Origin: China
  • Depth: 39 mm
  • Dielectric Strength: 1500 V, 2000 V
  • Height: 27 mm
  • Net Weight: 0.036 kg
  • Operating Position: Any Position
  • Warranty Length: 18 mth
  • Weight: 0.036 kg
  • Width: 21 mm
The RPM range of power relays has relays from 1 to 4 poles with 15A contact rating. There is a good selection of relays sockets and accessories to choose from. This 2 pole relay has two CO contacts. Each contact has a common point and one normally ope and one normally closed contact. Contacts have UL operational current ratings of 15 A at 277 Vac and 15 A at 28 VDC. This relay is designed to be pluged into a relay socket. All wiring is connect to the relay socket terminals. Relay has a 24 VAC 50/60 Hz coil. This relay has a bipolar LED to indicate the relay status. Relay is UL Listed when a RPZ relay socket is used. Relay is also CSA certified. Transient protection modules and hold down clips are available for this relay. Relay is UL Listed when a RPZ relay socket is used. Relay is also CSA certified. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.
QTY
  • Product Description
  • Features
  • Specifications
The RPM range of power relays has relays from 1 to 4 poles with 15A contact rating. There is a good selection of relays sockets and accessories to choose from. This 2 pole relay has two CO contacts. Each contact has a common point and one normally ope and one normally closed contact. Contacts have UL operational current ratings of 15 A at 277 Vac and 15 A at 28 VDC. This relay is designed to be pluged into a relay socket. All wiring is connect to the relay socket terminals. Relay has a 24 VAC 50/60 Hz coil. This relay has a bipolar LED to indicate the relay status. Relay is UL Listed when a RPZ relay socket is used. Relay is also CSA certified. Transient protection modules and hold down clips are available for this relay. Relay is UL Listed when a RPZ relay socket is used. Relay is also CSA certified. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : EAC || CSA || UL
    • Standards : CSA C22.2 No 14 || UL 508 || IEC 61810-1
    • Average Coil Consumption In Va : 1.1 60 Hz
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Shock Resistance : 15 gnin operation || 30 gnnot operating
    • Pollution Degree : 3
    • Ambient Air Temperature For Storage : -40-85 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1406038EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 14.2731224848
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.3540445376
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 15 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.004961606
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 14.6370228793
  • Complementary
    • Utilisation Coefficient : 20 %
    • Maximum Switching Capacity : 3750 VA || 420 W
    • Safety Reliability Data : B10d = 100000
    • Height : 27 mm
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • Protection Category : RT I
    • Test Levels : level A group mounting
    • Mounting Support : plug-in
    • Electrical Durability : 100000 cycles resistive
    • Contacts Material : AgNi
    • Shape Of Pin : flat (faston type)
    • Dielectric Strength : 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
    • Net Weight : 0.036 kg
    • Maximum Switching Voltage : 250 V IEC
    • Ip Degree Of Protection : IP40 conforming to IEC 60529
    • Control Type : without lockable test button
    • Device Presentation : complete product
    • Rated Operational Voltage Limits : 19.2...26.4 V AC
    • [Ie] Rated Operational Current : 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Mechanical Durability : 10000000 cycles
    • Operating Position : any position
    • Width : 21 mm
    • Drop-Out Voltage Threshold : >= 0.15 Uc AC
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
    • Depth : 39 mm
  • Specifications
    • Country of Origin : China
    • Width : 21 mm
    • Height : 27 mm
    • Weight : 0.036 kg
    • [Uc] Control Circuit Voltage : 24 V AC 50/60 Hz
    • Range Of Product : Harmony Electromechanical Relays
    • Ambient Air Temperature For Operation : -40-55 °C
    • Product Or Component Type : plug-in relay
    • Status Led : with
    • Reset Time : 20 ms at nominal voltage
    • Series Name : RPM series
    • Contacts Type And Composition : 2 C/O
    • Relay Type : power relay
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • [Ithe] Conventional Enclosed Thermal Current : 15 A -40-55 °C
