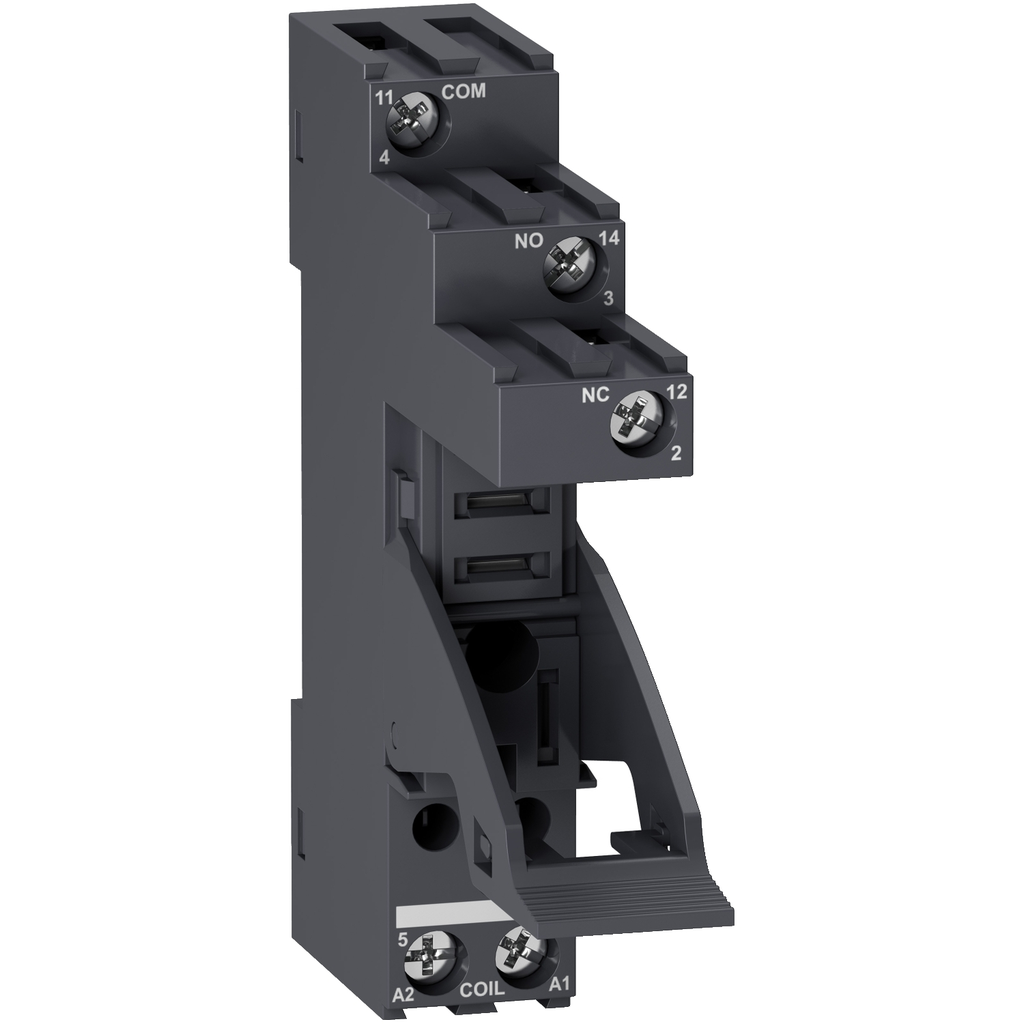

This Harmony RGZ timing relay socket has separate contact terminals. "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 1 C/O SPDT RXG relays." "Simple relay retention via clamp allows quick

• Connections Terminals
• screw terminals, 1 x 0.34...2 x 1.5 mm² AWG 22...AWG 14) flexible with cable end
• screw termi
• Uimp Rated Impulse Withstand Voltage
• 6 kV between coil and contact with reinforced insulation
• 4 kV between terminals and DIN rail with basic insulation
• 4 kV between terminals an
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Carbon Footprint Of The Installation Phase A5
• 0.0002901491
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0049491733
• Standards
• UL 508
• CSA C22.2 No 14
• IEC 61984
• Ue Rated Operational Voltage
• 250 V IEC
• 300 V UL
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.3 kg CO2 eq.
• 0.3326781605
• Accessories
• RXG15BD
• RXG15P7
• RXG13JD
• RXG13BD
• RXG13B7
• RXG13F7
• RXG13P7
• RXG11BD
• RXG11B7
• RXG11F7
• Fixing Mode
• clip-on (35 mm symmetrical DIN rail)
• screw (panel)
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Dielectric Strength
• 5 kV between coil and contact with reinforced insulation
• 3 kV between terminals and DIN rail with basic insulation
• 3 kV between terminals an
• Carbon Footprint Of The Distribution Phase A4
• 0.0041416232
• 0 kg CO2 eq.
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Compatibility
• plug-in relay RXG 1 C/O
• Product Certifications
• CE
• EAC
• UL
• CSA
• DNV-GL

• Physical Attributes
• Wire Stripping Length : 6-7 mm
• Complementary Attributes
• Line Rated Current : 10 A
• Ui Rated Insulation Voltage : 250 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-04
• Html Descr : Zelio Relay SocketContact Terminal Arrangement: SeparateRated Current: 10ARated Insulation Voltage: 250VRated Impulse Withstand Voltage: 6kVDegree of Protection: IP20
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 0.3326781605
• Distribution Carbon Footprint : 0.0041416232
• Installation Carbon Footprint : 0.0002901491
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.0049491733
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Contact Terminal Arrangement : separate
• Contacts Type And Composition : 1 C/O
• Overvoltage Category : III
• Package Weight Lbs : 36.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• Returnability : Yes
• Screw Type : M3
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.3420591061
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : socket
• Range Of Product : Harmony Electromechanical Relays
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=395923162&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.3420591061
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Environmental Disclosure : ENVPEP2502016EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 10-85 %
• Specifications
• Country of Origin : China
