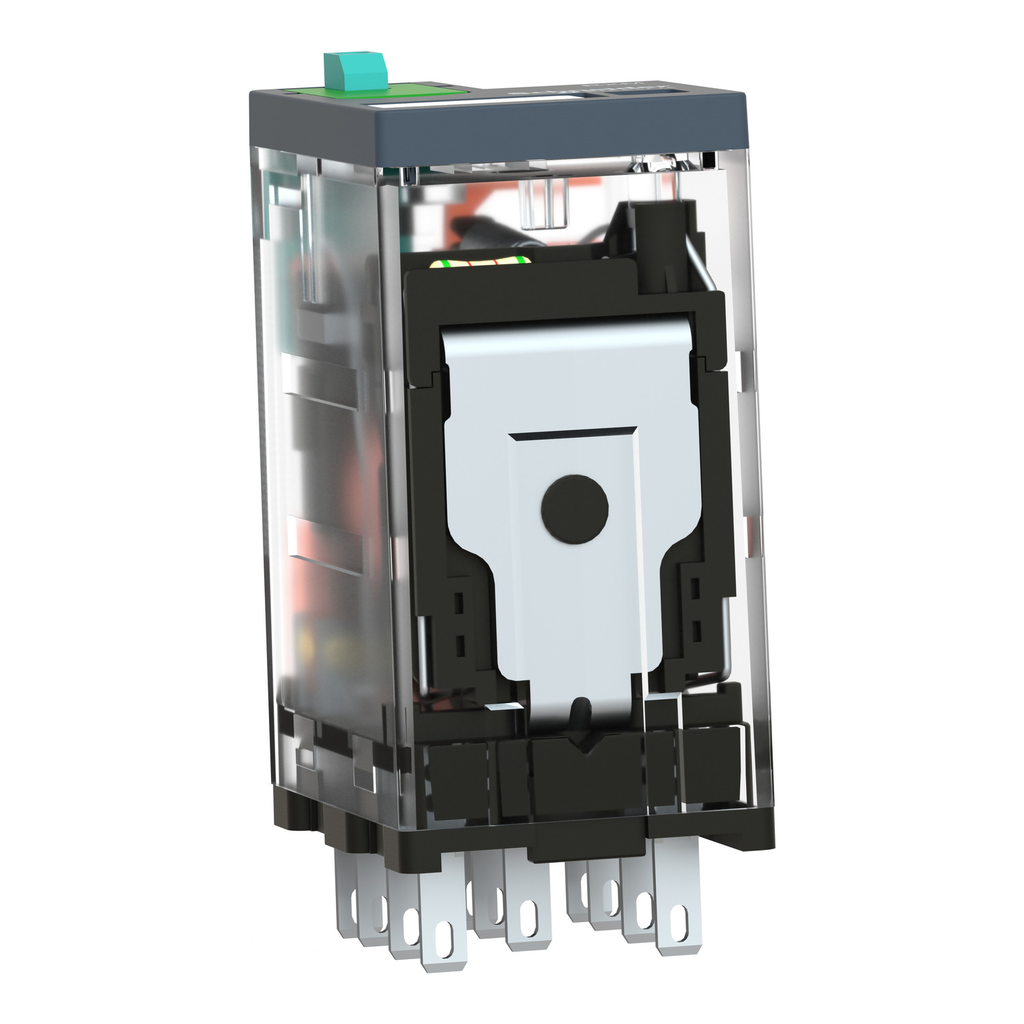

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
• Standards : IEC 61810-1 || CSA C22.2 No 14 || UL 508
• Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• Shock Resistance : 10 gnin operation || 30 gnnot operating
• Ambient Air Temperature For Operation : -40-55 °C
• Ip Degree Of Protection : IP40 conforming to IEC 60529
• Ambient Air Temperature For Storage : -40-85 °C
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc : Yes
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.2927376966
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 4 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 3.7229960631
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2106019EN
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.0002262618
• Circularity Profile : ENVEOLI2106019EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 3.4204182975
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
• Protection Category : RT I
• Test Levels : level A group mounting
• Reset Time : 20 ms
• Dielectric Strength : 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
• Net Weight : 0.037 kg
• Maximum Switching Voltage : 250 V IEC
• Rated Operational Voltage Limits : 19.2...26.4 V DC
• [Ie] Rated Operational Current : 10 A 28 V DC) NO IEC || 10 A 250 V AC) NO IEC || 5 A 28 V DC) NC IEC || 5 A 250 V AC) NC IEC || 10 A 30 V DC) UL || 10 A 277 V AC) UL
• [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
• Operating Time : 20 ms
• Minimum Switching Capacity : 170 mW 10 mA, 17 V
• Cad Overall Depth : 80.35 mm
• Utilisation Coefficient : 20 %
• Maximum Switching Capacity : 2500 VA/280 W
• Safety Reliability Data : B10d = 100000
• Contacts Material : AgNi
• Pollution Degree : 2
• Shape Of Pin : flat (faston type)
• Cad Overall Height : 82.8 mm
• Average Resistance : 650 Ohm 20 °C +/- 10 %
• Device Presentation : complete product
• Average Coil Consumption : 0.9 W
• Electrical Durability : 100000 cycles resistive
• Mechanical Durability : 10000000 cycles
• Compatibility Code : RXM
• Operating Position : any position
• Load Current : 10 A 250 V AC || 10 A 28 V DC
• Drop-Out Voltage Threshold : >= 0.1 Uc
• [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
• Specifications
• Country of Origin : China
• Height : 82.8 mm
• Weight : 0.037 kg
• [Uc] Control Circuit Voltage : 24 V DC
• Continuous Output Current : 6.7 A
• Product Or Component Type : plug-in relay
• Status Led : with
• Series Name : RXM series
• Contacts Type And Composition : 3 C/O
• [Ithe] Conventional Enclosed Thermal Current : 10 A
• Range Of Product : Harmony Electromechanical Relays
• Control Type : lockable test button
• Relay Type : miniature relay
