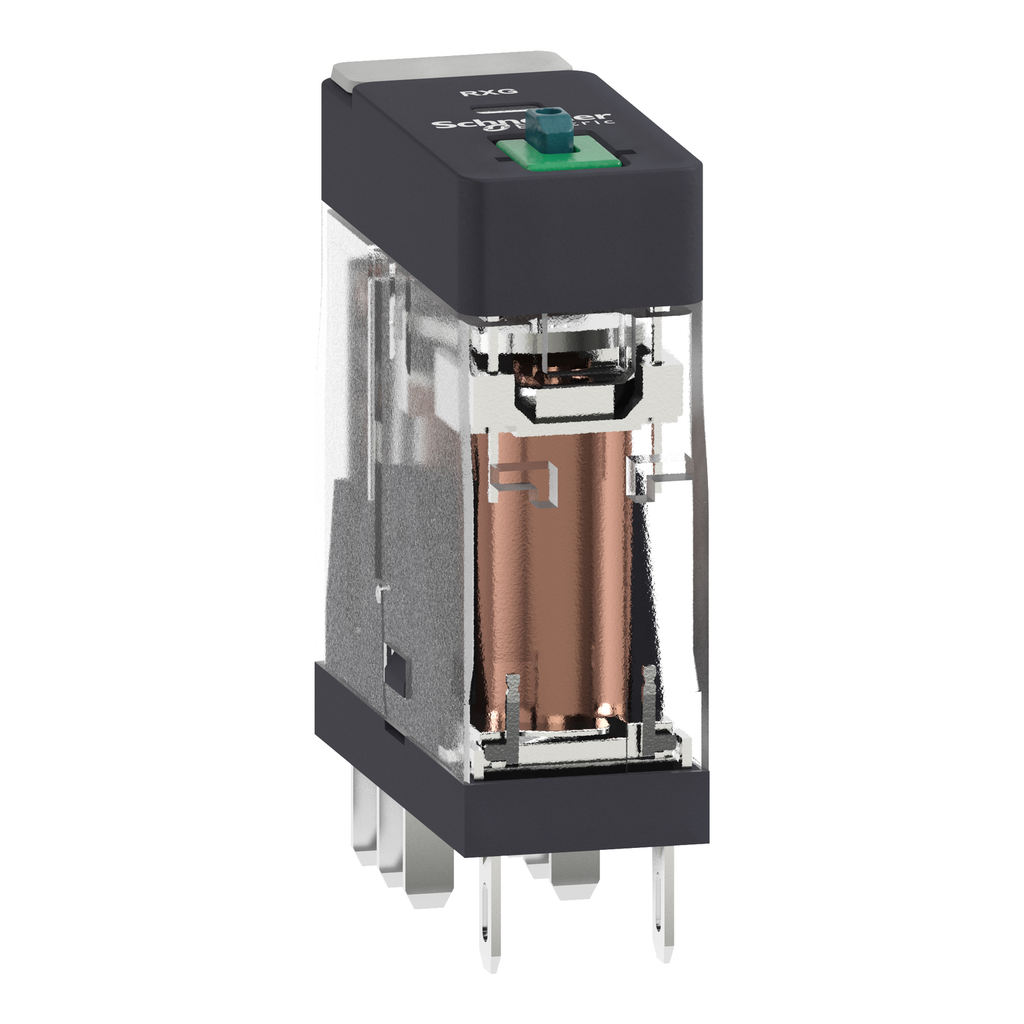

"This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Utilisation Coefficient : 20 %
• Maximum Switching Capacity : 1250 VA
• Safety Reliability Data : B10d = 100000
• Insulation Resistance : 1000 MOhm at 500 V DC
• Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
• Protection Category : RT I
• Test Levels : level A group mounting
• Contacts Material : silver alloy (AgSnO2In2O3)
• Pollution Degree : 2
• Reset Time : 20 ms
• Shape Of Pin : flat (faston type)
• Dielectric Strength : 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
• Status Led : without
• Net Weight : 0.02 kg
• Maximum Switching Voltage : 250 V AC || 30 V DC
• Control Type : lockable test button
• Device Presentation : complete product
• Electrical Insulation Class : class F
• [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
• Mechanical Durability : 10000000 cycles
• Overvoltage Category : III
• Load Current : 5 A 250 V AC
• Drop-Out Voltage Threshold : >= 0.1 Uc DC
• Minimum Switching Capacity : 50 mW at 10 mA, 5 V DC
• Operating Time : 20 ms
• Contact Resistance : 100 mOhm
• Specifications
• Country of Origin : China
• Weight : 0.02 kg
• [Uc] Control Circuit Voltage : 24 V DC
• Range Of Product : Harmony Electromechanical Relays
• Product Or Component Type : plug-in relay
• Series Name : RXG series
• Contacts Type And Composition : 2 C/O
• Relay Type : interface relay
• Local Signalling : flag
• [Ithe] Conventional Enclosed Thermal Current : 5 A -40-55 °C
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1406006EN
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 7.8496877018
• Environment
• Product Certifications : CSA || CE || EAC || UL || DNV-GL
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : UL 508 || IEC 61810-1 || CSA C22.2 No 14
• Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
• Relative Humidity : 10-85 %
• Ambient Air Temperature For Storage : -40-85 °C
• Ip Degree Of Protection : IP40
