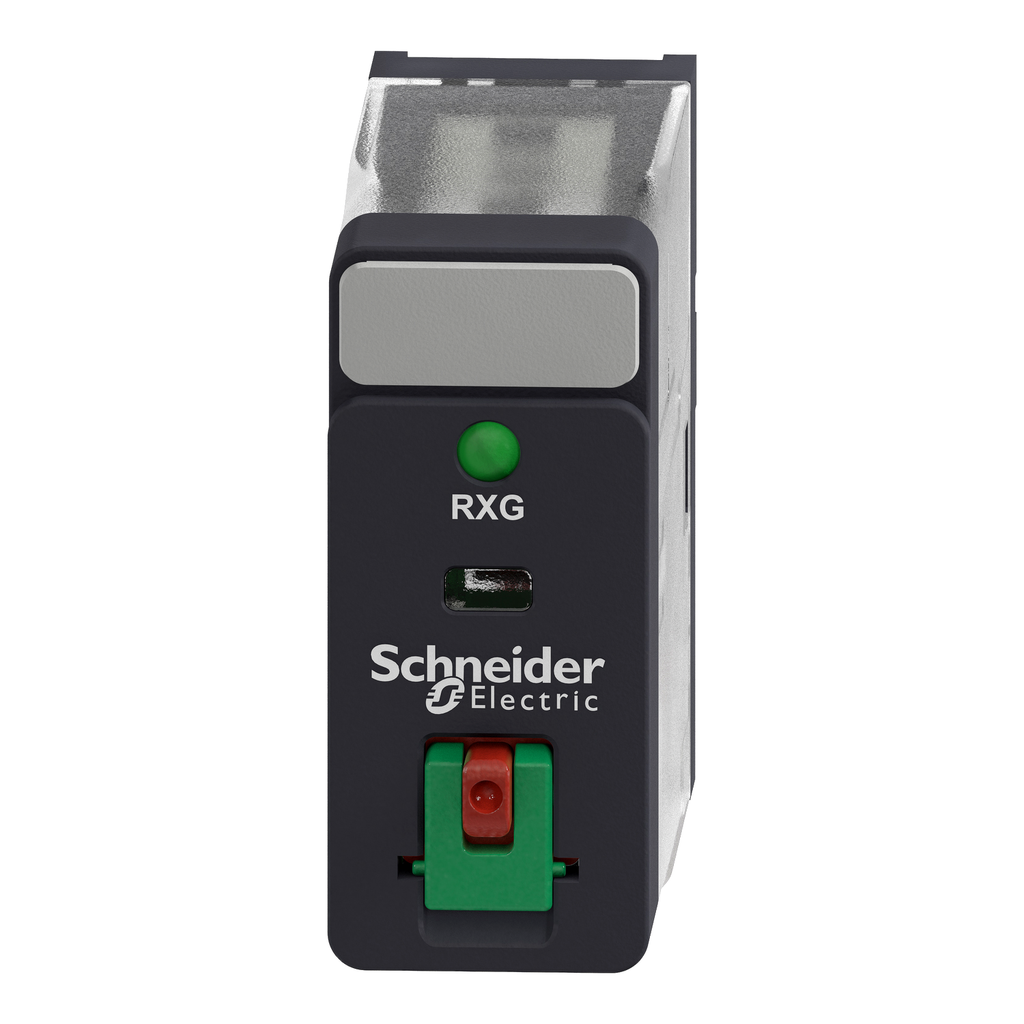

"This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1406006EN
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 10.1673460353
• Specifications
• Country of Origin : United States
• Weight : 0.02 kg
• [Uc] Control Circuit Voltage : 24 V DC
• Range Of Product : Harmony Electromechanical Relays
• Product Or Component Type : plug-in relay
• Series Name : RXG series
• Contacts Type And Composition : 1 C/O
• Relay Type : interface relay
• Local Signalling : flag
• [Ithe] Conventional Enclosed Thermal Current : 10 A -40-55 °C
• Complementary
• Utilisation Coefficient : 20 %
• Maximum Switching Capacity : 2500 VA
• Safety Reliability Data : B10d = 100000
• Insulation Resistance : 1000 MOhm at 500 V DC
• Operating Rate : <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
• Protection Category : RT I
• Test Levels : level A group mounting
• Contacts Material : silver alloy (AgSnO2In2O3)
• Pollution Degree : 2
• Reset Time : 20 ms
• Shape Of Pin : flat (faston type)
• Dielectric Strength : 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
• Status Led : with
• Net Weight : 0.02 kg
• Maximum Switching Voltage : 250 V AC || 30 V DC
• Control Type : lockable test button
• Device Presentation : complete product
• Electrical Insulation Class : class F
• [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
• Mechanical Durability : 10000000 cycles
• Overvoltage Category : III
• Load Current : 10 A 250 V AC
• Drop-Out Voltage Threshold : >= 0.1 Uc DC
• Minimum Switching Capacity : 500 mW at 100 mA, 5 V DC
• Operating Time : 20 ms
• Contact Resistance : 100 mOhm
• Environment
• Product Certifications : CSA || CE || EAC || UL || DNV-GL
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : IEC 61810-1 || CSA C22.2 No 14 || UL 508
• Vibration Resistance : 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
• Relative Humidity : 10-85 %
• Ambient Air Temperature For Storage : -40-85 °C
• Ip Degree Of Protection : IP40
