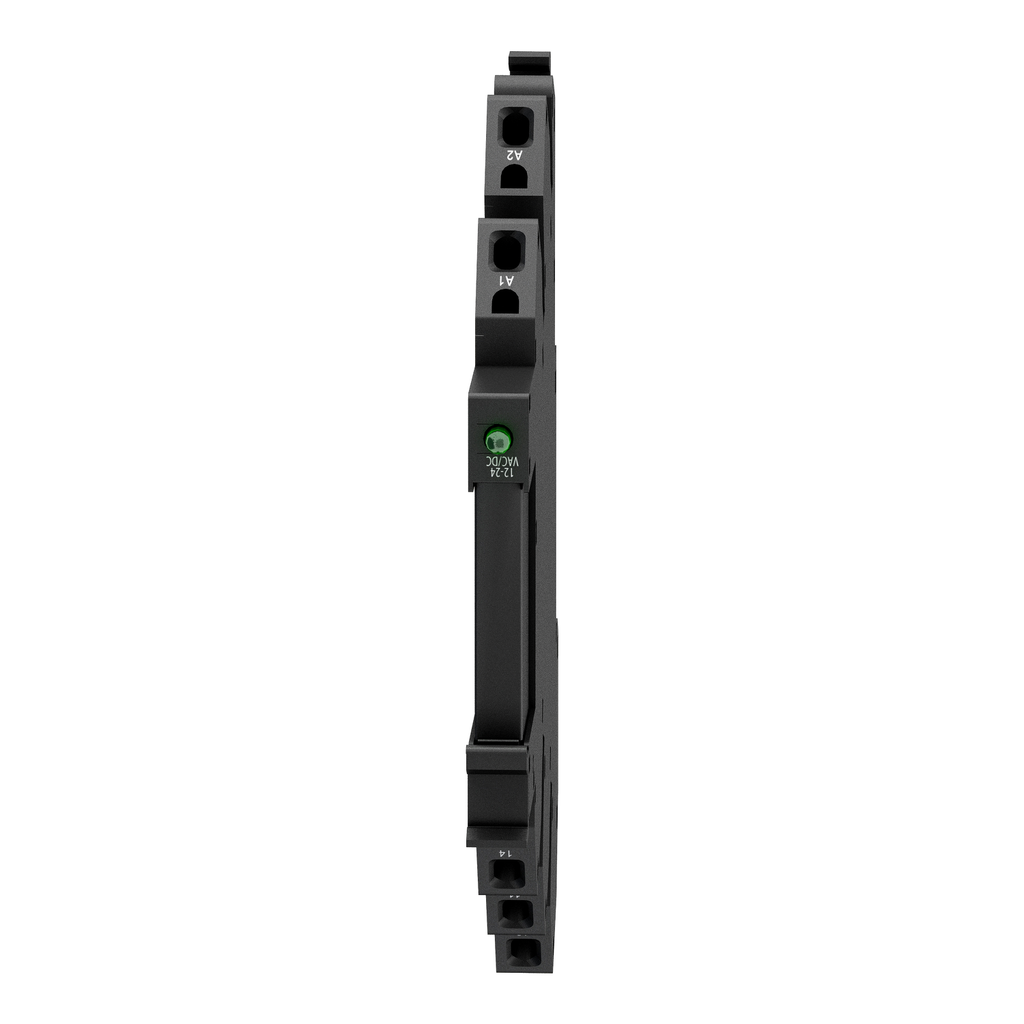

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL, CSA, GOST
• Standards : IEC 61810-1, CSA C22.2 No 14, UL 508
• Complementary Attributes
• Maximum Switching Capacity : 1500 VA, 150 W
• Uc Control Circuit Voltage : 24 V AC/DC, 24 V
• Ui Rated Insulation Voltage : 250 V IEC, 277 V cUL
• Control Circuit Type : AC/DC
• Line Rated Current : 6 A
• Maximum Switching Voltage : 277 V
• Minimum Switching Capacity : 120 mW
• Minimum Switching Current : 100 mA
• Minimum Switching Voltage : 12 V
• Ie Rated Operational Current : 6 A 1 C/O AC-1/DC-1)IEC/UL
• Uimp Rated Impulse Withstand Voltage : 6 kV IEC
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Dielectric Strength : 1000 V AC between contacts, 4000 V AC between coil and contact
• Drop Out Voltage Threshold : >= 0.05 Uc, >= 0.05 Uc
• Operating Rate : <= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load
• Operating Time : 5 ms reset, 12 ms
• Shock Resistance : 10 gn 11 ms) in operation IEC 60068-2-27, 5 gn 11 ms) not operating IEC 60068-2-27
• Terminals Description Iso N 1 : (A1-A2)CO, (11-12-14)OC, (A1-A2)CO, (11-12-14)OC
• Vibration Resistance : 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-6, 5 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
• Connections Terminals : spring terminals, spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end, spring terminals
• Carbon Footprint Of The Distribution Phase A4 : 0.015185817897280726, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.0627053188436503, 0.1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.27483067729713645
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 kg CO2 eq., 2.425842263779134
• Medium Desc : slim interface relay, Harmony Electromechanical Relays, pre assembled, 6A, 1CO, with LED, spring terminals, 24V AC/DC
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506033EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• Phenolic Free Solution : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Coil Consumption : 0.17 W, DC
• Average Resistance : 3390 Ohm DC 23 °C +/- 10 %
• Clamping Force : 10-40 N
• Compatibility Code : RSL
• Contact Operation : standard
• Contact Terminal Arrangement : separate
• Contacts Material : silver alloy (AgSnO2)
• Contacts Type And Composition : 1 C/O
• Control Type : without lockable test button
• Electrical Durability : 60000 cycles resistive, 6 A 250 V, AC-1
• Fixing Mode : plastic compression spring
• Load Current : 6 A 250 V AC 0.5 mm mounting distance
• Marking : CE
• Mechanical Durability : 10000000 cycles
• Mounting Support : 35 mm symmetrical DIN rail
• Operating Position : any position
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : pre-assembled plug-in relay with socket
• Protection Category : RT III
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : slim interface relay
• Returnability : Yes
• Safety Reliability Data : B10d = 60000
• Series Name : RSL series
• Shape Of Pin : flat (PCB type)
• Software Version : v6.3.0.1-4
• Status Led : with
• Sustainable Packaging : Yes
• Test Levels : level A group mounting
• Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
• Ie Rated Operational Current : 6 A 1 C/O AC-1/DC-1)IEC/UL
• Ithe Conventional Enclosed Thermal Current : 6 A -40-55 °C
• Input Voltage 9 Input Voltage : 24 V
• Pep Code : ENVPEP2506033EN
• Database Version : 2024-01
• Pep Verification Date : 2025-06-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : RSL Interface plug-in Relay has large choice of number of contacts for high rated current use.It helps to reduce the size of enclosures and increases machine reliability and you can mount nearly everywhere. One of the slimiest interface relay on the market with 6mm width and it can be installed nearly anywhere and this product is assembled with socket. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; China, CN
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Global, GLO
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Height Nominal : 78.6 mm
• Width Nominal : 6.2 mm
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-55 °C, -40-55 °C
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Toxic Free : Yes
• Carbon Footprint : 2.7785640778172014
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2506033EN
• Environmental Disclosure : ENVPEP2506033EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP40 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506033EN
• Pep Verification Date : 2025-06-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : pre-assembled plug-in relay with socket
• Range Of Product : Harmony Electromechanical Relays
• ETIM
• ETIM 8 : EC001437
• ETIM 9 : EC001437
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Voltage : 24 V AC/DC 21.6...28.8 V)
• Specifications
• Depth : 101 mm
• Overview Attributes
• Device Presentation : complete product
