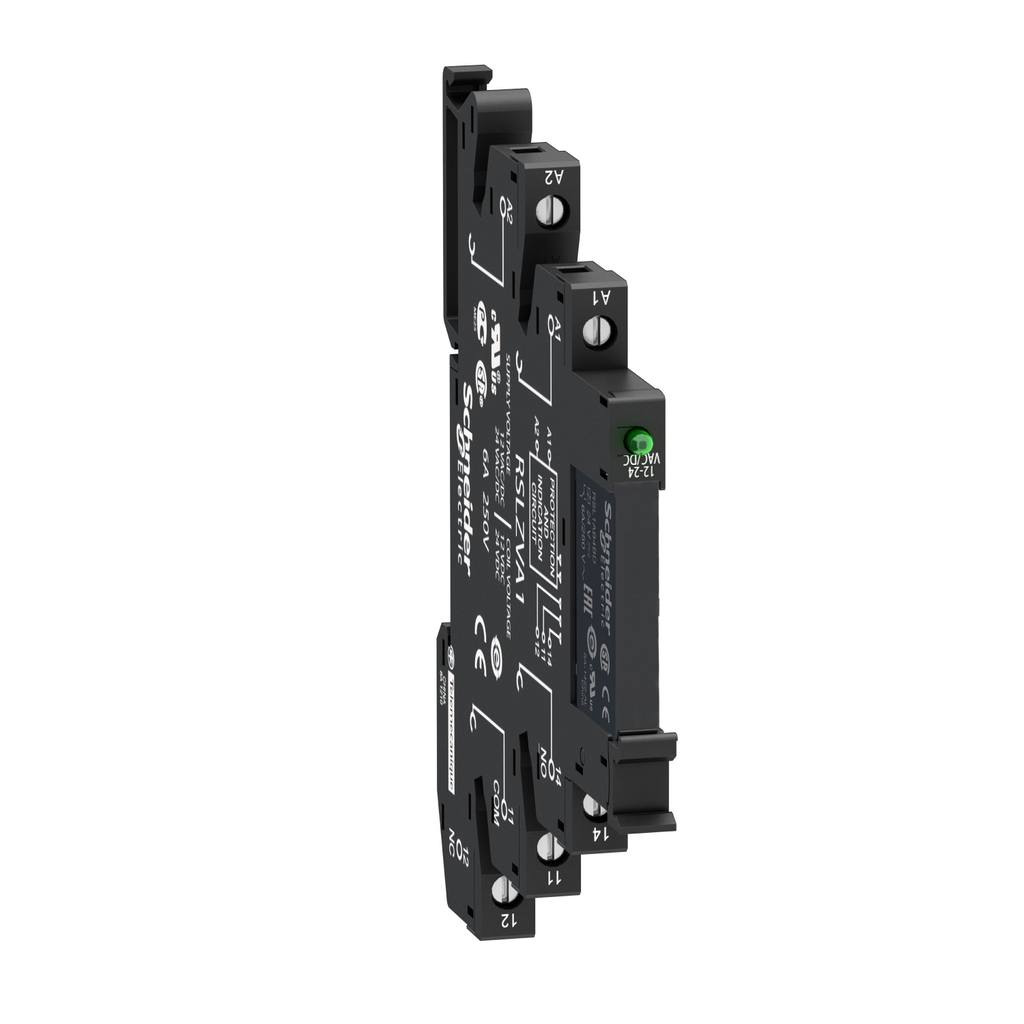

This Harmony RSL slim, pre-assembled plug-in relay and socket features a 24VAC/DC coil control voltage. It includes one changeover contact (SPDT-single pole, double throw) with a current rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimmest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Switching Capacity : 1500 VA, 150 W
• Control Circuit Type : AC/DC
• Line Rated Current : 6 A
• Maximum Switching Voltage : 277 V
• Minimum Switching Capacity : 120 mW
• Minimum Switching Current : 100 mA
• Minimum Switching Voltage : 12 V
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Operating Rate : <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load<= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load
• Operating Time : 5 ms reset, 12 ms
• Tightening Torque : < 0.5 N.m M2.5, < 0.5 N.m M2.5< 0.5 N.m M2.5, < 0.5 N.m M2.5
• Connections Terminals : screw connectors
• Certificate Agency : UL, GOST, CSA
• [Uc] Control Circuit Voltage : AC/DC, 24 V
• Connections - Terminals : screw connectors, screw connectors, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew connectors, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) solid without cable end
• Terminals Description Iso N°1 : (A1-A2)CO, (11-12-14)OC, (A1-A2)CO, (11-12-14)OC
• Carbon Footprint Of The Distribution Phase [A4] : 0.015185817897280726, 0 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.0627053188436503, 0.1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : kg CO2 eq., 0
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.3 kg CO2 eq., 0.27483067729713645
• Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : 2 kg CO2 eq., 2.425842263779134
• Local Data Status : Publishable
• Local Publishable Date : 2026-05-29
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506033EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 2353
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• Phenolic Free Solution : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Coil Consumption : 0.17 W, DC
• Average Resistance : 3390 Ohm DC 23 °C +/- 10 %
• Compatibility Code : RSL
• Contact Operation : standard
• Contact Terminal Arrangement : separate
• Contacts Material : silver alloy (AgSnO2)
• Contacts Type And Composition : 1 C/O
• Control Type : without lockable test button
• Dielectric Strength : 1000 V AC between contacts4000 V AC between coil and contact
• Electrical Durability : 60000 cycles resistive, 6 A 250 V, AC-1
• Fixing Mode : plastic compression spring
• Load Current : 6 A 250 V AC 0.5 mm mounting distance
• Marking : CE
• Mechanical Durability : 10000000 cycles
• Mounting Support : 35 mm symmetrical DIN rail
• Operating Position : any position
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : pre-assembled plug-in relay with socket
• Protection Category : RT III
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : slim interface relay
• Returnability : Yes
• Safety Reliability Data : B10d = 60000
• Sale Per Indivisible Quantity : 10
• Series Name : RSL series
• Shape Of Pin : flat (PCB type)
• Shock Resistance : 10 gn 11 ms) in operation IEC 60068-2-275 gn 11 ms) not operating IEC 60068-2-27
• Software Version : v6.3.0.1-4
• Status Led : with
• Sustainable Packaging : Yes
• Test Levels : level A group mounting
• Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
• Vibration Resistance : 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-65 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
• Input Voltage 9 Input Voltage : 24 V
• Pep Code : ENVPEP2506033EN
• Database Version : 2024-01
• Pep Verification Date : 2025-06-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : RSL Interface plug-in Relay has large choice of number of contacts for high rated current use.It helps to reduce the size of enclosures and increases machine reliability and you can mount nearly everywhere. One of the slimiest interface relay on the market with 6mm width and it can be installed nearly anywhere and this product is assembled with socket. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; High voltage; 2020; China, CN
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Global, GLO
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential In % : 41
• Height Nominal : 78.6 mm
• Width Nominal : 6.2 mm
• [Ie] Rated Operational Current : 6 A 1 C/O AC-1/DC-1)IEC/UL
• [Ithe] Conventional Enclosed Thermal Current : 6 A -40-55 °C
• [Ui] Rated Insulation Voltage : 250 V IEC277 V cUL
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC
• Drop-out Voltage Threshold : >= 0.05 Uc>= 0.05 Uc
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 29.000 g
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 8544429090
• Environment Attributes Main
• Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Toxic Free : Yes
• Carbon Footprint : 2.7785640778172014
• Ambient Air Temperature For Operation : -40-55 °C-40-55 °C
• Circularity Profile : ENVEOLI2506033EN
• Environmental Disclosure : ENVPEP2506033EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP40 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506033EN
• Pep Verification Date : 2025-06-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : pre-assembled plug-in relay with socket
• Range Of Product : Harmony Electromechanical Relays
• ETIM
• ETIM 8 : EC001437
• ETIM 9 : EC001437
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Voltage : 24 V AC/DC 21.6...28.8 V)
• Specifications
• Country of Origin : Brazil, China, France, Italy, United States
• Depth : 95 mm
• Overview Attributes
• Device Presentation : complete product
