pre Assembled, Harmony Solid State Relays, 25A, DIN rail mount, zero voltage switching, input 180...280V AC, output 48...600V AC

SSR 3 CH, 25A@48-600VAC ZC, 1

SQDSSM3A325P7 SSM3A325P7 3606485441702
222.07 / EA
http://schema.org/OutOfStock
  • Country of Origin: USA
  • Dielectric Strength: 4 kV
  • Output Voltage: 48-600 V
  • Weight: 1181 g

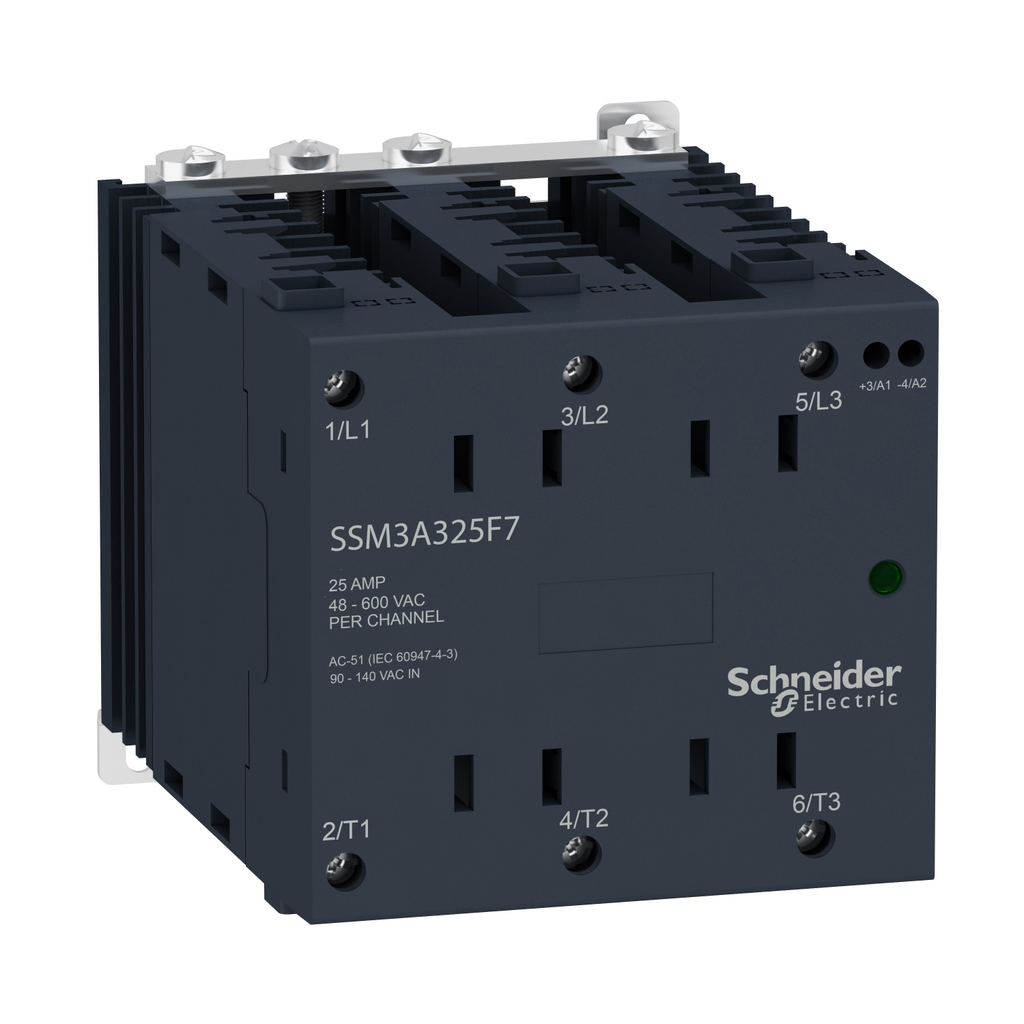

This product is part of the Harmony Solid State Relays range, an offer of panel mount solid state relays. The 1-phase solid state relay features zero voltage switching. It is an automation relay with a control circuit voltage of 180V to 280V AC and a switching voltage of 10V turn on and 180V turn off. This solid state modular relay operates with an output voltage of 48V to 660V AC. It offers screw terminals of 0.2mm² to 1.3mm², (AWG 24 to AWG 16) for input and 1.3mm² to 5.3mm², (AWG 16 to AWG 10) for output connections. It is an IP20 rated product. Its dimensions are 88mm (width) x 90mm (depth) x 123.8mm (height). It weighs 0.74kg. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This product is certified by UL, CSA, EAC and CE marking. It meets IEC 60950-1, CSA C22.2 No 14 and UL 508 standards. It supports symmetrical DIN rail mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Harmony Solid State Relays range, an offer of panel mount solid state relays. The 1-phase solid state relay features zero voltage switching. It is an automation relay with a control circuit voltage of 180V to 280V AC and a switching voltage of 10V turn on and 180V turn off. This solid state modular relay operates with an output voltage of 48V to 660V AC. It offers screw terminals of 0.2mm² to 1.3mm², (AWG 24 to AWG 16) for input and 1.3mm² to 5.3mm², (AWG 16 to AWG 10) for output connections. It is an IP20 rated product. Its dimensions are 88mm (width) x 90mm (depth) x 123.8mm (height). It weighs 0.74kg. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This product is certified by UL, CSA, EAC and CE marking. It meets IEC 60950-1, CSA C22.2 No 14 and UL 508 standards. It supports symmetrical DIN rail mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.
  • Features
    • Fast and precision controlled with high switching frequency
    • Reliable and silent switching with no moving parts
    • Robust in harsh environments with shock/vibration resistance
    • Maintenance free
    • Fully electronic with long lifespan
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Voltage Drop : <1.35 V on-state, <1.35 V on-state<1.35 V on-state, <1.35 V on-state
    • Uc Control Circuit Voltage : AC, 180...280 V
    • Absolute Maximum Voltage : 1100 V
    • Line Rated Current : 25 A
    • Maximum Horse Power Rating : 1 hp 40 °C 240 V AC2 hp 40 °C 380 V AC3 hp 40 °C 480 V AC
    • Maximum Leakage Current : 0.25 mA off-state
    • Rated Current : 25 A
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Dielectric Strength : 4 kV AC for input/output, 4 kV AC for input or output to case
    • Marking : CSA, CE, EAC, UL
    • Connections Terminals : screw terminals 0.2...1.3 mm², 24 AWG...16 AWG) input, screw terminals 1.3...5.3 mm², 16 AWG...10 AWG) output, screw connectors
    • Control Circuit Voltage : 180...280 V
    • Certificate Agency : CSA, UL, EAC
    • Maximum I²T For Fusing : 410 A².s for 10 ms at 50 Hz, 374 A².s for 8.3 ms at 60 Hz
    • Carbon Footprint Of The Distribution Phase A4 : 0.07286999799974303, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.033713668618224
    • Carbon Footprint Of The Installation Phase A5 : 0.3855192233875812, 0.4 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 7 kg CO2 eq., 6.957238026724423
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 41 kg CO2 eq., 40.75904111642341
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-08-10
    • Return Indicator : Y
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2607160EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Control Type : without test button
    • Cos Phi : 0.5-0.5 (with maximum load)
    • Device Short Name : SSM3
    • Insulation Resistance : 1000 MOhm
    • Load Current : 0.1-25 A
    • Local Signalling : LED (green) for input status
    • Mounting Support : symmetrical DIN rail
    • Number Of Channels : 3
    • Overvoltage Category : III
    • Phase : 3 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : modular DIN rail relay
    • Range Of Product : Harmony Solid State Relays
    • Response Time : 30 ms (turn-off)20 ms (turn-on)
    • Returnability : Yes
    • Software Version : v6.2.5-6
    • Sustainable Packaging : Yes
    • Switching Voltage : 10 V turn-off180 V turn-on
    • Tightening Torque : 0.6...0.7 N.m for input1.36...1.7 N.m for output
    • Total Lifecycle Carbon Footprint : 49 kg CO2 eq.
    • Output Voltage 35 : 48...600 V AC
    • Database Version : 2024-01
    • Data Source : extrapolated product
    • Width Nominal : 90 mm
    • Dv/Dt : 500 V/µs off-state at maximum voltage
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8536490080
    • Warranty In Months : 18
    • Functional Unit Description : To provide reliable switching and control of three-phase AC electrical loads in industrial applications for a reference service life of 10 years, operating at an average utilization rate of 20% while ensuring fast, silent and maintenance-free operation.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 10
    • Recyclability Potential In % : 96
    • Pep End Of Validity Date Calculated : 2031-09-01
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -20-60 °C, -20-60 °C
    • Ambient Air Temperature For Storage : -40-100 °C, -40-100 °C
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 49.208382033153384
    • Circularity Profile : ENVEOLI2607160EN
    • Environmental Disclosure : ENVPEP2607160EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2607160EN
    • Pep Verification Date : 2026-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : modular DIN rail relay
    • Range Of Product : Harmony Solid State Relays
  • ETIM
    • ETIM 8 : EC002055
    • ETIM 9 : EC002055
    • ETIM 10 : EC002055
  • Output Attributes
    • Output Switching Mode : zero voltage switching, zero voltage switching
    • Output Voltage : 48...600 V AC
    • Solid State Output Type : zero voltage switching
  • Surge Protection And Filtering Attributes
    • Surge Current : 286 A 20 ms 50 Hz, 300 A 16.6 ms 60 Hz
  • Input Attributes
    • Cos Phi : 0.5-0.5 (with maximum load)
    • Input Current Limits : 19-24 mA
  • Specifications
    • Country of Origin : United States
    • Weight : 1181 g
  • Overview Attributes
    • Device Presentation : complete product
