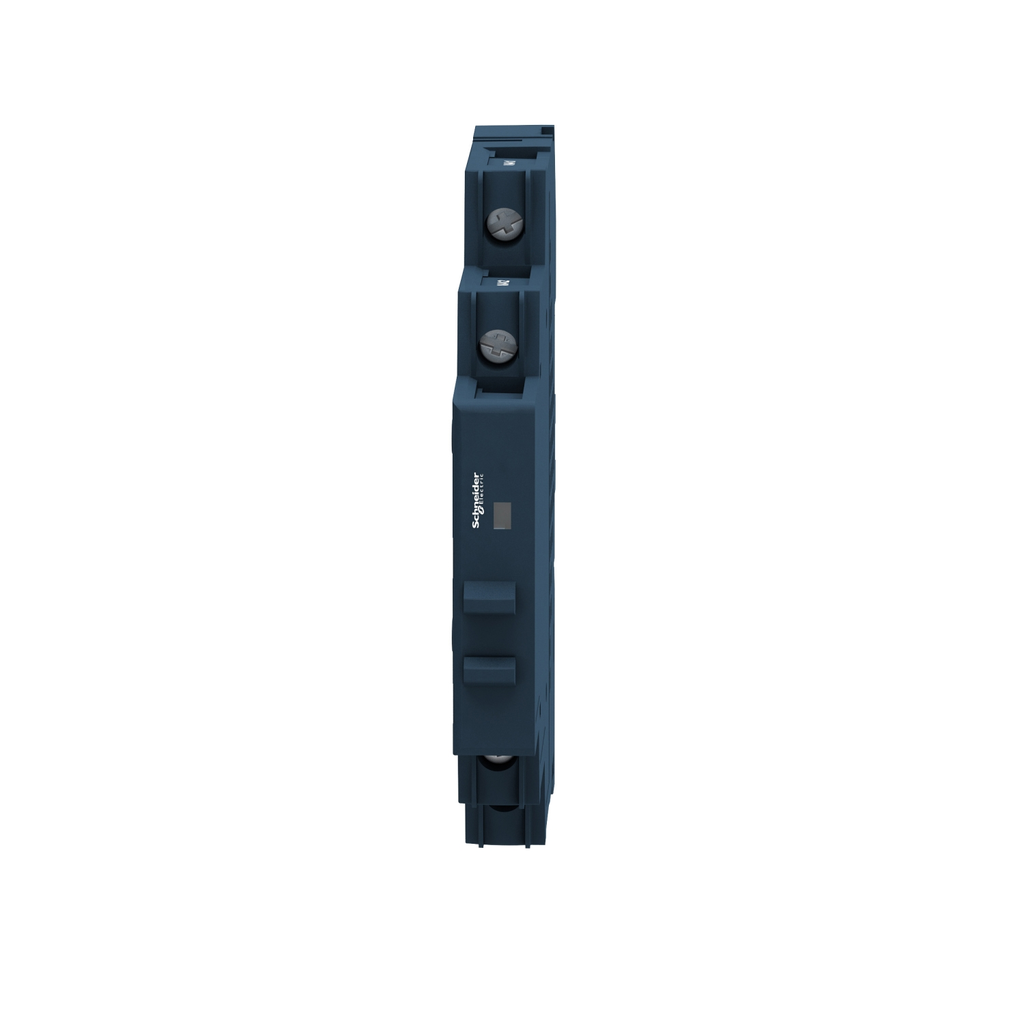

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 600V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Cos Phi : 0.5-0.5 (with maximum load)
• [Uc] Control Circuit Voltage : 4...32 V DC
• Height : 90.3 mm
• Output Voltage : 48...600 V AC
• Maximum Horse Power Rating : 0.16 hp 40 °C 240 V AC
• Tightening Torque : 0.5...0.8 N.m for input || 0.5...0.8 N.m for output
• Insulation Resistance : 1000 MOhm at 500 V DC
• Mounting Support : symmetrical DIN rail
• Maximum I²T For Fusing : 410 A².s for 10 ms at 50 Hz || 375 A².s for 8.33 ms at 60 Hz
• Maximum Voltage Drop : <1.3 V on-state
• Connections - Terminals : screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
• Surge Current : 285 A 16.6 ms || 300 A 20 ms
• Response Time : 0.5 cycle (turn-off) || 0.1 ms (turn-on)
• Load Current : 0.15-6 A
• Net Weight : 0.05 kg
• Minimum Switching Voltage : 4 V DC turn-on
• Maximum Leakage Current : 0.1 mA off-state
• Control Type : without test button
• Absolute Maximum Voltage : 1200 V
• Dv/Dt : 500 V/µs off-state at maximum voltage
• Local Signalling : for input status LED (green)
• Maximum Switching Voltage : 1 V DC turn-off
• Solid State Output Type : random voltage switching || SCR output
• Capacitance Unbalance : 10 pF for input/output
• Line Rated Current : 6 A
• Width : 11 mm
• Product Configuration Type : relay configuration
• Input Current Limits : 8-11 mA
• Overvoltage Category : III
• Depth : 83.7 mm
• Specifications
• Country of Origin : Mexico
• Width : 11 mm
• Height : 90.3 mm
• Weight : 0.05 kg
• Range Of Product : Harmony Solid State Relays
• Output Switching Mode : random voltage switching
• Product Or Component Type : modular DIN rail relay
• Phase : 1 phase
• Number Of Channels : 1
• Device Short Name : SSM
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1307069EN
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI1307069EN
• Take-Back : No
• Environment
• Product Certifications : CSA || UL
• Ambient Air Temperature For Operation : -30-80 °C
• Standards : IEC 60950-1 || IEC 62314 || IEC 61000
• Pollution Degree : 2
• Dielectric Strength : 4 kV AC for input/output || 4 kV AC for input or output to case
• Marking : CE
• Ip Degree Of Protection : IP20
• Flame Retardance : V0 conforming to UL 94
• Ambient Air Temperature For Storage : -30-100 °C
