single phase relay, Harmony Solid State Modular Relays, 12A, DIN rail mount, DC switching, input 4 to 32V DC, output 1 to 60V DC, 1NO

SSR 1 CHANNEL, 12A@1-60VDC, 4-

SQDSSM1D212BD SSM1D212BD 3606480579462
71.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-single phase relay, Harmony Solid State Modular Relays, 12A, DIN rail mount, DC switching, input 4 to 32V DC, output 1 to 60V DC, 1NO-2
  • Country of Origin: Mexico

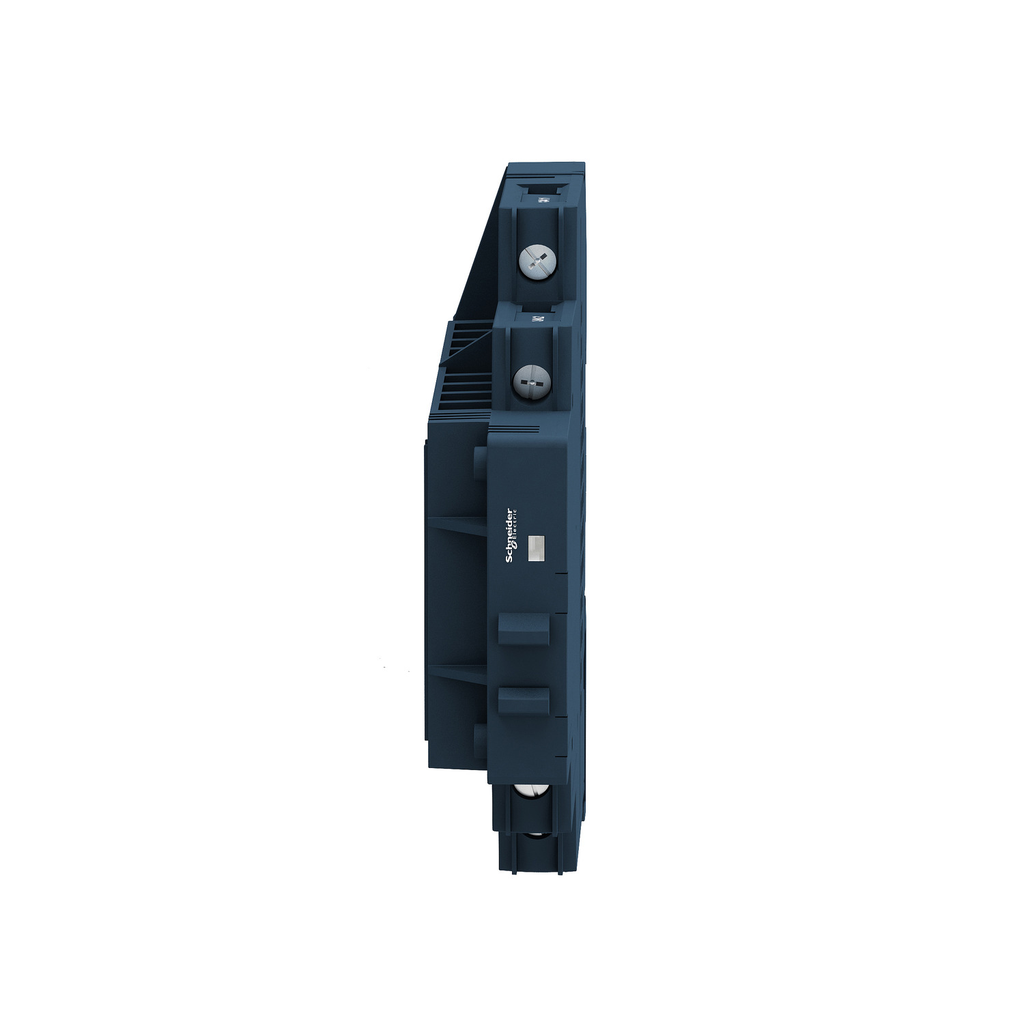

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
  • Insulation Resistance
    • 1000 MOhm at 500 V DC
  • Connections Terminals
    • screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input
    • screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=SSM1D212BD_CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-back.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD_2D-top.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ONLINE-CAD-SSM1D212BD&p_File_name=SSM1D212BD.STEP
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Response Time
    • 1.7 ms (turn-on)
    • 0.3 ms (turn-off)
  • Maximum Leakage Current
    • 0.1 mA off-state
  • Maximum Switching Voltage
    • 1 V DC turn-off
  • Minimum Switching Voltage
    • 4 V DC turn-on
  • UC Control Circuit Voltage
    • 4...32 V DC
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Flame Retardance
    • V0 conforming to UL 94
  • Solid State Output Type
    • DC switching
    • Mosfet output
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 4 kV DC for input/output
    • 4 kV DC for input or output to case
  • Tightening Torque
    • 0.5...0.8 N.m for input
    • 0.5...0.8 N.m for output
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Local Signalling
    • LED (green) for input status
  • Resistance
    • 0.045 Ohm on-state
  • Maximum Voltage Drop
    • <0.5 V on-state
  • Surge Current
    • 100 A 10 ms
  • Output Voltage
    • 1...60 V DC
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-08
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1307069EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Short Name : SSM
    • Package Weight Lbs : 89.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Configuration Type : relay configuration
    • Product Or Component Type : modular DIN rail relay
    • Range Of Product : Harmony Solid State Relays
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Relationship Type : cross-selling relationship
    • Pep Code : ENVPEP1307069EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : modular DIN rail relay
    • Range Of Product : Harmony Solid State Relays
  • Output Attributes
    • Output Switching Mode : DC switching
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=267287235&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1307069EN
    • Environmental Disclosure : ENVPEP1307069EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1307069EN
  • Input Attributes
    • Input Current Limits : 8-11 mA
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
