socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC

SCREW SOCKET 12/24 AC/DC (REL

SQDRSLZVA1 RSLZVA1 3606480078026
12.84 / EA
http://schema.org/OutOfStock

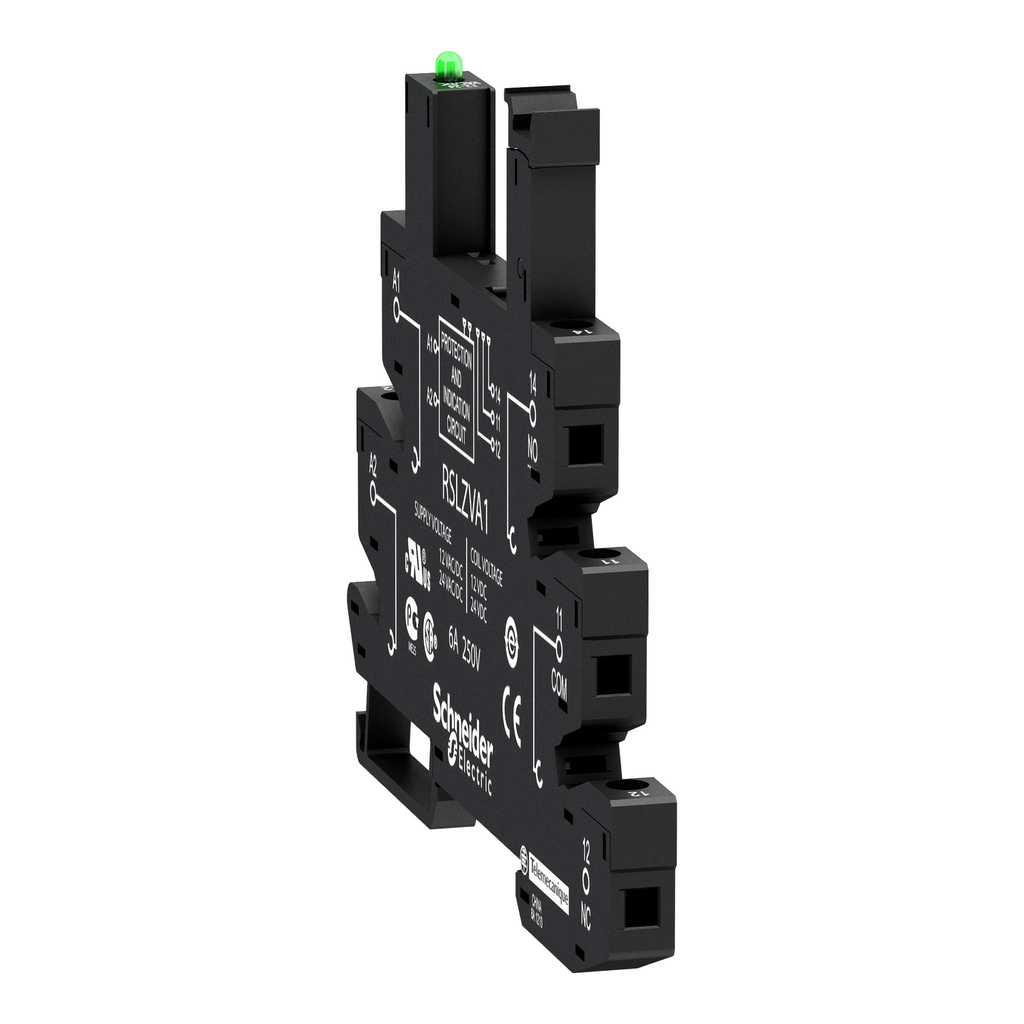

Mayer-DDS-socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, srew connec to r, 12 to 24V AC DC-3
  • Certifications: CSA, GOST
  • Net Weight: 0.023 kg
  • Standard: IEC 61984, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This Harmony RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Specifications
This Harmony RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
  • Environment
    • Product Certifications : CSA || GOST
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 61984 || UL 508
    • Marking : CE
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Ambient Air Temperature For Storage : -40-85 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1405004EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1405004EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Tightening Torque : < 0.4 N.m M2.5
    • [Uimp] Rated Impulse Withstand Voltage : 3.6 kV
    • Pollution Degree : 3
    • Shape Of Pin : flat
    • Contact Terminal Arrangement : separate
    • Net Weight : 0.023 kg
    • Fixing Mode : plastic compression spring (35 mm symmetrical DIN rail)
    • Cad Overall Height : 78.6 mm
    • Connections - Terminals : connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end
    • Sale Per Indivisible Quantity : 10
    • Compatibility Code : RSLZ
    • Overvoltage Category : III
    • Cad Overall Width : 6.2 mm
    • Cad Overall Depth : 95 mm
    • Group Of Product : RSL_CON_12-24
  • Specifications
    • [Ith] Conventional Free Air Thermal Current : 6 A
    • Range Of Product : Harmony Electromechanical Relays
    • Rated Operational Voltage Limits : 11.4...14.4 V || 21.6...28.8 V
    • Product Or Component Type : socket
    • Device Presentation : basic element
    • Contacts Type And Composition : 1 C/O
    • Product Compatibility : plug-in relay RSL 1 C/O 12 V DC || plug-in relay RSL 1 C/O 24 V DC
    • Switching Voltage : 12 V AC/DC || 24 V AC/DC
    • Device Short Name : RSLZ
    • [Ue] Rated Operational Voltage : < 300 V AC
