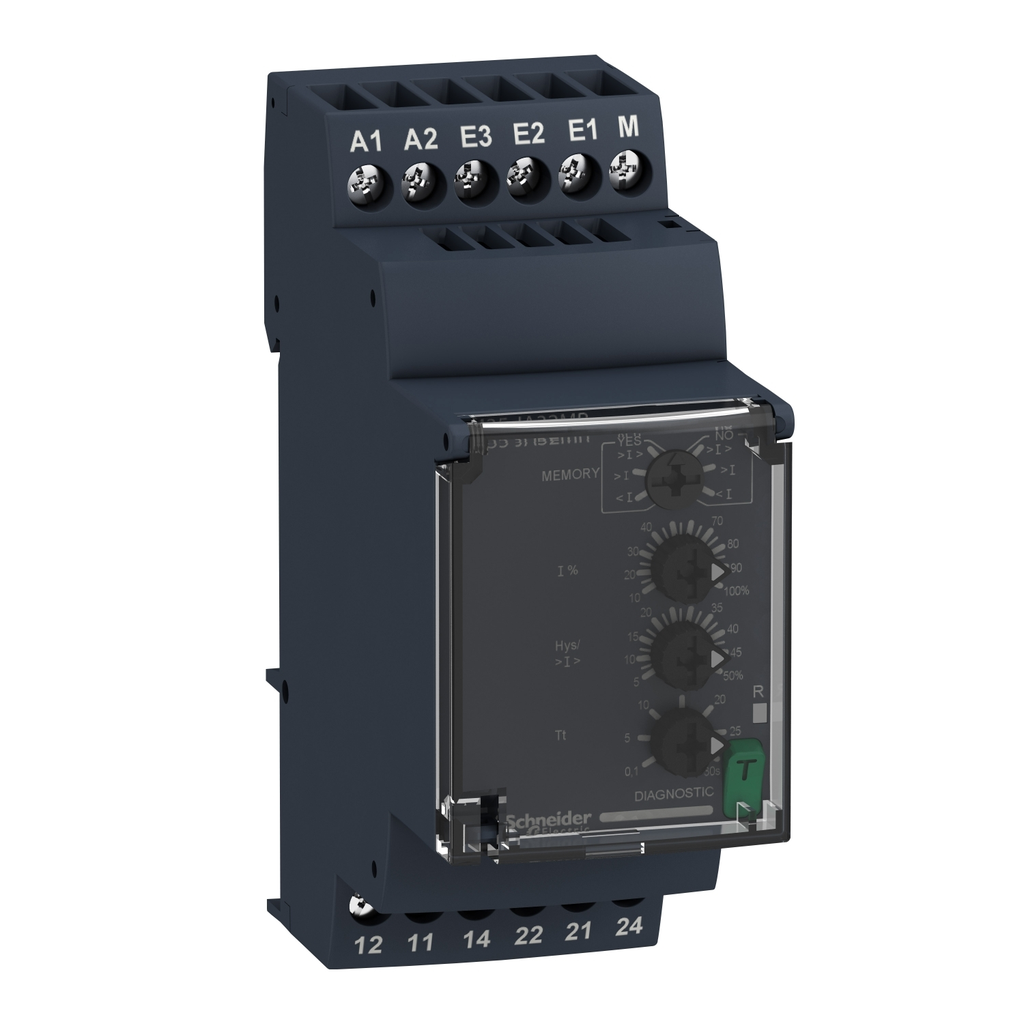

Modular measurement and relay, Harmony relay, 5A, 0.15...15A, 24...240V AC/DC, 2 C/O

Current control relay 0.15A�15

SQDRM35JA32MRSP01 RM35JA32MRSP01 3606489479435
162.41 / EA
http://schema.org/OutOfStock
Mayer-DDS-Modular measurement and relay, Harmony relay, 5A, 0.15...15A, 24...240V AC/DC, 2 C/O-1
QTY
  • Specifications
  • Complementary Attributes
    • Maximum Measuring Cycle : 100 ms measurement cycle as true rms value
    • Maximum Power Consumption In VA : 3.5 VA
    • Maximum Power Consumption In W : 1.5 W DC
    • Maximum Switching Current : 8 A AC
    • Maximum Switching Voltage : 250 V AC
    • Minimum Switching Current : 10 mA 5 V DC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electromagnetic Compatibility : immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, immunity for industrial environments conforming to IEC 61000-6-2, emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, conducted and radiated emissions class B group 1 conforming to CISPR 11, conducted and radiated emissions class B conforming to CISPR 22, emission standard for residential, commercial and light-industrial environments (except radiated emission) conforming to IEC 61000-6-3
    • Hysteresis : 5-50 % adjustable threshold setting, 3-3 % fixed full scale for window mode
    • Insulation Resistance : > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
    • Local Signalling : LED (yellow) for relay ON, LED (green) for power ON
    • Measurement Error : < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, 0.05 %/°C with temperature variation
    • Measurement Range : 0.15...1.5 A E1-M terminals, 0.5...5 A E2-M terminals, 1.5...15 A E3-M terminals, 150 mA...15 A current AC/DC 50/60 Hz
    • Overvoltage Category : III conforming to IEC 60664-1, III conforming to UL 508
    • Relay Monitored Parameters : overcurrent or undercurrent in window mode, overcurrent or undercurrent detection
    • Repeat Accuracy : +/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay
    • Resistance Across Terminals : 0.005 Ohm E3-M terminals, 0.015 Ohm E2-M terminals, 0.05 Ohm E1-M terminals
    • Response Time : <= 500 ms (on crossing the threshold), <= 500 ms (on crossing the threshold)
    • Shock Resistance : 15 gn 11 ms) not in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
    • Switching Threshold Drift : <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
    • Time Delay Drift : <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
    • Utilisation Category : AC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1, AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
    • Vibration Resistance : 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
    • Carbon Footprint Of The Distribution Phase A4 : 0.017391935718440953, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.24968448225712625
    • Carbon Footprint Of The Installation Phase A5 : 0.043154399360093076, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 9 kg CO2 eq., 8.955836242001162
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 40 kg CO2 eq., 40.209599999999995
    • Connections Terminals : screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1601004EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : RM3
    • Dielectric Test Voltage : 2.5 kV AC 50 Hz, 1 min IEC 60255-27
    • Environmental Characteristic : 3K3 C
    • Functionality : overcurrent or undercurrent detection
    • Housing Material : polycarbonate
    • Mounting Support : 35 mm DIN rail conforming to IEC 60715
    • Package Weight Lbs : 133 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : modular measurement and control relays
    • Range Of Product : Harmony Relay
    • Relay Name : RM35JA
    • Reset Time : 1500 ms at maximum voltage
    • Returnability : Yes
    • Supply Voltage Limits : 20.4-264 V AC/DC
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.6-1 N.m IEC 60947-1
    • Time Delay Type : adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
    • Total Lifecycle Carbon Footprint : 49 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1601004EN
    • Pep Verification Date : 2025-02-23
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : RM35 relay used to measure and monitor the abnormal operating& 10conditions such as on current, voltage, frequency, phase, speed, temperature and liquid level that the machine will not be allowed to run when a fault is occurred. It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur.This product will be in 80% active mode with power consumption of 1W during 10 years of lifetime, adhering to IEC 60255-1 standard.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : LEK YEE ALEX THO
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz, -20-60 °C 50 Hz
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20 IEC 60529 terminals), IP50 IEC 60529 front panel), IP30 IEC 60529 housing)
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 49.475667059336814
    • Circularity Profile : ENVEOLI1601004EN
    • Environmental Disclosure : ENVPEP1601004EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 93-97 % 25-55 °C IEC 60068-2-30
    • Pep Code : ENVPEP1601004EN
    • Pep Verification Date : 2025-02-23
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : modular measurement and control relays
    • Range Of Product : Harmony Relay
  • Output Attributes
    • Output Contacts : 2 C/O
  • Input Attributes
    • Internal Input Resistance : 0.015 Ohm, 0.005 Ohm, 0.05 Ohm
