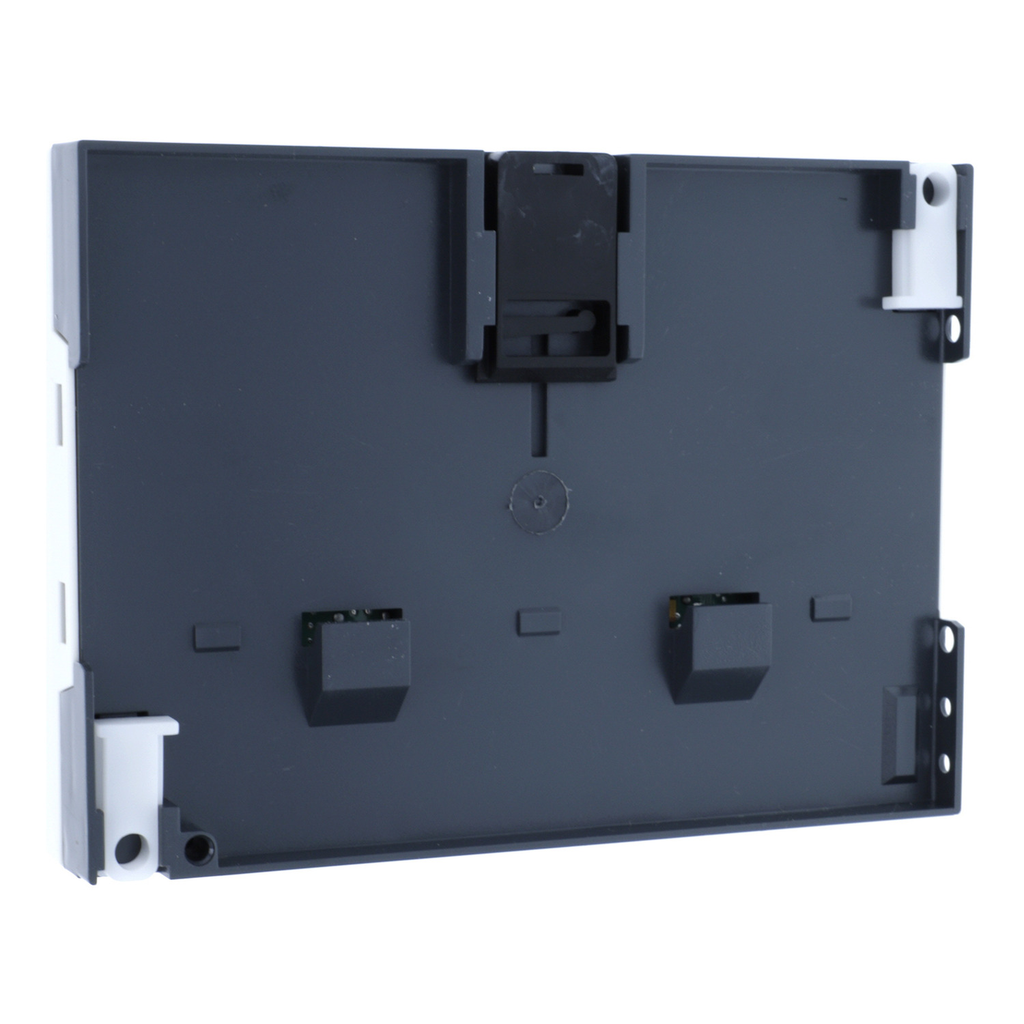

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : C-tick || GOST || UL || CSA || GL
• Standards : IEC 60068-2-27 Ea || IEC 61000-4-5 || IEC 61000-4-11 || IEC 61000-4-6 level 3 || IEC 61000-4-12 || IEC 61000-4-4 level 3 || IEC 61000-4-3 || IEC 61000-4-2 level 3 || IEC 60068-2-6 Fc
• Immunity To Microbreaks : 1 ms
• Environmental Characteristic : EMC directive conforming to IEC 61000-6-2 || EMC directive conforming to IEC 61000-6-3 || EMC directive conforming to IEC 61000-6-4 || EMC directive conforming to IEC 61131-2 zone B || low voltage directive conforming to IEC 61131-2
• Maximum Altitude Transport : 3048 m
• Operating Altitude : 6561.68 ft (2000 m)
• Disturbance Radiated/Conducted : class B EN 55022-11 group 1
• Ambient Air Temperature For Operation : -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
• Ip Degree Of Protection : IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
• Pollution Degree : 2 IEC 61131-2
• Ambient Air Temperature For Storage : -40-70 °C
• Relative Humidity : 95-95 % without condensation or dripping water
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 36.50697864489996
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 116 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 115.99775808601144
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP060406EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : eee2fc35-1620-4b70-b1d5-206e9240044e
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.05600226371524923
• Circularity Profile : ENVEOLI1409020EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 78.09685754353194
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.7 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 0.6 kg CO2 eq.
• Pvc Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Output Voltage : 24 V transistor output
• Input Impedance : 12 kOhm IB...IG used as analogue input circuit || 12 kOhm IB...IG used as discrete input circuit || 7.4 kOhm I1...IA and IH...IR discrete input circuit
• Number Of Outputs : 10 transistor
• Conversion Error : +/- 5 % 25 °C analogue input circuit || +/- 6.2 % 55 °C analogue input circuit
• Number Or Control Scheme Lines : 0-500 FBD || 0-240 ladder
• Lsb Value : 39 mV analogue input circuit
• Clock Drift : 12 min/year 0-55 °C || 6 s/month 25-25 °C
• Discrete Input Current : 4 mA
• Current State 1 Guaranteed : >= 1.2 mA IB...IG used as discrete input circuit) || >= 2.2 mA I1...IA and IH...IR discrete input circuit)
• Response Time : <= 1 ms from state 0 to state 1)transistor output || <= 1 ms from state 1 to state 0)transistor output
• Overvoltage Protection : with transistor output
• Net Weight : 0.3 kg
• [Uimp] Rated Impulse Withstand Voltage : 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
• Output Voltage Limits : 19.2...30 V DC transistor output)
• Connections - Terminals : screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
• Analogue Input Number : 6
• Voltage State 1 Guaranteed : >= 15 V I1...IA and IH...IR discrete input circuit || >= 15 V IB...IG used as discrete input circuit
• Overvoltage Category : III conforming to IEC 60664-1
• Maximum Supply Current : 180 mA with extensions) || 70 mA without extension)
• Load Current : 0.5-0.625 A transistor output
• Cycle Time : 6-90 ms
• Reverse Polarity Protection : with
• Maximum Permissible Voltage : 30 V analogue input circuit
• Repeat Accuracy : +/- 2 % 55 °C analogue input circuit
• [Us] Rated Supply Voltage : 24 V
• Checks : program memory on each power up
• Discrete Input Type : resistive
• Analogue Input Range : 0...24 V || 0...10 V
• Discrete Input Voltage : 24 V DC
• Backup Time : 10 years 25 °C
• Analogue Input Type : common mode
• Overload Protection : with transistor output
• Clock : with
• Power Dissipation In W : 10 W with extensions || 5 W without extension
• Local Display : with
• Voltage State 0 Guaranteed : <= 5 V I1...IA and IH...IR discrete input circuit || <= 5 V IB...IG used as discrete input circuit
• Conversion Time : smart relay cycle time analogue input circuit
• Input Compatibility : 3-wire proximity sensors PNP discrete input
• Current State 0 Guaranteed : <= 0.5 mA IB...IG used as discrete input circuit) || <= 0.75 mA I1...IA and IH...IR discrete input circuit)
• Supply Voltage Limits : 19.2-30 V
• Operating Distance : 10 m between stations, with screened cable (sensor not isolated) analogue input circuit
• Short-Circuit Protection : with transistor output
• Tightening Torque : 0.5 N.m
• Temperature Probe Type : NTC 10k 25 °C || NTC 1000k 25 °C || KTY81 210/220/221/222/250 || Pt 500
• Analogue Input Resolution : 8 bits
• Counting Frequency : 1 kHz discrete input
• [Ures] Residual Voltage : 2 V at state 1 transistor output
• Discrete Input Number : 16 IEC 61131-2 Type 1
• Specifications
• Country of Origin : France
• Weight : 0.3 kg
• Product Or Component Type : modular smart relay
• Range Of Product : Zelio Logic
