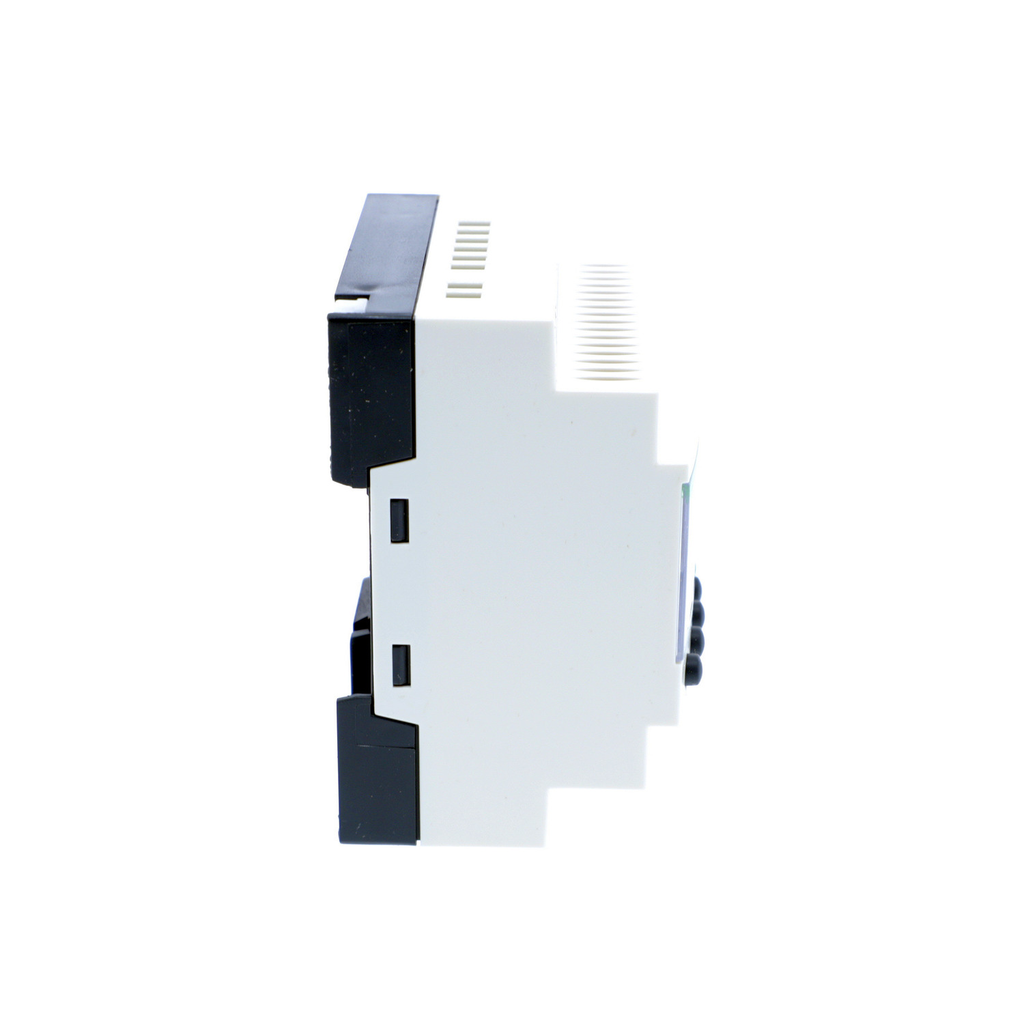

This Schneider Electric Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24 volts direct current, has 10 inputs / outputs with screw-clamp terminals. It has an integrated clock and LCD display. This compact smart relays / programmable controller is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : GL || C-tick || GOST || UL || CSA
• Standards : IEC 60068-2-27 Ea || IEC 60068-2-6 Fc || IEC 61000-4-6 level 3 || IEC 61000-4-4 level 3 || IEC 61000-4-2 level 3 || IEC 61000-4-12 || IEC 61000-4-11 || IEC 61000-4-3 || IEC 61000-4-5
• Immunity To Microbreaks : 1 ms
• Environmental Characteristic : EMC directive conforming to IEC 61000-6-2 || EMC directive conforming to IEC 61000-6-3 || EMC directive conforming to IEC 61000-6-4 || EMC directive conforming to IEC 61131-2 zone B || low voltage directive conforming to IEC 61131-2
• Maximum Altitude Transport : 3048 m
• Operating Altitude : 6561.68 ft (2000 m)
• Disturbance Radiated/Conducted : class B EN 55022-11 group 1
• Ambient Air Temperature For Operation : -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
• Ip Degree Of Protection : IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
• Pollution Degree : 2 IEC 61131-2
• Ambient Air Temperature For Storage : -40-70 °C
• Relative Humidity : 95-95 % without condensation or dripping water
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 25.236367788085207
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 72 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 71.75645161544098
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP060406EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : eee2fc35-1620-4b70-b1d5-206e9240044e
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.038712974246111885
• Circularity Profile : ENVEOLI1409020EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 45.556500233726965
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.5 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 0.4 kg CO2 eq.
• Pvc Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Output Voltage : 24 V transistor output
• Input Impedance : 12 kOhm IB...IG used as analogue input circuit || 12 kOhm IB...IG used as discrete input circuit || 7.4 kOhm I1...IA and IH...IR discrete input circuit
• Number Of Outputs : 4 transistor
• Conversion Error : +/- 5 % 25 °C analogue input circuit || +/- 6.2 % 55 °C analogue input circuit
• Number Or Control Scheme Lines : 0-500 FBD || 0-240 ladder
• Lsb Value : 39 mV analogue input circuit
• Clock Drift : 12 min/year 0-55 °C || 6 s/month 25-25 °C
• Discrete Input Current : 4 mA
• Current State 1 Guaranteed : >= 1.2 mA IB...IG used as discrete input circuit) || >= 2.2 mA I1...IA and IH...IR discrete input circuit)
• Response Time : <= 1 ms from state 0 to state 1)transistor output || <= 1 ms from state 1 to state 0)transistor output
• Overvoltage Protection : with transistor output
• Net Weight : 0.22 kg
• Output Voltage Limits : 19.2...30 V DC transistor output)
• Connections - Terminals : screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
• Analogue Input Number : 4
• Voltage State 1 Guaranteed : >= 15 V I1...IA and IH...IR discrete input circuit || >= 15 V IB...IG used as discrete input circuit
• Overvoltage Category : III conforming to IEC 60664-1
• Maximum Supply Current : 160 mA with extensions) || 50 mA without extension)
• Load Current : 0.5-0.625 A transistor output
• Cycle Time : 6-90 ms
• Reverse Polarity Protection : with
• Maximum Permissible Voltage : 30 V analogue input circuit
• Repeat Accuracy : +/- 2 % 55 °C analogue input circuit
• [Us] Rated Supply Voltage : 24 V
• Checks : program memory on each power up
• Discrete Input Type : resistive
• Analogue Input Range : 0...10 V || 0...24 V
• Discrete Input Voltage : 24 V DC
• Backup Time : 10 years 25 °C
• Analogue Input Type : common mode
• Overload Protection : with transistor output
• Clock : with
• Power Dissipation In W : 4 W without extension || 8 W with extensions
• Local Display : with
• Voltage State 0 Guaranteed : <= 5 V I1...IA and IH...IR discrete input circuit || <= 5 V IB...IG used as discrete input circuit
• Conversion Time : smart relay cycle time analogue input circuit
• Input Compatibility : 3-wire proximity sensors PNP discrete input
• Current State 0 Guaranteed : <= 0.5 mA IB...IG used as discrete input circuit) || <= 0.75 mA I1...IA and IH...IR discrete input circuit)
• Supply Voltage Limits : 19.2-30 V
• Operating Distance : 10 m between stations, with screened cable (sensor not isolated) analogue input circuit
• Short-Circuit Protection : with transistor output
• Tightening Torque : 0.5 N.m
• Temperature Probe Type : NTC 10k 25 °C || NTC 1000k 25 °C || KTY81 210/220/221/222/250 || Pt 500
• Analogue Input Resolution : 8 bits
• Counting Frequency : 1 kHz discrete input
• [Ures] Residual Voltage : 2 V at state 1 transistor output
• Discrete Input Number : 6 IEC 61131-2 Type 1
• Specifications
• Country of Origin : France
• Weight : 0.22 kg
• Product Or Component Type : modular smart relay
• Range Of Product : Zelio Logic
