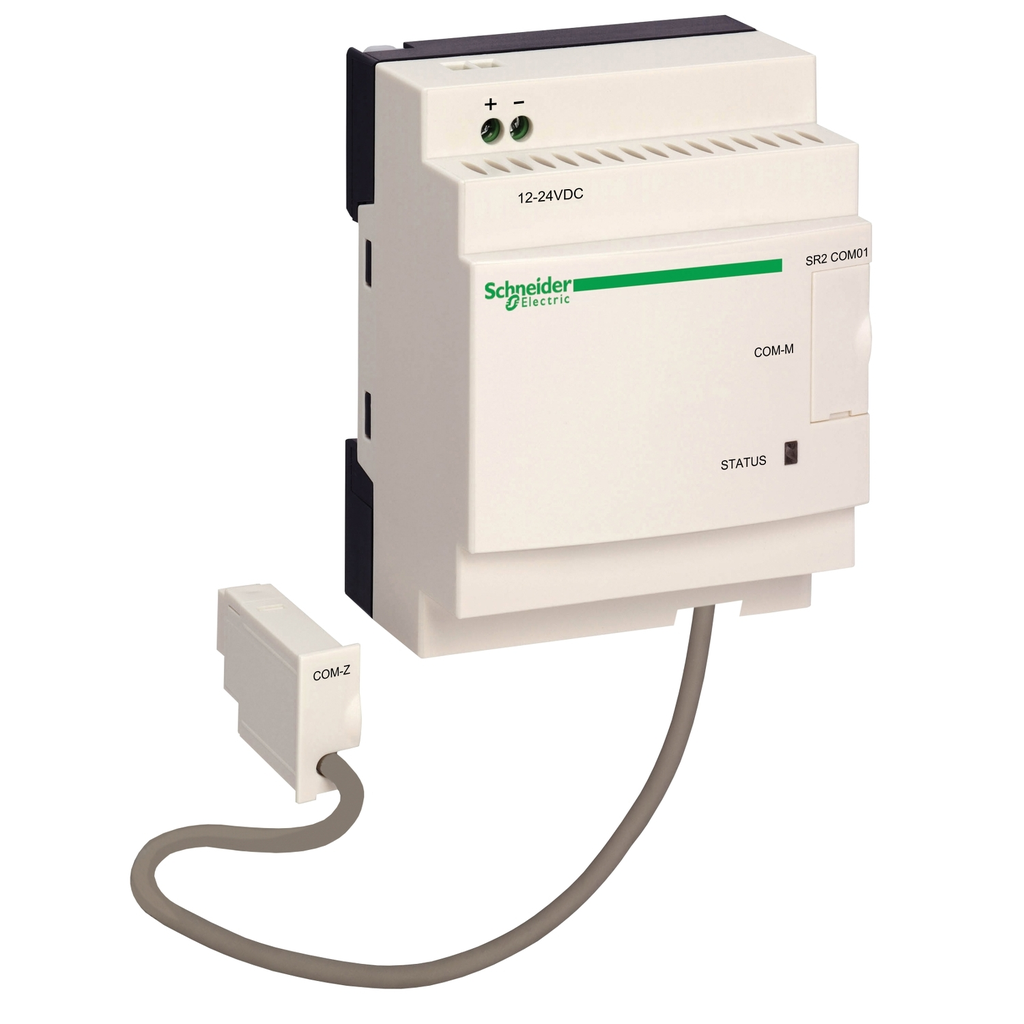

This SR2 communication interface has a coil control voltage of 12V-24V DC. It can transfer program, send alarm to e-mail,and send alarm/receive instruction. It monitors or remotes control of machine or installation that operate without personnel. Communication interface allows messages, telephone numbers, and calling. It has flexibility design for space-saving with retractable mounting lug, spring for clip-on.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Supply Current : 30 mA 12 V, 30 mA 24 V, 550 A
• Maximum Altitude Transport : 3048 m
• Us Rated Supply Voltage : 12...24 V DC
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Electrical Connection : 1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol link with the modem, AT commands, 1 cable Com-Z specific to Zelio, specific Zelio communication protocol Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1)
• Electrical Data Recording : discrete and digital value, telephone/e-mail, date and time
• Environmental Characteristic : EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, low voltage directive conforming to IEC 61131-2
• Function Available : update firmware monitoring, send alarm to e-mail address, send alarm/receive instruction, transfer program
• Insulation : 1780 V optocoupler Com-Z specific to Zelio, by the cable SR2 CBL07 Com-M specific to Zelio
• Kit Composition : 1 x SR2CBL07, modem communication interface
• Connections Terminals : screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
• Carbon Footprint Of The Distribution Phase A4 : 0.4129471181915885, 0.4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.5209028275928849
• Carbon Footprint Of The Installation Phase A5 : 0.03908882836500618, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 25 kg CO2 eq., 25.481381067581182
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 36 kg CO2 eq., 35.79439304078547
• Certificate Agency : GOST, CSA, C-tick, UL
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : No
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI0604006EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1846
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Associated Fuse Rating : 1 A
• Data Backed Up : flash memory
• Disturbance Radiated Conducted : class B IEC 55022-11 Group 1
• Number Of Messages : 28
• Power Dissipation In W : 1.1 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : modem communication interface
• Range Of Product : Zelio Logic
• Returnability : Yes
• Reverse Polarity Protection : with
• Software Version : v6.2.2
• Supply Voltage Limits : 10-28.8 V
• Sustainable Packaging : Yes
• Tightening Torque : 0.5 N.m
• Total Lifecycle Carbon Footprint : 62 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP0604006EN
• Database Version : 2023-02
• Pep Verification Date : 2024-11-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 96.36
• Energy Model - Manufacturing [A1-a3] : France, FR
• Energy Model - Installation [A5] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Offer Owner Code : 190786
• Pn : 1
• Environment Attributes Main
• Ambient Air Temperature For Operation : -20-40 °C IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C IEC 60068-2-1 and IEC 60068-2-2
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel)
• Product Compatibility : SR2E....., SR.B.....
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 62.24871288251614
• Circularity Profile : ENVEOLI0604006EN
• Environmental Disclosure : ENVPEP0604006EN
• Eu Rohs Directive : Compliant By Exemption
• Operating Altitude : 6561.68 ft (2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 95-95 % without condensation or dripping water
• Pep Code : ENVPEP0604006EN
• Pep Verification Date : 2024-11-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : modem communication interface
• Range Of Product : Zelio Logic
• ETIM
• ETIM 8 : EC001417
• ETIM 9 : EC001417
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, France
