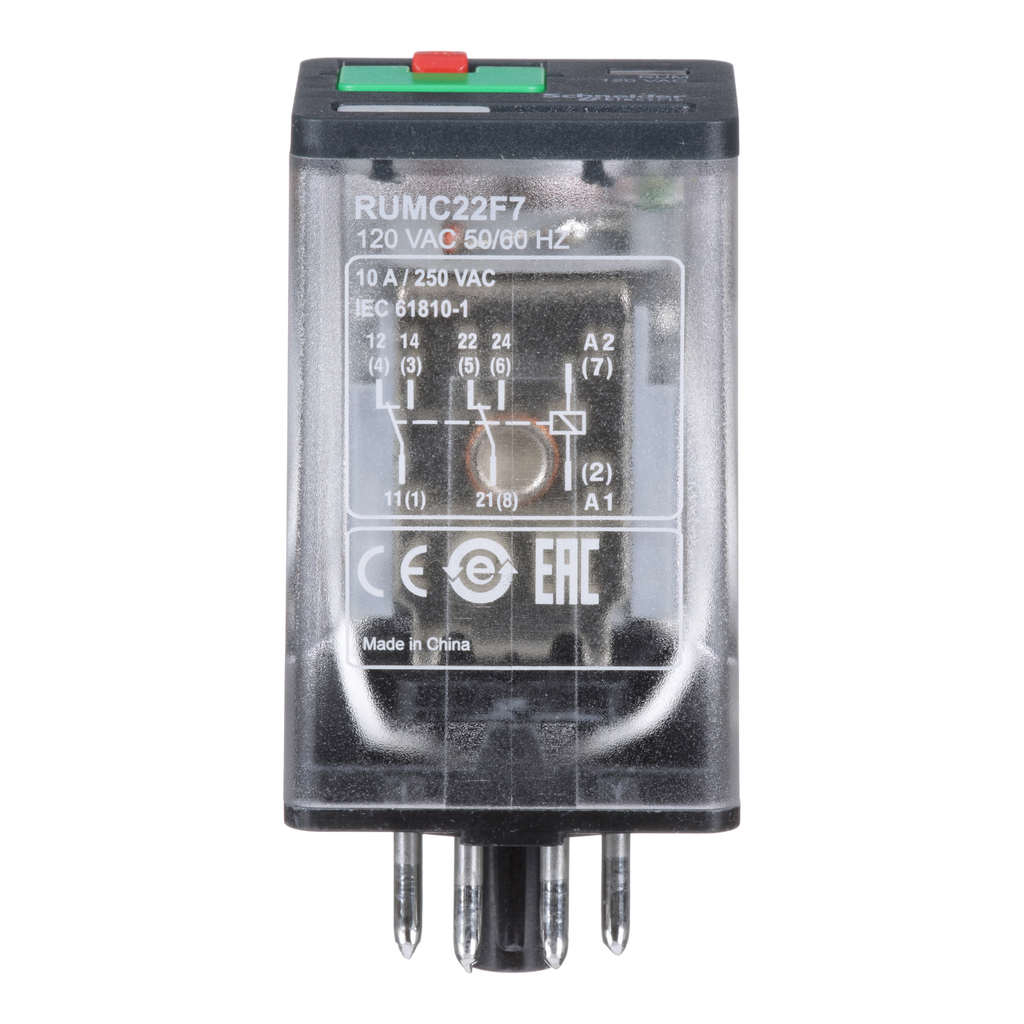

Harmony RUM, universal plugin relay, 2 C/O, octal base, 10 A, 120 VAC, with LED

RELAY 2CO CYL PIN 10A@250V 120

SQDRUMC22F7 RUMC22F7 3606480626692
25.15 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony RUM, universal plugin relay, 2 C/O, octal base, 10 A, 120 VAC, with LED-2
  • Country of Origin: China
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Features
  • Specifications
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
  • IE Rated Operational Current
    • 10 A at 277 V AC conforming to UL
    • 10 A at 30 V DC conforming to UL
    • 10 A at 30 V DC conforming to CSA
    • 5 A at 250 V AC (NC) conforming to IEC
    • 5 A at 28 V DC (NC) conforming to IEC
    • 10 A at 250 V AC (NO) conforming to IEC
    • 10 A at 28 V DC (NO) conforming to IEC
    • 10 A at 277 V AC conforming to CSA
  • Test Levels
    • level A group mounting
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-back.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-back.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-bottom.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-bottom.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-front.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-front.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-isometric.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-isometric.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-left.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-left.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-right.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-right.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-top.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=RUMC22B7_NEW_2024&p_File_name=RUMC22B7_2D-top.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=rumc22f7-3d
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0002863746
    • 0 kg CO2 eq.
  • Load Current
    • 10 A 250 V AC
    • 10 A 28 V DC
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0118005764
  • Operating Time
    • 20 ms at nominal voltage
  • Maximum Switching Voltage
    • 250 V IEC
  • UC Control Circuit Voltage
    • 120 V AC 50/60 Hz
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.8 kg CO2 eq.
    • 0.8420518732
  • UI Rated Insulation Voltage
    • 250 V IEC
    • 300 V CSA
    • 300 V UL
  • Accessories
    • RUZC2M
    • RXZL520
  • Electrical Durability
    • 100000 cycles resistive
  • Reset Time
    • 20 ms at nominal voltage
  • Vibration Resistance
    • 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation
    • 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
  • Market Segmentation
    • Commercial
    • Industrial
  • Rated Operational Voltage Limits
    • 96...132 V AC
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Drop Out Voltage Threshold
    • >= 0.15 Uc AC
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 32 kg CO2 eq.
    • 32.0109243666
  • ITHE Conventional Enclosed Thermal Current
    • 10 A -40-55 °C
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 1500 V AC between contacts with micro disconnection
    • 2500 V AC between coil and contact with reinforced
    • 2000 V AC between poles with basic
  • Average Coil Consumption In VA
    • 3-3 60 Hz
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0113540058
    • 0 kg CO2 eq.
  • Average Resistance
    • 1700 Ohm 20 °C +/- 15 %
  • Minimum Switching Capacity
    • 170 mW 10 mA, 17 V
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operating Rate
    • <= 18000 cycles/hour no-load
    • <= 1200 cycles/hour under load
  • Shock Resistance
    • 10 gn 11 ms) in operation IEC 60068-2-27
    • 10 gn 11 ms) not operating IEC 60068-2-27
  • UIMP Rated Impulse Withstand Voltage
    • 4 kV 1.2/50 µs)
  • Complementary Attributes
    • Maximum Switching Capacity : 2500 VA/280 W
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-10-15
    • HTML Description : Universal Plug-in Relay - Zelio RUM - 2 C/O - 120 V AC - 10 A - with LED
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 0.8420518732
    • Distribution Carbon Footprint : 0.0113540058
    • Installation Carbon Footprint : 0.0002863746
    • Use Carbon Footprint : 32.0109243666
    • End Of Life Carbon Footprint : 0.0118005764
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : RUM
    • Package Weight Lbs : 90.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : plug-in relay
    • Protection Category : RT I
    • Range Of Product : Harmony Electromechanical Relays
    • Returnability : Yes
    • Series Name : RUM series
    • Shape Of Pin : cylindrical
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 33 kg CO2 eq.
    • Utilisation Coefficient : 20 %
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 32.8764171966
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2506025EN
    • Pep Verification Date : 2018-05-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 88
    • Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unité (unit)
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 65.33612
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Energy model used: China
    • Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0072569608
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0072541787
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000005
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000027814
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000002
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 374.9101366104
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 11.283573487
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1595158501
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0037270317
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 363.3513675038
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.1119527378
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.0000167275
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000015724
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.000015155
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 19.2802387532
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 19.1365994236
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000000141
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0166883069
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.1269510086
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0012962536
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0012962536
    • Materials For Recycling Kg Total Life Cycle : 0.0544232853
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.0085950432
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0052645533
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0405636888
    • Net Use Of Fresh Water M3 Total Life Cycle : 116.0807791005
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0112900288
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000010161
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000000313
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 116.0694770513
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000109729
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 119.7590268274
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.4058789625
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0004034006
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0000388703
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 119.3523300436
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0003755504
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000022223
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000001364
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000020853
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000006
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0799606969
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0002503285
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000002873
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000076
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0797094788
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000005947
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 568.4286561723
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 10.1078962536
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1603227666
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0037340634
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 558.0341555383
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.1225475504
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 651.0695335776
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 11.4455331412
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1605417867
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0037399424
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 639.3370328283
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.122685879
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 82.6352196309
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.3376368876
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002139481
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000058084
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 81.2972269406
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001360461
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.7255792507
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.7255792507
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 567.7030077573
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9.3822478386
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1603227666
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0037340634
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 558.0341555383
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.1225475504
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1045475504
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1045475504
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 82.5306663168
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.2330835735
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002139481
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000058084
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 81.2972269406
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001360461
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0041560807
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0041560807
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 1663.1467818679
    • Air Pollution M3 Manufacturing A1 A3 : 283.9884726225
    • Air Pollution M3 Distribution A4 : 0.4829855908
    • Air Pollution M3 Installation A5 : 0.0114208646
    • Air Pollution M3 Operational Energy Use B6 : 1377.7811938564
    • Air Pollution M3 End Of Life C1 C4 : 0.8827089337
    • Water Pollution M3 Total Life Cycle : 1458.992878727
    • Water Pollution M3 Manufacturing A1 A3 : 135.1700288184
    • Water Pollution M3 Distribution A4 : 1.8670893372
    • Water Pollution M3 Installation A5 : 0.0434293948
    • Water Pollution M3 Operational Energy Use B6 : 1320.8821755569
    • Water Pollution M3 End Of Life C1 C4 : 1.0301556196
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.1414204147
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0077645482
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0088422485
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0078132565
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0000518409
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000011932
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.1335290566
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0000250674
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 32.8764171966
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 0.8420518732
    • Global Warming Kg Equivalent Co2 Distribution A4 : 0.0113540058
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.0002863746
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 32.0109243666
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0118005764
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0004211527
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000036994
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000000892
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0073369787
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000026282
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0007614063
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000119401
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.00000029
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0080619185
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000066936
  • General Attributes
    • Product Or Component Type : plug-in relay
    • Range Of Product : Harmony Electromechanical Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=356882690&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Carbon Footprint : 32.8764171966
    • Ambient Air Temperature For Operation : -40-55 °C
    • Environmental Disclosure : ENVPEP2506025EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP40
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506025EN
    • Pep Verification Date : 2018-05-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : China
  • Overview Attributes
    • Device Presentation : complete product
