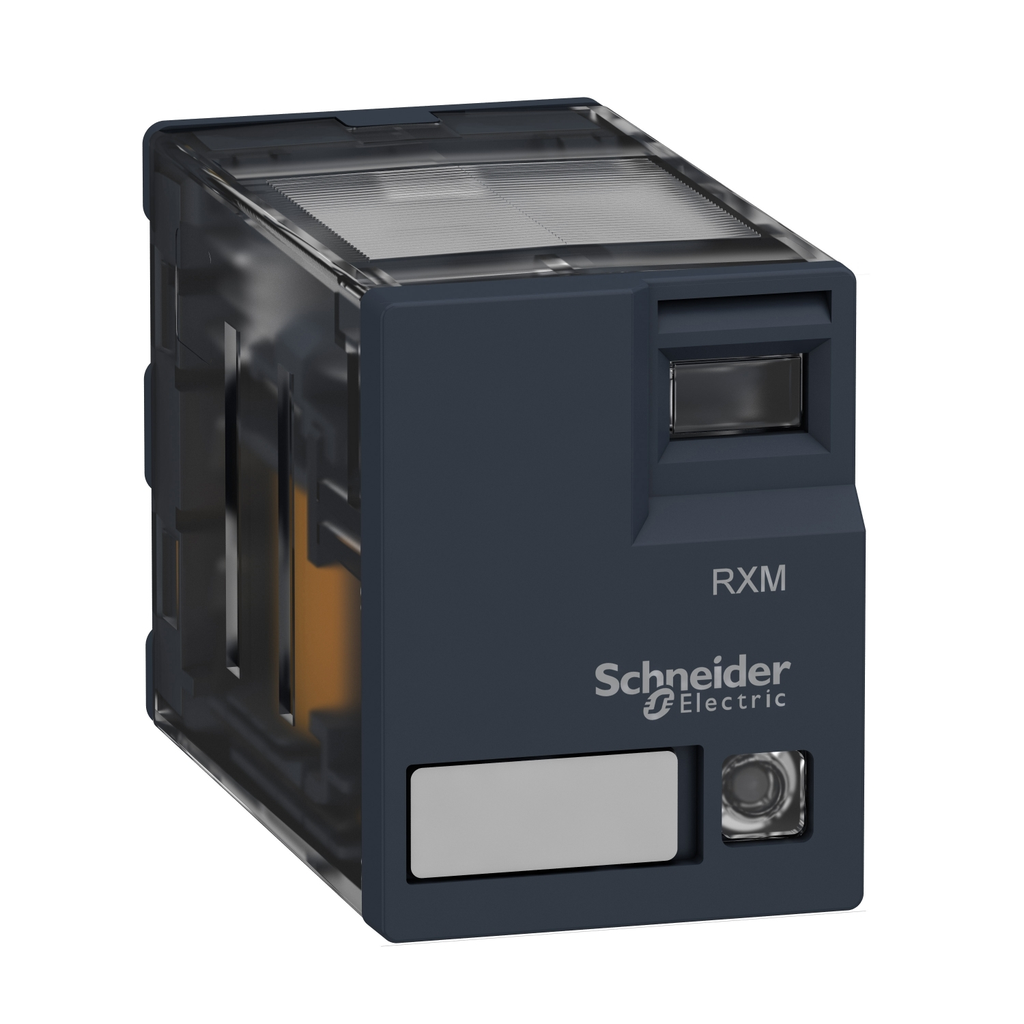

Plug In Relay, Harmony Relay, miniature, 6A at 277VAC, 4CO contacts, 120VAC 50/60Hz coil, with LED

PLUG-IN RELAY 250V 6A RXM + LE

SQDRXM4AB3F7 RXM4AB3F7 3389119217279
11.25 / EA
http://schema.org/OutOfStock
Mayer-DDS-Plug In Relay, Harmony Relay, miniature, 6A at 277VAC, 4CO contacts, 120VAC 50/60Hz coil, with LED-1
  • Certifications: CE, CSA, GOST, IECEE CB Scheme, Lloyd's, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.037 kg
  • Operating Cycles: 1200, 18000
  • Power Consumption: 1.2 VA, 60 Hz
  • Standard: CSA C22.2 No 14, IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
The RXM range of miniature relays has relays from 2 to 4 poles with 3 to 12A contact ratings. There is a good selection of relays sockets and accessories to choose from. This 4 pole relay has four CO contacts. Each contact has a common point and one normally ope and one normally closed contact. Contacts have UL operational current ratings of 6 A at 277 Vac and 8 A at 28 VDC. This relay is designed to be pluged into a relay socket. All wiring is connect to the relay socket terminals. Relay has a 120 VAC 50/60 Hz coil. This relay has a bipolar LED to indicate the relay status. Relay is UL Listed when a RXZ relay socket is used. Relay is also CSA certified. Transient protection modules and hold down clips are available for this relay. Relay is UL Listed when a RXZ relay socket is used. Relay is also CSA certified. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.
QTY
  • Product Description
  • Specifications
The RXM range of miniature relays has relays from 2 to 4 poles with 3 to 12A contact ratings. There is a good selection of relays sockets and accessories to choose from. This 4 pole relay has four CO contacts. Each contact has a common point and one normally ope and one normally closed contact. Contacts have UL operational current ratings of 6 A at 277 Vac and 8 A at 28 VDC. This relay is designed to be pluged into a relay socket. All wiring is connect to the relay socket terminals. Relay has a 120 VAC 50/60 Hz coil. This relay has a bipolar LED to indicate the relay status. Relay is UL Listed when a RXZ relay socket is used. Relay is also CSA certified. Transient protection modules and hold down clips are available for this relay. Relay is UL Listed when a RXZ relay socket is used. Relay is also CSA certified. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.
  • Environment
    • Product Certifications : UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
    • Standards : UL 508 || CSA C22.2 No 14 || IEC 61810-1
    • Pollution Degree : 2
    • Ambient Air Temperature For Operation : -40-55 °C
    • Dielectric Strength : 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Shock Resistance : 10 gnin operation || 30 gnnot operating
    • Ip Degree Of Protection : IP40 conforming to IEC 60529
    • Ambient Air Temperature For Storage : -40-85 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP2106019EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI2106019EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Maximum Switching Capacity : 1500 VA/168 W
    • Safety Reliability Data : B10d = 100000
    • Average Consumption : 1.2 VA 60 Hz
    • Continuous Output Current : 5 A
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • Protection Category : RT I
    • Test Levels : level A group mounting
    • Contacts Material : AgNi
    • Reset Time : 20 ms
    • Shape Of Pin : flat
    • Net Weight : 0.037 kg
    • Maximum Switching Voltage : 250 V IEC
    • Average Resistance : 4430 Ohm 20 °C +/- 15 %
    • Device Presentation : complete product
    • Rated Operational Voltage Limits : 96...132 V AC
    • [Ie] Rated Operational Current : 3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Electrical Durability : 100000 cycles resistive
    • Mechanical Durability : 10000000 cycles
    • Operating Position : any position
    • Operating Time : 20 ms
    • Load Current : 6 A 250 V AC || 6 A 28 V DC
    • Drop-Out Voltage Threshold : >= 0.15 Uc
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV 1.2/50 µs
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Average Coil Consumption In Va : 1.2-1.2 60 Hz
  • Specifications
    • Utilisation Coefficient : 20 %
    • [Uc] Control Circuit Voltage : 120 V AC 50/60 Hz
    • Range Of Product : Harmony Electromechanical Relays
    • Product Or Component Type : plug-in relay
    • Status Led : with
    • Control Type : without lockable test button
    • Series Name : Miniature
    • Contacts Type And Composition : 4 C/O
    • Device Short Name : RXM
