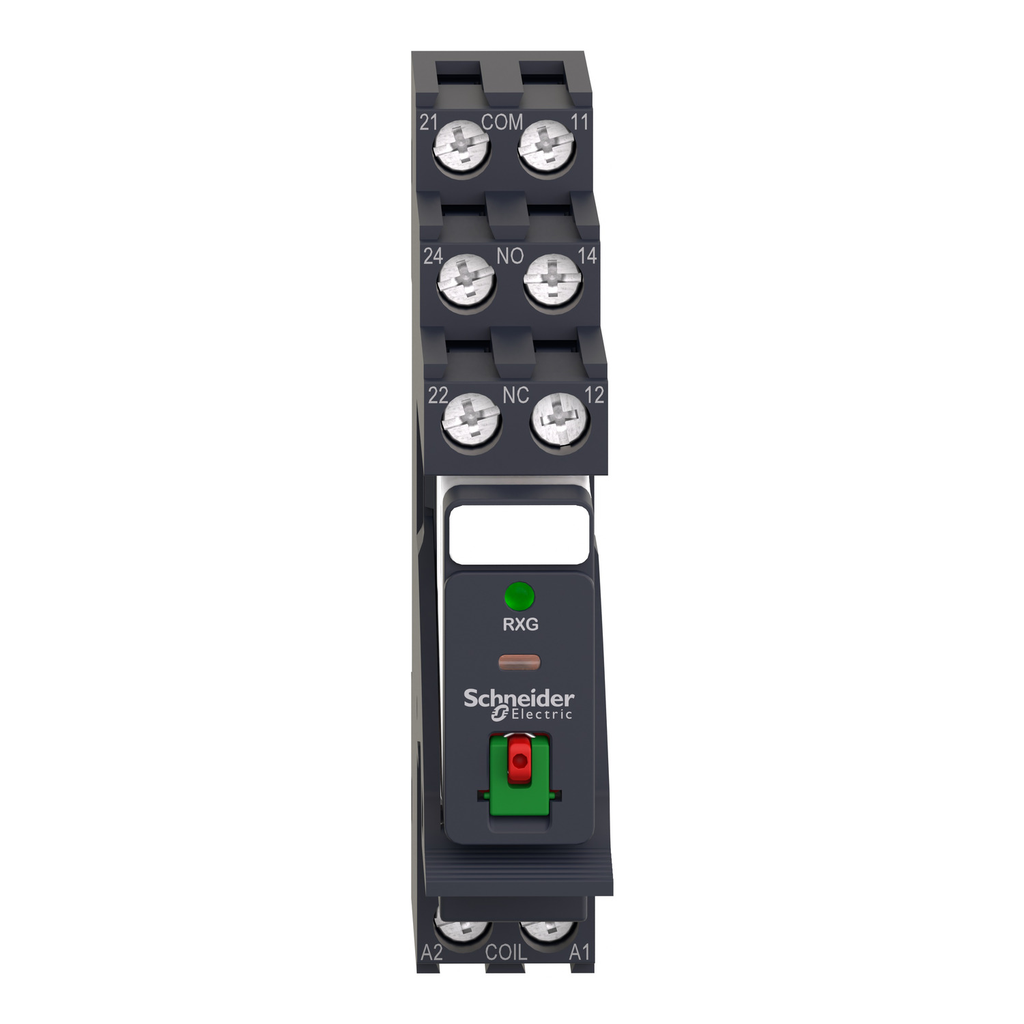

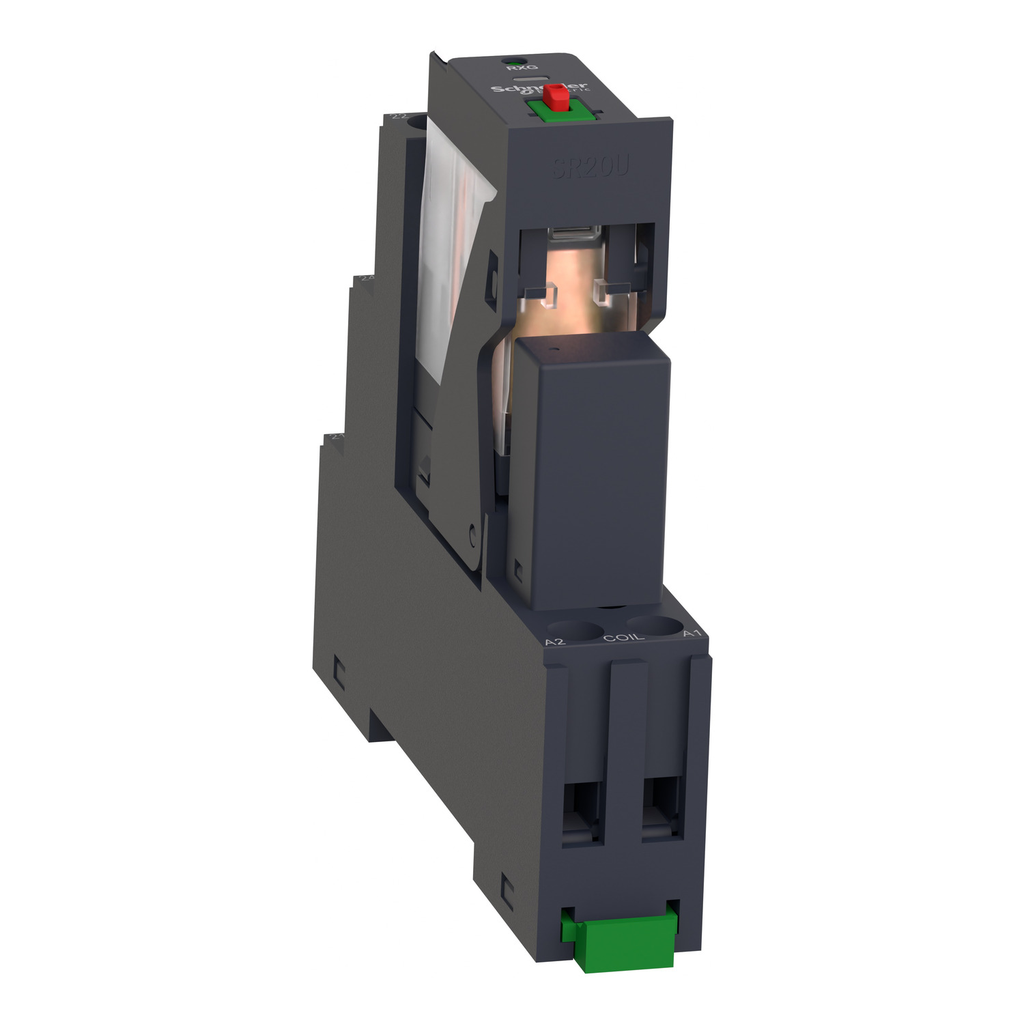

interface plug in relay, Harmony Electromechanical Relays, pre assembled, 5A, 2CO, with LED, lockable test but to n, 230V AC

HARMONY, INTERFACE PLUG-IN REL

SQDRXG22P7PV RXG22P7PV SQDRXG22P7PV
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-interface plug in relay, Harmony Electromechanical Relays, pre assembled, 5A, 2CO, with LED, lockable test but to n, 230V AC-1
  • Dielectric Strength: 1000 V, 1300 V, 3000 V, 5000 V
  • Warranty Length: 18 mth
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 230Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
QTY
  • Product Description
  • Features
  • Specifications
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 230Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Control Circuit Type : AC
    • Maximum Switching Capacity : 1250 VA AC, 150 W DC
    • Ie Rated Operational Current : 10 A at 250 V (AC) conforming to IEC10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL
    • Uc Control Circuit Voltage : 230 V AC, 230 V
    • Uimp Rated Impulse Withstand Voltage : 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation
    • Line Rated Current : 5 A
    • Maximum Switching Voltage : 250 V
    • Minimum Switching Capacity : 50 mW at 10 mA, 5 V DC
    • Ui Rated Insulation Voltage : 250 V IEC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Contacts Material : silver alloy (AgSnO2In2O3)
    • Dielectric Strength : 1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation, 3000 V between terminals and LTB area with basic insulation, 3000 V AC between poles with basic insulation, 5000 V AC between coil and contact with reinforced insulation
    • Drop Out Voltage Threshold : >= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC
    • Electrical Durability : 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
    • Operating Rate : <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Shape Of Pin : flat (faston type)
    • Vibration Resistance : 3 gn +/- 1.5 mm 10-150 Hz)in operation, 5 gn +/- 1.5 mm 10-150 Hz)not in operation
    • Connections Terminals : screw connectors, connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
    • Ie Rated Operational Current : 10 A at 250 V (AC) conforming to IEC10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL
    • Carbon Footprint Of The Distribution Phase A4 : 0.0089838, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.010239, 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.00045604
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.50821
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 22 kg CO2 eq., 21.889
    • Control Circuit Voltage : 230 V
    • Control Circuit Type2 : AC
    • Certificate Agency : EAC, CSA, UL, CE, DNV
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-02-10
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Use Carbon Footprint : 21.889
    • Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2208012EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1907
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Average Resistance : 23500 Ohm at 23 °C +/- 15 %
    • Contact Resistance : 100 mOhm
    • Contact Terminal Arrangement : separate
    • Contacts Type And Composition : 2 C/O
    • Control Type : lockable test button
    • Electrical Insulation Class : class F
    • Insulation Resistance : 1000 MOhm at 500 V DC
    • Load Current : 5 A
    • Mechanical Durability : 10000000 cycles
    • Operating Time : 20 ms
    • Overvoltage Category : III
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Protection Category : RT I
    • Range Of Product : Harmony Electromechanical Relays
    • Relay Type : interface relay
    • Reset Time : 20 ms
    • Returnability : No
    • Safety Reliability Data : B10d = 100000
    • Series Name : RXG series
    • Software Version : EIME v5.7.0.4
    • Status Led : with
    • Sustainable Packaging : Yes
    • Test Levels : level A group mounting
    • Total Lifecycle Carbon Footprint : 22 kg CO2 eq.
    • Utilisation Coefficient : 20 %
    • Ithe Conventional Enclosed Thermal Current : 5 A
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 22.417
    • Warranty In Months : 18
    • Pep Code : ENVPEP2208012EN
    • Database Version : 2018-09
    • Pep Verification Date : 2018-09-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional-unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unité (unit)
    • Reference Lifetime, In Y : 20
    • Energy Consumption On Product Lifetime, In Kwh : 44.676
    • Energy Model - Manufacturing [A1-a3] : Energy model used: China
    • Energy Model - Installation [A5] : Electricity mix; AC; < 1kV; EU-27
    • Energy Model - Use [B6] : Electricity mix; AC; < 1kV; EU-27
    • Energy Model - End Of Life [C1-c4] : Electricity mix; AC; < 1kV; EU-27
    • Recyclability Potential, In % : 36
    • Offer Owner Code : 190786
    • Pn : 1
    • Air Pollution (M3) Total Life Cycle : 1054.6
    • Air Pollution (M3) Manufacturing [A1-a3] : 111.44
    • Air Pollution (M3) Operational Energy Use [B6] : 942.09
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle : 255.69
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 7.0233
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 248.46
    • Global Warming (Kg.Equivalent.Co2) Total Life Cycle : 22.417
    • Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] : 21.889
    • Hazardous Waste Disposed Of (Kg) Total Life Cycle : 3.0226
    • Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 2.9106
    • Net Use Of Fresh Water (M3) Total Life Cycle : 79.388
    • Net Use Of Fresh Water (M3) Operational Energy Use [B6] : 79.365
    • Non-hazardous Waste Disposed Of (Kg) Total Life Cycle : 81.802
    • Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 81.611
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 387.95
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 6.1422
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 381.58
    • Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle : 443.92
    • Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 6.523
    • Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 437.17
    • Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 55.971
    • Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 55.59
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 387.02
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 5.213
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 381.58
    • Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 55.804
    • Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 55.59
    • Water Pollution (M3) Total Life Cycle : 946.37
    • Water Pollution (M3) Manufacturing [A1-a3] : 40.81
    • Water Pollution (M3) Distribution [A4] : 1.4774
    • Water Pollution (M3) Operational Energy Use [B6] : 903.22
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C, -40-85 °C
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 22.417
    • Circularity Profile : ENVEOLI2208012EN
    • Environmental Disclosure : ENVPEP2208012EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Relative Humidity : 10-85 %
    • Pep Code : ENVPEP2208012EN
    • Pep Verification Date : 2018-09-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : pre-assembled plug-in relay with socket
    • Range Of Product : Harmony Electromechanical Relays
  • ETIM
    • ETIM 8 : EC001437
    • ETIM 9 : EC001437
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, China, France
  • Overview Attributes
    • Device Presentation : complete product
    • Presentation Of Legend : with
