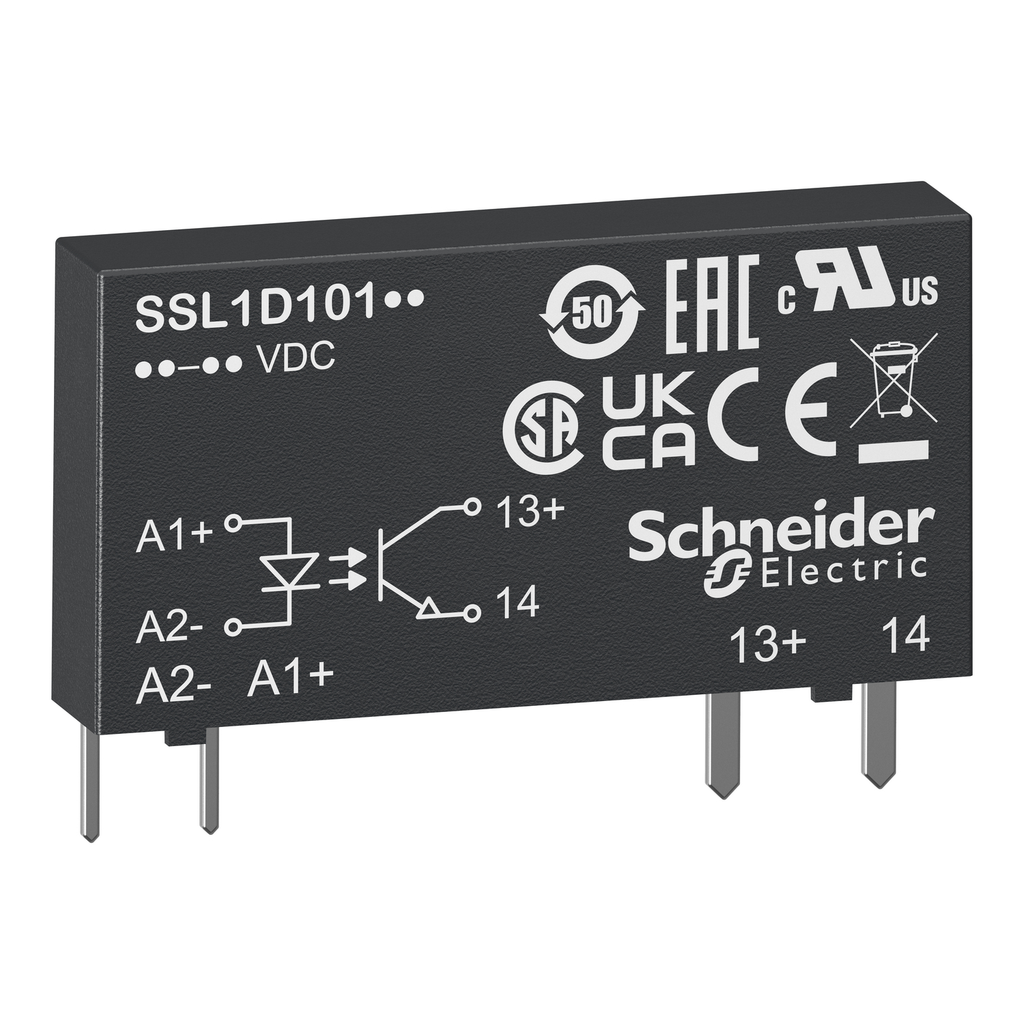

plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC

SSR SLIM 1 CHANNEL 3.5A@1-24V

SQDSSL1D03BD SSL1D03BD 3606480579653
29.42 / EA
http://schema.org/OutOfStock
Mayer-DDS-plug in relay, Harmony Solid State Slim Relays, 3.5A, DC switching, input 15 to 30V DC, output 1 to 24V DC-3
  • Certifications: CSA, UL
  • Depth: 15 mm
  • Height: 28 mm
  • Impedance: 3500 ohm
  • Line Rated Current: 3.5 A
  • Net Weight: 0.004 kg
  • Number of Phases: 1
  • Output Voltage: 1-24 V
  • Storage Temperature: -20-85 °C
  • Width: 5 mm
This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 15V to 30V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
QTY
  • Product Description
  • Specifications
This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 15V to 30V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1405004EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1405004EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • [Uc] Control Circuit Voltage : 15...30 V DC
    • Height : 28 mm
    • Output Voltage : 1...24 V DC
    • Mounting Support : socket
    • Maximum Voltage Drop : <0.5 V on-state
    • Response Time : 0.35 ms (turn-on) || 0.08 ms (turn-off)
    • Surge Current : 9 A 10 ms
    • Load Current : 0.001-3.5 A
    • Net Weight : 0.0041 kg
    • Minimum Switching Voltage : 15 V DC turn-on
    • Maximum Leakage Current : 0.001 mA off-state
    • Absolute Maximum Voltage : 30 V DC
    • Input Current Limits : 7-7 mA
    • Input Impedance : 3500 Ohm
    • Maximum Switching Voltage : 10 V DC turn-off
    • Solid State Output Type : Mosfet output || DC switching
    • Capacitance Unbalance : 1.5 pF input/output
    • Line Rated Current : 3.5 A
    • Width : 5 mm
    • Overvoltage Category : III
    • Depth : 15 mm
    • Maximum Operating Frequency : 500 Hz
  • Environment
    • Product Certifications : UL || CSA
    • Ambient Air Temperature For Operation : -20-80 °C
    • Pollution Degree : 2
    • Dielectric Strength : 2500 V for input/output
    • Marking : CE
    • Flame Retardance : V0 conforming to UL 94
    • Ambient Air Temperature For Storage : -20-85 °C
  • Specifications
    • Range Of Product : Harmony Solid State Relays
    • Output Switching Mode : DC switching
    • Product Or Component Type : solid state relay up to 10 A
    • Phase : 1 phase
    • Device Short Name : SSL
