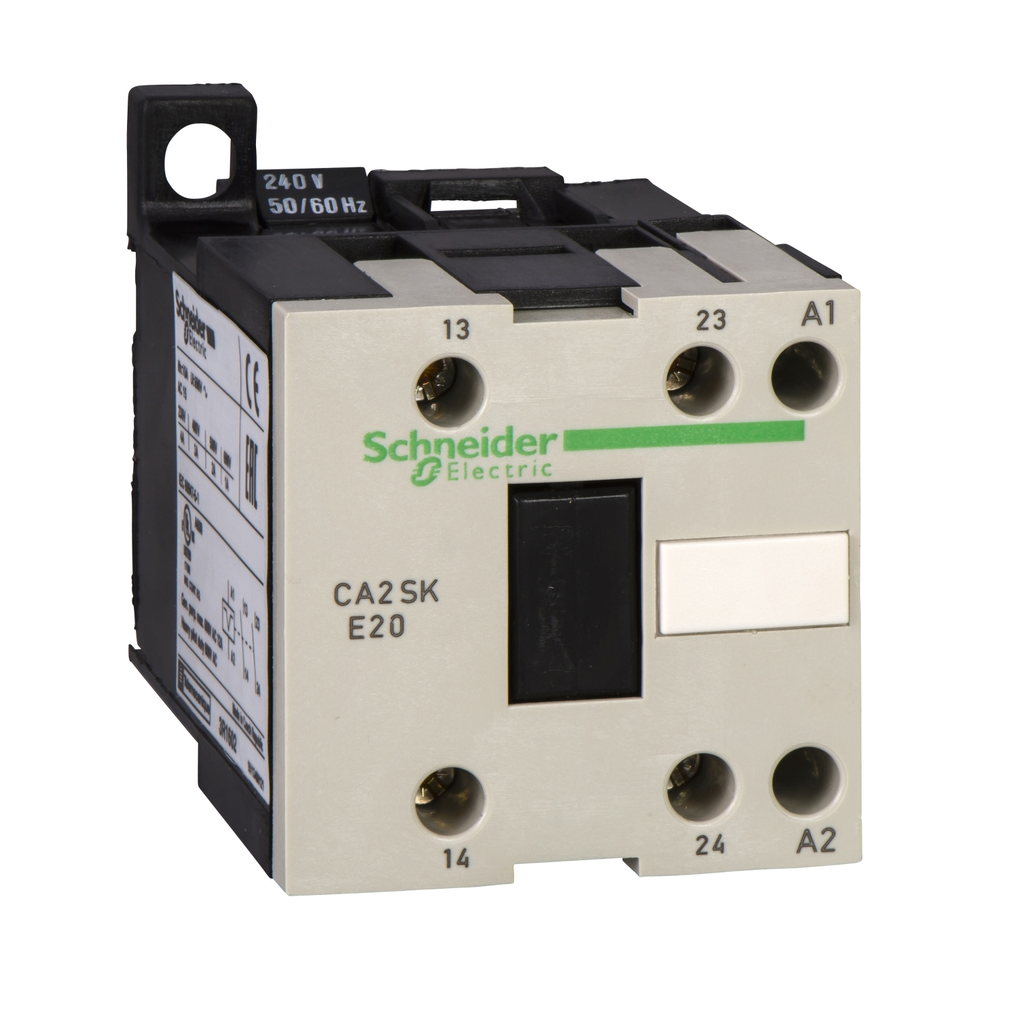

Control relay, TeSys SK, 2NO, <= 690V, 240V AC coil

ALTERNATING RELAY - 240-50/60

SQDCA2SKE20U7 CA2SKE20U7 3389110567113
202.39 / EA
http://schema.org/OutOfStock
Mayer-DDS-Control relay, TeSys SK, 2NO, <= 690V, 240V AC coil-1
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Conformance Attributes
    • Standards : EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1
  • Complementary Attributes
    • Control Circuit Voltage Limits : drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.85...1.1 Uc (at <50 °C)
    • UE Rated Operational Voltage : <= 690 V <= 400 Hz, <= 690 V <= 400 Hz
    • UI Rated Insulation Voltage : 690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14
    • Control Circuit Type : AC 50/60 Hz
    • Maximum Operating Rate : 1200 cyc/h
    • UC Control Circuit Voltage : 240 V AC 50/60 Hz
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SI
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Associated Fuse Rating : 10 A gL conforming to VDE 0660, 10 A gL conforming to IEC 60947
    • Operating Time : 6...8 ms coil de-energisation and NO opening, 7...14 ms coil energisation and NO closing
    • Carbon Footprint Of The Distribution Phase A4 : 0.05249118361084028, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.22342897412897997
    • Carbon Footprint Of The Installation Phase A5 : 0.008083719274800788, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.7315010255526213
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 57 kg CO2 eq., 56.65241524409137
    • Connections Terminals : screw clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible without cable end, screw clamp terminals 1 0.35-6 mm²flexible with cable end, screw clamp terminals 2 0.35-1.5 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible without cable end
    • Add Ons : LA4SKC1U, LA4SKE1E, LA4SKE1U
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • HTML Description : Alternating Relay, TeSys SK control relay,240-50/60
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1503003
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : CA2SKE
    • Contactor Application : control circuit
    • Device Short Name : CA2SKE
    • Heat Dissipation : 1.5-1.5 W
    • Hold In Power Consumption In VA : 4.9-4.9 VA (at 20 °C)
    • Inrush Power In VA : 23-23 VA (at 20 °C)
    • Package Weight Lbs : 181.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : control relay
    • Protective Treatment : TC IEC 60068
    • Range : TeSys
    • Range Of Product : TeSys SK control relay
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8 N.m screw clamp terminals pozidriv No 1
    • Total Lifecycle Carbon Footprint : 58 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ITH Conventional Free Air Thermal Current : 10 A (at 55 °C)
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1503003
    • Pep Verification Date : 2025-11-21
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : NANNAN YAN
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 57.667920146658616
    • Circularity Profile : ENVEOLI1503003
    • Environmental Disclosure : ENVPEP1503003
    • IP Degree Of Protection : IP2X
    • Operating Altitude : 6561.68 ft (2000 m) without derating
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1503003
    • Pep Verification Date : 2025-11-21
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : control relay
    • Range Of Product : TeSys SK control relay
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
