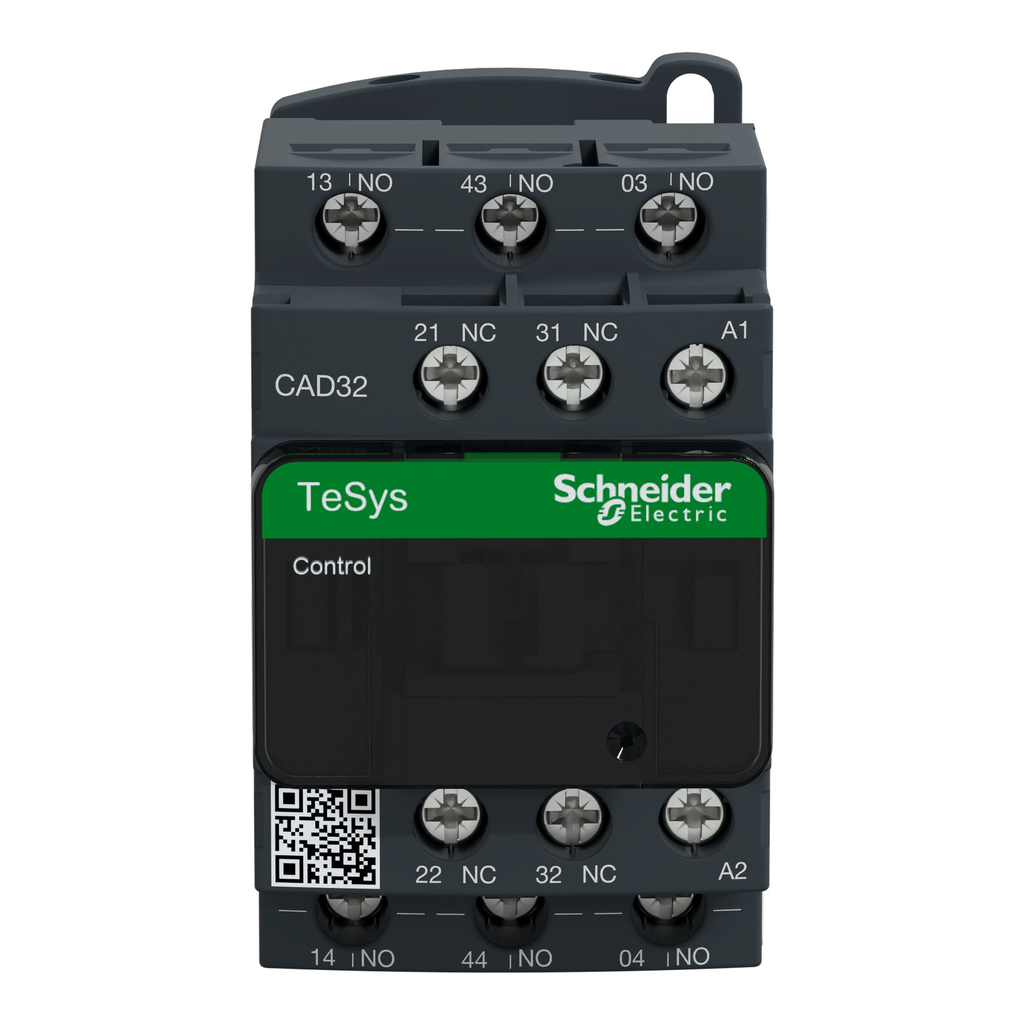

TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Standards : EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
• Complementary Attributes
• Control Circuit Voltage Limits : 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
• IRMS Rated Making Capacity : 140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
• ICW Rated Short Time Withstand Current : 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
• UE Rated Operational Voltage : <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz
• UI Rated Insulation Voltage : 600 V UL, 600 V CSA, 690 V IEC 60947-5-1
• Control Circuit Type : AC 50/60 Hz
• Maximum Operating Rate : 180 cyc/mn
• Minimum Switching Current : 5 mA
• Minimum Switching Voltage : 17 V
• UC Control Circuit Voltage : 24 V AC 50/60 Hz
• UIMP Rated Impulse Withstand Voltage : 6 kV IEC 60947
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Mechanical Robustness : shocks control relay open10 Gn for 11 ms IEC 60068-2-27, shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
• Non Overlap Time : 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
• Operating Time : 12...22 ms coil energisation and NO closing, 4...12 ms coil de-energisation and NO opening, 4...19 ms coil energisation and NC opening, 6...17 ms coil de-energisation and NC closing
• Range : TeSys, TeSys Deca
• Tightening Torque : 1.7 N.m screw clamp terminals Philips No 2, 1.7 N.m screw clamp terminals flat Ø 6 mm, 1.7 N.m screw clamp terminals pozidriv No 2
• ICW Rated Short Time Withstand Current : 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
• Carbon Footprint Of The Distribution Phase A4 : 0.26917737573943873, 0.3 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.4047080870291015
• Carbon Footprint Of The Installation Phase A5 : 0.04330956509478989, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 3.464489039829913
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 11 kg CO2 eq., 11.413132033372865
• Connections Terminals : screw clamp terminals 1 1-4 mm²flexible without cable end, screw clamp terminals 2 1-4 mm²flexible without cable end, screw clamp terminals 1 1-4 mm²flexible with cable end, screw clamp terminals 2 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²solid without cable end, screw clamp terminals 2 1-4 mm²solid without cable end
• Auxiliaries : LADN22, LADN11, LADN20, LAD8N11, LADT2, LADN40, LADN31, LADN02, LADT0
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-30
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1501004
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Associated Fuse Rating : 10 A gG conforming to IEC 60947-5-1
• Compatibility Code : CAD
• Contactor Application : control circuit
• Device Short Name : CAD
• Hold In Power Consumption In VA : 8-8 VA 50 Hz (at 20 °C)
• Inrush Power In VA : 70-70 VA 50 Hz (at 20 °C)
• Insulation Resistance : > 10 MOhm
• Package Weight Lbs : 370.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : control relay
• Protective Treatment : TH IEC 60068
• Range Of Product : TeSys D control relay
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 17 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ITH Conventional Free Air Thermal Current : 10 A (at 60 °C)
• Relationship Type : Compatible relationship
• Add Ons : LAD4RCE
• Pep Code : ENVPEP1501004EN
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : NANNAN YAN
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-60 °C, 60-70 °C with derating
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 16.594816101066108
• Circularity Profile : ENVEOLI1501004
• Environmental Disclosure : ENVPEP1501004EN
• IP Degree Of Protection : IP2X front face VDE 0106
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1501004EN
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : control relay
• Range Of Product : TeSys D control relay
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
