TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 125 V DC standard coil

RELAY 600V 10AMP TESYS+ OPTION

SQDCAD326GD CAD326GD 3389110847253
185.54 / EA
http://schema.org/OutOfStock

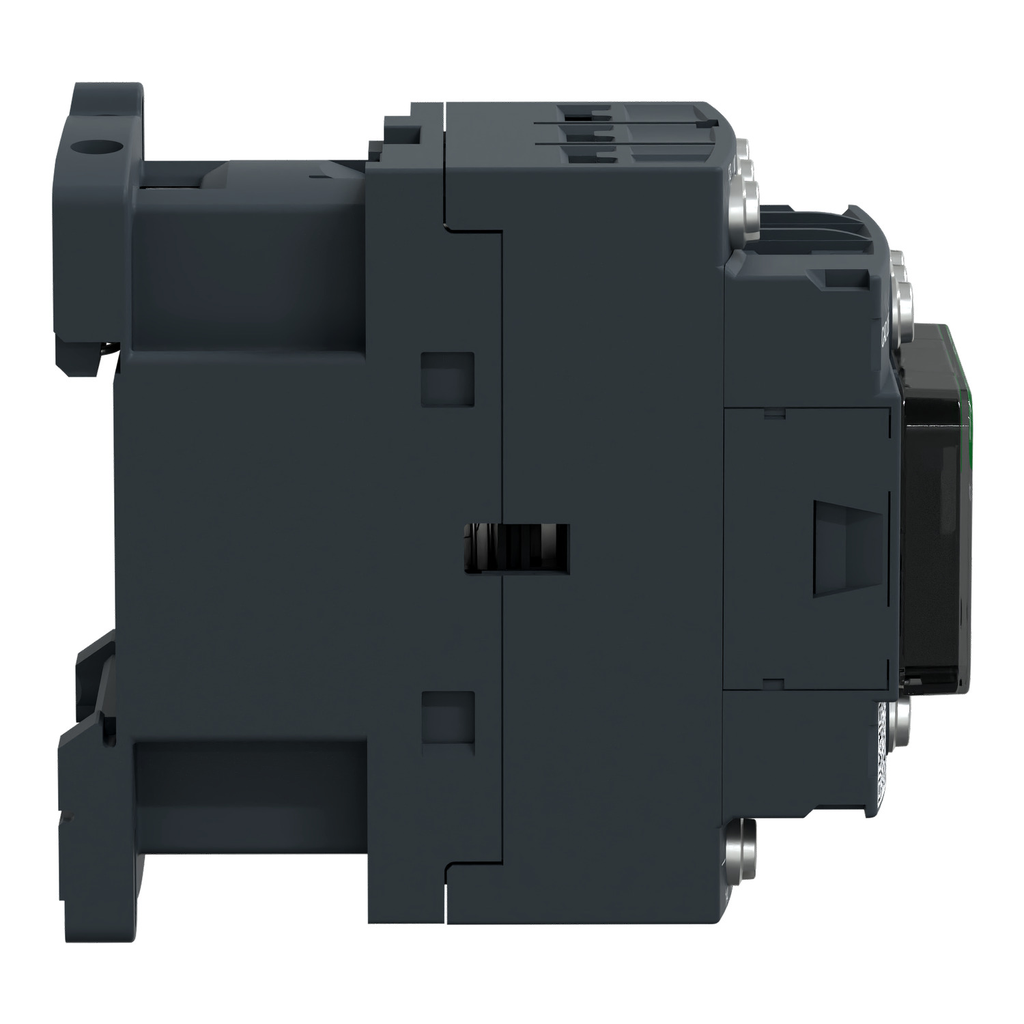

Mayer-DDS-TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 125 V DC standard coil-2
  • Country of Origin: Indonesia
  • Depth: 3.66 in
  • Height: 3.03 in
  • Warranty Length: 18 mth
  • Width: 1.77 in
TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 125V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high oper
QTY
  • Product Description
  • Features
  • Specifications
TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 125V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high oper
  • Uc Control Circuit Voltage
    • 125 V DC
  • Connections Terminals
    • lugs-ring terminals 8 mm)
  • Mounting Support
    • rail
    • plate
  • Uimp Rated Impulse Withstand Voltage
    • 6 kV IEC 60947
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.048458574119927315
    • 0 kg CO2 eq.
  • Non Overlap Time
    • 1.5 ms on energisation between NC and NO contact
    • 1.5 ms on de-energisation between NC and NO contact
    • 1.5
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 2 kg CO2 eq.
    • 1.5333878987247123
  • Standards
    • EN/IEC 60947-5-1
    • GB/T 14048.5
    • UL 60947-5-1
    • CSA C22.2 No 60947-5-1
    • JIS C8201-5-1
  • Ue Rated Operational Voltage
    • <= 690 V AC 25...400 Hz
  • Ui Rated Insulation Voltage
    • 600 V UL
    • 600 V CSA
    • 690 V IEC 60947-5-1
  • Operating Time
    • 53...72 ms coil energisation and NO closing
    • 16...24 ms coil de-energisation and NO opening
    • 47...63 ms coil energisation and NC opening
    • 47...63 ms coil energisation
  • Control Circuit Type
    • DC standard
  • Ip Degree Of Protection
    • IP2X front face VDE 0106
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 3 kg CO2 eq.
    • 3.1662563038543174
  • Protective Treatment
    • TH IEC 60068
  • Accessories
    • LAD9ET1S
    • LAD9ET1
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Inrush Power In W
    • 5.4-5.4 W 20 °C)
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 33 kg CO2 eq.
    • 32.70348648648649
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Auxiliaries
    • LADN226
    • LADN116
    • LADN406
    • LADN206
  • Carbon Footprint Of The Distribution Phase A4
    • 0.17499315126665246
    • 0.2 kg CO2 eq.
  • Ith Conventional Free Air Thermal Current
    • 10 A (at 60 °C)
  • Irms Rated Making Capacity
    • 140 A AC IEC 60947-5-1
    • 250 A DC IEC 60947-5-1
  • Mechanical Robustness
    • shocks control relay open10 Gn for 11 ms IEC 60068-2-27
    • shocks control relay closed15
  • Control Circuit Voltage Limits
    • 0.1...0.25 Uc (-40-70 °C):drop-out DC
    • 0.7...1.25 Uc (-40-60 °C):operational DC
    • 0.7...1.25 Uc (-40-6
  • Utilisation Category
    • AC-14
    • AC-15
    • DC-13
  • Hold In Power Consumption In W
    • 5.4-5.4 W 20 °C
  • Icw Rated Short Time Withstand Current
    • 100 A - 1 s
    • 120 A - 500 ms
    • 140 A - 100 ms
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Associated Fuse Rating
    • 10 A gG conforming to IEC 60947-5-1
  • Ambient Air Temperature For Operation
    • -40-60 °C
    • 60-70 °C with derating
  • Range
    • TeSys
    • TeSys Deca
  • Product Certifications
    • CB
    • CCC
    • UL
    • CSA
    • EAC
    • CE
    • UKCA
  • Complementary Attributes
    • Maximum Operating Rate : 180 cyc/mn
    • Minimum Switching Current : 5 mA
    • Minimum Switching Voltage : 17 V
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-30
    • ETIM 10 : EC000196
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Manufacturing Carbon Footprint : 3.16625630385432
    • Distribution Carbon Footprint : 0.174993151266652
    • Installation Carbon Footprint : 4.84585741199273e-02
    • Use Carbon Footprint : 32.7034864864865
    • End Of Life Carbon Footprint : 1.53338789872471
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1102030EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : CAD
    • Contactor Application : control circuit
    • Device Short Name : CAD
    • Insulation Resistance : > 10 MOhm
    • Mechanical Durability : 30 Mcycles
    • Package Weight Lbs : 533.000 g
    • Pole Contact Composition : 3 NO + 2 NC
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : control relay
    • Range Of Product : TeSys D control relay
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Time Constant : 28 ms
    • Total Lifecycle Carbon Footprint : 38 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 37.6265824144521
    • Relationshiptype : Compatible relationship
    • Add Ons : LAD4DDL
  • General Attributes
    • Product Or Component Type : control relay
    • Range Of Product : TeSys D control relay
  • Environment Attributes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=596552&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Carbon Footprint : 37.6265824144521
    • Ambient Air Temperature For Storage : -60-80 °C
    • Circularity Profile : ENVEOLI1102030EN
    • Environmental Disclosure : ENVPEP110230EN
    • Eu Rohs Directive : Compliant with Exemptions
    • Operating Altitude : 0...9842.52 ft (0...3000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Indonesia
    • Height : 3.03 in
    • Width : 1.77 in
    • Depth : 3.66 in
