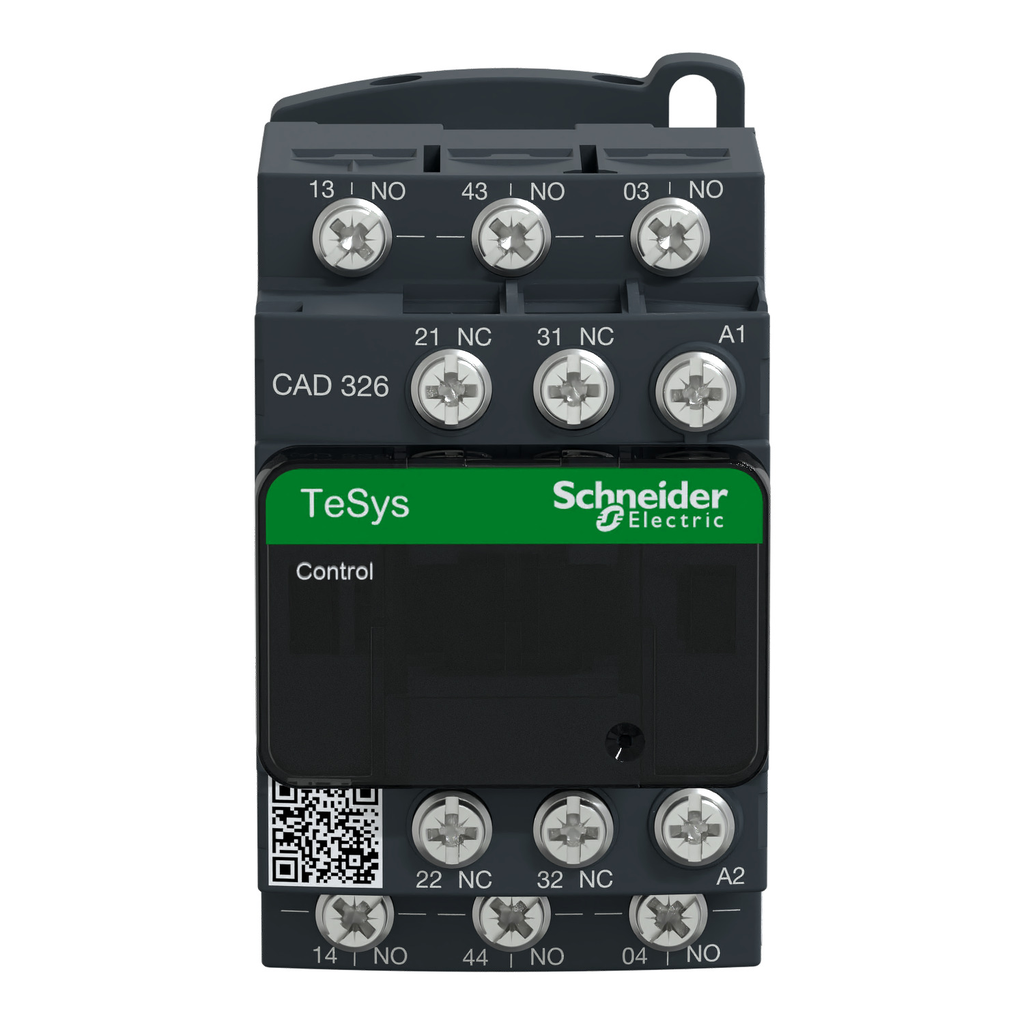

TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 120V AC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

• Inrush Power In VA
• 70-70 VA 50 Hz (at 20 °C)
• Connections Terminals
• lugs-ring terminals 8 mm)
• ITH Conventional Free Air Thermal Current
• 10 A (at 60 °C)
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=CAD326B7_3D-simplified&p_File_name=CAD326B7_2D-top.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003369_3D-CAD&p_File_name=MCADPP0003369_2D-top.dxf
• IP Degree Of Protection
• IP2X front face VDE 0106
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.04330956509478989
• 0 kg CO2 eq.
• Non Overlap Time
• 1.5 ms on energisation between NC and NO contact
• 1.5 ms on de-energisation between NC and NO contact
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 1.4047080870291015
• Standards
• EN/IEC 60947-5-1
• GB/T 14048.5
• UL 60947-5-1
• CSA C22.2 No 60947-5-1
• JIS C8201-5-1
• Operating Time
• 12...22 ms coil energisation and NO closing
• 4...12 ms coil de-energisation and NO opening
• 4...19 ms coil energisation and NC opening
• 6...17 ms coil de-energisation and NC closing
• Control Circuit Type
• AC 50/60 Hz
• UC Control Circuit Voltage
• 120 V AC 50/60 Hz
• ICW Rated Short Time Withstand Current
• 100 A - 1 s
• 120 A - 500 ms
• 140 A - 100 ms
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 3 kg CO2 eq.
• 3.464489039829913
• Protective Treatment
• TH IEC 60068
• UI Rated Insulation Voltage
• 600 V UL
• 600 V CSA
• 690 V IEC 60947-5-1
• Accessories
• LAD9ET1S
• LAD9ET1
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Add Ons
• LAD4RCU
• LAD4VG
• LAD4RCG
• LAD4VU
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 11 kg CO2 eq.
• 11.413132033372865
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Auxiliaries
• LADN226
• LADN116
• LADN406
• Carbon Footprint Of The Distribution Phase A4
• 0.26917737573943873
• 0.3 kg CO2 eq.
• Mechanical Robustness
• shocks control relay open10 Gn for 11 ms IEC 60068-2-27
• shocks control relay closed15 Gn for 11 ms IEC 60068-2-27
• vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6
• vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
• Control Circuit Voltage Limits
• 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
• 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz
• 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz
• 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• IRMS Rated Making Capacity
• 140 A AC IEC 60947-5-1
• 250 A DC IEC 60947-5-1
• Associated Fuse Rating
• 10 A gG conforming to IEC 60947-5-1
• Hold In Power Consumption In VA
• 8-8 VA 50 Hz (at 20 °C)
• Ambient Air Temperature For Operation
• -40-60 °C
• 60-70 °C with derating
• UE Rated Operational Voltage
• <= 690 V AC 25...400 Hz
• Range
• TeSys
• TeSys Deca
• UIMP Rated Impulse Withstand Voltage
• 6 kV IEC 60947

• Complementary Attributes
• Maximum Operating Rate : 180 cyc/mn
• Minimum Switching Current : 5 mA
• Minimum Switching Voltage : 17 V
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-30
• HTML Description : TeSys D Control RelayPole Contact Composition: 3 NO + 2 NCRated Operational Voltage: Control Circuit Voltage: 120V AC 50/60 HzConventional Free Air Thermal Current: 10AConnections - Terminals: Lug-ring Terminals - External Diameter: 8mmDegree of Protection: IP2x Front Face Conforming to VDE 0106
• Manufacturer : Schneider Electric
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Manufacturing Carbon Footprint : 3.464489039829913
• Distribution Carbon Footprint : 0.26917737573943873
• Installation Carbon Footprint : 0.04330956509478989
• Use Carbon Footprint : 11.413132033372865
• End Of Life Carbon Footprint : 1.4047080870291015
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1501004
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : CAD
• Contactor Application : control circuit
• Device Short Name : CAD
• Insulation Resistance : > 10 MOhm
• Package Weight Lbs : 346.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : control relay
• Range Of Product : TeSys D control relay
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 17 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 16.594816101066108
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1501004
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 580
• Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 170.82
• Recyclability Potential In : 66
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : France, FR
• Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; France, FR
• Energy Model Use B6 : Electricity Mix; Low voltage; 2018; France, FR
• Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; France, FR
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.09978859835642405
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.027756771268622332
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.0011696885675681653
• Acidification Ap Mole Of H Equiv Installation A5 : 0.0001309385256380657
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.06606606897364035
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.004665131020955131
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.015997715024438187
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.11304838632464612
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.06764611937485222
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0021572187091613566
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.029411291630671892
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.013833756609960633
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.01889711041242385
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 16.48175385458231
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 3.396829353682283
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.26917737573943873
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.041152346385628535
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 11.383720741742193
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 1.3908740370327646
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -1.276458362252985
• Climate Change Total Kg Co2 Eq Total Life Cycle : 16.594816101066108
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 3.464489039829913
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.26917737573943873
• Climate Change Total Kg Co2 Eq Installation A5 : 0.04330956509478989
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 11.413132033372865
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 1.4047080870291015
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -1.2953554726654088
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0014213327918630447
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0014045523984978602
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000002313762556
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000110304910341
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000540017286455739
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00001137909431389831
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00041194262175643935
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2336.191583234891
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 79.25654864268525
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 3.3492222207715447
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.4471508987399356
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2191.6332846978107
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 61.50537677488381
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -27.65318230932809
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 1241.0666599013973
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1121.2392159144497
• Ecotoxicity Fresh Water Ctue Distribution A4 : 1.1039208057872065
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.49797022597371965
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 80.60360238628996
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 37.62195056889656
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -25.399882054163704
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000341808805530201
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000082881183073208
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000317489681048
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000078915427648
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000255912387184829
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000002618830163468
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000006535049910359
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.0074099148005678135
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0033330995199299445
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0007438972124418483
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.0033329180681960203
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0010031435345775122
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00010200888063628779
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000003151885229265
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000079983565443233
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.0005428110075271885
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00035749229190731093
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000263025160817081
• Hazardous Waste Disposed Of Kg Total Life Cycle : 40.47109064858398
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 40.469668232664326
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.00022301279061145372
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0011322433648281668
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.00006715976421276853
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -33.429722433454714
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000596370454375815
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000595622869086179
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000379780812
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000512362534605
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000190981871286
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000043861102932
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000495314795793959
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000051493183243106
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000038668860932371
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000071094003419
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000018039927312
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000008244004250962
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000004491184129041
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000001887995384605
• Impacts Related To Land Use Soil Quality Total Life Cycle : 1.8023597001981373
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.2159741822425865
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0.00012430208766105766
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.36382736083556616
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 1.2224338550323237
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.00043698010901482896
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 316.87470403406337
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 20.838443815391166
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0005967900083787072
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.006940462453715608
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 295.84125386903537
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.18746909717477325
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -15.676087249290294
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.013065567870080036
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0024638771411703985
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0005375193826707174
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000563401986928497
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.009092169020588882
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0009156621269571893
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0008476566328133785
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.4055455008452769
• Materials For Recycling Kg Manufacturing A1 A3 : 0.050451383571516226
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.35509411727376067
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.07492632987574709
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.039810142042352496
• Net Use Of Fresh Water M3 Distribution A4 : 0.00031795892643681324
• Net Use Of Fresh Water M3 Installation A5 : 0.0000771112129058313
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.01924646753041413
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.015474650163637822
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.02103196783836664
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 3.848575718113271
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.5364062628908046
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.000273968370223056
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.015038753238268686
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 1.097437653676575
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.19941907993739932
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.9366821984350983
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000084514479320429
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000043185797919969
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000023753577352051
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000058204487951
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000016791439550845
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000725460009612
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000020806631258463
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.041902395391950745
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.009787764208990591
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0019098223091326327
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00008946797550606781
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.026927430716873427
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.003187910181448022
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.003792813277463797
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0029390996622944967
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.002411715055862111
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00005351693706579216
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000233745451143463
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0004610271193546917
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00001050309550046731
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0004373139066456655
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.17329877769232555
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.025891673986060106
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.005824572660117812
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00039335157419573963
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.1306911058341224
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.010498073637829487
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.009653148635706276
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.3118952301819045
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.3118952301819045
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 2540.987225713133
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 81.08594239022209
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 3.349244117443007
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.5061733164618044
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 2394.254637423289
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 61.79122846571715
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -28.574620779403798
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 204.79564247824192
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.8293937475368438
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00002189667146249427
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.059022417721868996
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 202.6213527254784
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.28585169083334144
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.9214384700757032
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 5.3118952301819045
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.3118952301819045
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2330.8796880047094
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 73.94465341250334
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 3.3492222207715447
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.4471508987399356
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2191.6332846978107
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 61.50537677488381
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -27.65318230932809
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.2957393374195243
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.2957393374195243
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.6309269743589743
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 203.4999031408224
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5336544101173204
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00002189667146249427
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.059022417721868996
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 202.6213527254784
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.28585169083334144
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.2905114957167288
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 3.2111562212159197
• Water Use M3 Eq Manufacturing A1 A3 : 1.7029201724030851
• Water Use M3 Eq Distribution A4 : 0.013656335890461134
• Water Use M3 Eq Installation A5 : 0.003310895244438045
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0.8266357804312868
• Water Use M3 Eq End Of Life C1 C4 : 0.6646330372466487
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.9032744058421539
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : control relay
• Range Of Product : TeSys D control relay
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=596550&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 16.594816101066108
• Circularity Profile : ENVEOLI1501004
• Environmental Disclosure : ENVPEP1501004
• EU ROHS Directive : Compliant with Exemptions
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1501004
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
