TELEMECANIQUE

connection sub-base ABE7 - for distribution of 4 thermocouples

ABE7CPA412 M340 WIRING BLOCK F

SQDABE7CPA412 ABE7CPA412 3595863914696
749.11 / EA
http://schema.org/OutOfStock

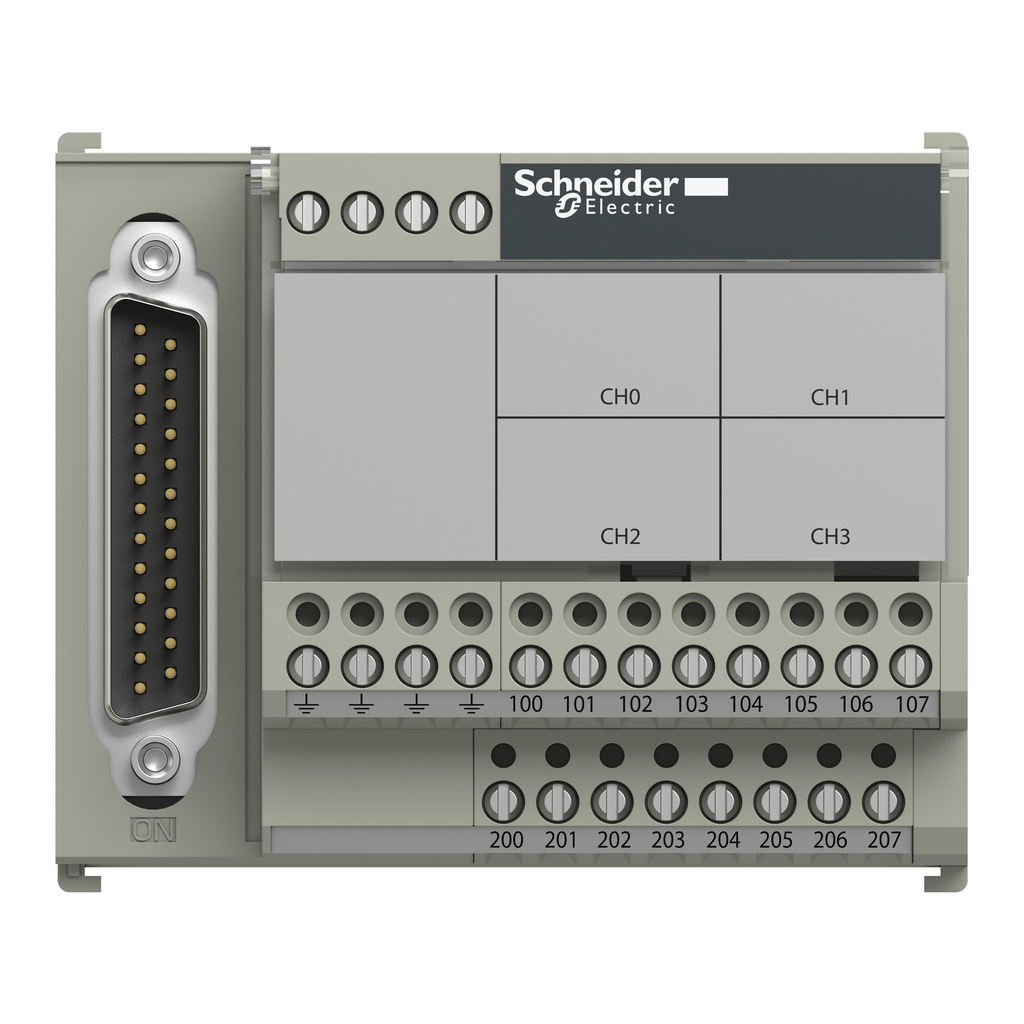

Mayer-DDS-connection sub-base ABE7 - for distribution of 4 thermocouples-3
  • Certifications: CSA, DNV, GL, UL
  • Net Weight: 0.18 kg
  • Number of Channels: 4
  • Storage Temperature: -40-80 °C IEC 61131-2
  • Warranty Length: 18 mth
This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 4 thermocouples. It distributes isolated sensor power supplies by means of a converter. It supplies cold-junction compensation for the connected thermocouple input. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXART0414 analog input module and Modicon M340 BMXART0814 analog input module. It is delivered in 2 packages (PCE and SO3 types). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
QTY
  • Product Description
  • Specifications
This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 4 thermocouples. It distributes isolated sensor power supplies by means of a converter. It supplies cold-junction compensation for the connected thermocouple input. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXART0414 analog input module and Modicon M340 BMXART0814 analog input module. It is delivered in 2 packages (PCE and SO3 types). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
  • Environment
    • Product Certifications : GL || CSA || UL || DNV
    • Resistance To Radiated Fields : 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
    • Ambient Air Temperature For Operation : 0-60 °C IEC 61131-2
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-27
    • Vibration Resistance : 2 gn 10-150 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Pollution Degree : 2 IEC 60664-1
    • Resistance To Incandescent Wire : 750 °C 30 s IEC 60695-2-11
    • Ambient Air Temperature For Storage : -40-80 °C IEC 61131-2
    • Resistance To Electrostatic Discharge : 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
    • Resistance To Fast Transients : 2 kV level 3 IEC 61000-4-4
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Installation Category : II IEC 60664-1
    • Net Weight : 0.18 kg
    • Fixing Mode : by clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
    • Tightening Torque : 0.6 N.m flat Ø 3.5 mm
    • Product Compatibility : Modicon M340 BMXART0414 || Modicon M340 BMXART0814
    • Connection To Plc : SUB-D 25
    • [Ui] Rated Insulation Voltage : 2000 V terminals/mounting rails
    • Function Of Module : distribution of 4 thermocouples Modicon M340
  • Specifications
    • Range Of Product : Modicon ABE7
    • Product Or Component Type : connection sub-base for analogue channels
    • Connections - Terminals : screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
    • Number Of Channels : 4
