connection sub-base ABE7 - for distribution of 4 analog channels protected

PS WIRING BLOCK FOR ISOLATED A

SQDABE7CPA410 ABE7CPA410 3595863931594
815.28 / EA
http://schema.org/OutOfStock
Mayer-DDS-connection sub-base ABE7 - for distribution of 4 analog channels protected-2
  • Country of Origin: Latvia
  • Warranty Length: 18 mth

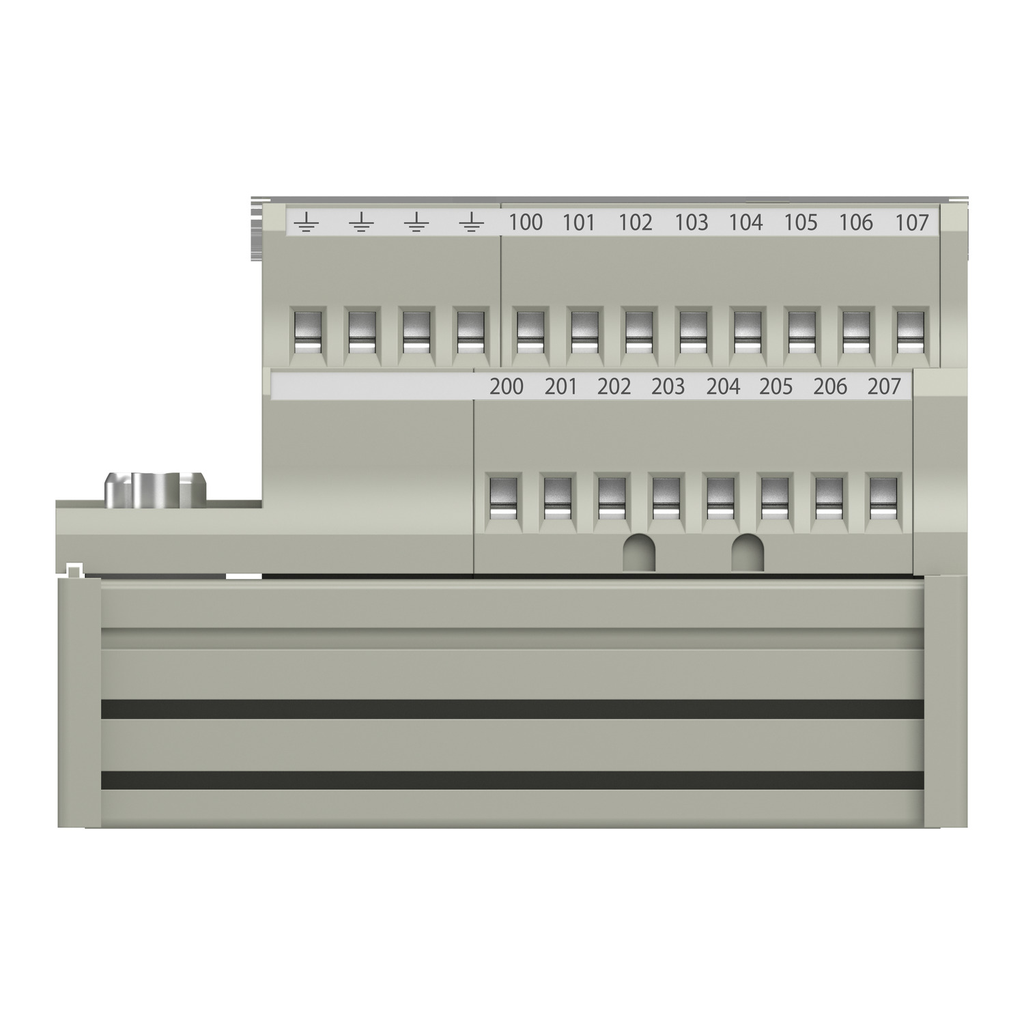

This product is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. This connection sub-base is for distribution of 4 analogue channels protected. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXAMI0410 analogue input module. It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. This connection sub-base is for distribution of 4 analogue channels protected. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXAMI0410 analogue input module. It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
  • Ambient Air Temperature For Storage
    • -40-80 °C IEC 61131-2
  • Connections Terminals
    • screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end
    • screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid
    • screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end
    • screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end
    • screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_3D-Simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-rear.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-rear.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ABE7CPA412_3D-simpl&p_File_name=ABE7CPA412_2D-top.dxf
  • IP Degree Of Protection
    • IP20 conforming to IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Resistance To Radiated Fields
    • 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
  • Installation Category
    • II IEC 60664-1
  • Function Of Module
    • distribution of supply and 4 analogue channels protected isolated Modicon M340
  • UI Rated Insulation Voltage
    • 2000 V terminals/mounting rails
  • Fixing Mode
    • by clips (35 mm symmetrical DIN rail)
    • by screws (solid plate with fixing kit)
  • Vibration Resistance
    • 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
  • Resistance To Fast Transients
    • 2 kV level 3 IEC 61000-4-4
  • Resistance To Electrostatic Discharge
    • 4 kV contact) level 3 IEC 61000-4-2
    • 8 kV air) level 3 IEC 61000-4-2
  • Tightening Torque
    • 0.6 N.m flat Ø 3.5 mm
  • Shock Resistance
    • 15 gn 11 ms IEC 60068-2-27
  • Product Compatibility
    • Modicon M340 BMXAMI0410
  • Resistance To Incandescent Wire
    • 750 °C 30 s IEC 60695-2-11
  • Ambient Air Temperature For Operation
    • 0-60 °C IEC 61131-2
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • HTML Description : Advantys Telefast ABE7 Connection Sub-base for Counter and Analog Channels ProtectedNumber of Channels: 4Connections - Terminals: Screw Type TerminalsRated Insulation Voltage: 2000 V between terminals/mounting railsDegree of Protection: IP20
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2023
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Connection To Plc : SUB-D 25
    • Package Weight Lbs : 222.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : connection sub-base for analogue channels
    • Range Of Product : Modicon ABE7
    • Returnability : No
    • Sustainable Packaging : Yes
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : connection sub-base for analogue channels
    • Range Of Product : Modicon ABE7
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=698258&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Latvia
