redundant power supply module, Modicon X80, 24 to 48V DC, safety

REDUNDANT POWER SUPPLY MODULE

SQDBMXCPS4022S BMXCPS4022S 3606489562496
1898.40 / EA
http://schema.org/OutOfStock
Mayer-DDS-redundant power supply module, Modicon X80, 24 to 48V DC, safety-1
  • Dielectric Strength: 1500 V
  • Primary Voltage: ...48 V

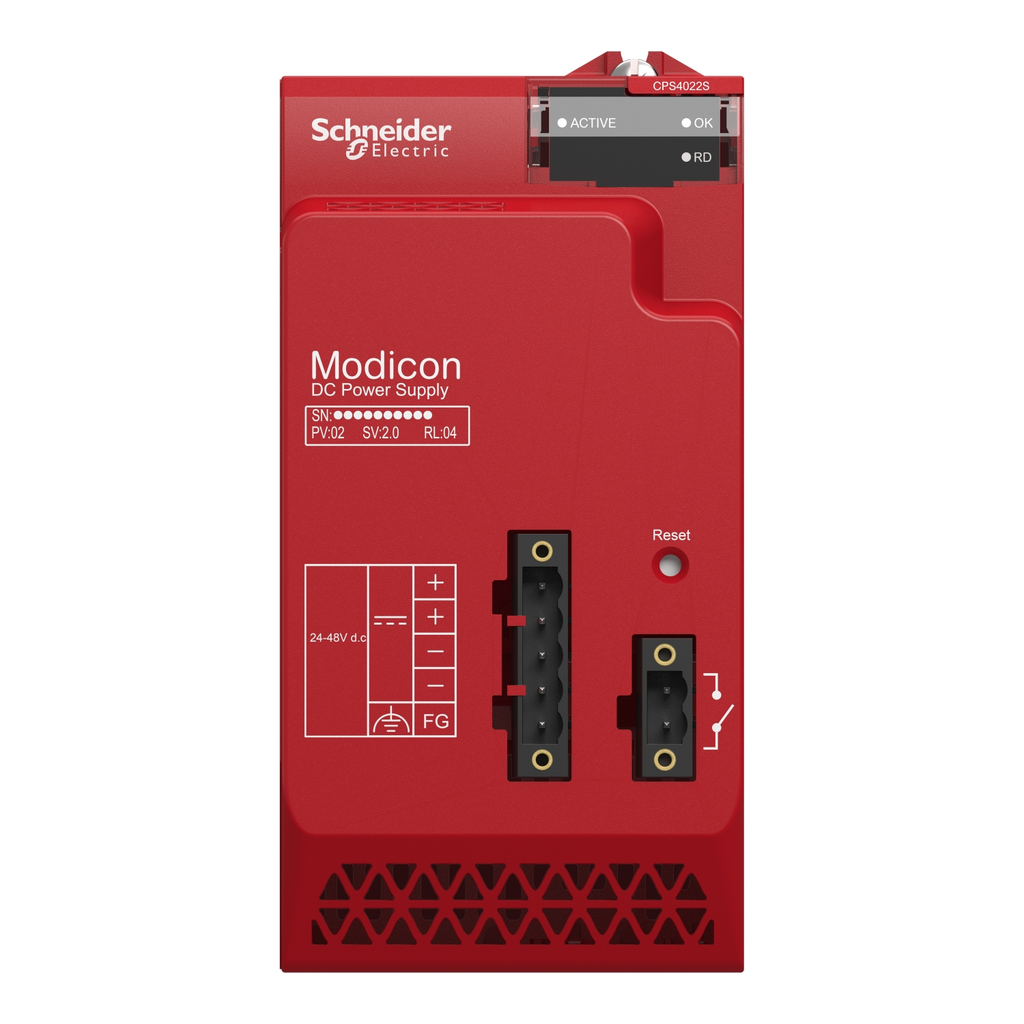

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). On the front face of the power supply, 2 connectors (2-way and 5-way) can take a removable terminal block. It converts 24…48 V DC current into 24 V DC and 3.3 V DC output voltages, distributed over the backplane. This safety power supply can provide advanced diagnostics that simplify maintenance by predicting when to replace power supply before it fails. It detects overvoltage, overload, and short-circuit conditions on 24 V DC and 3.3 V DC backplane lines. It can be installed in any rack, main or extended local rack, main or extended remote rack. It has a red coating specific to Safety products. For high-availability applications, two independent redundant power supplies can be used to increase the security of the power supply. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. The safety power supply is provided with Set of two caged removable terminal blocks. A set of two caged removable terminal blocks (5-way and 2-way) is included in the power supply package. The power supply has to be inserted in the leftmost dedicated slots on each rack (marked CPS). Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000259_3D-CAD
  • Conformance Attributes
    • Product Certifications : CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, TÜV
    • Standards : IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0
  • Complementary Attributes
    • Maximum Cable Distance Between Devices : 10 m, 15 m
    • Maximum Power Dissipation In W : 8.5 W
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current At Secondary Voltage : 1.67 A 24 V DC I/O module logic power supply, 5 A 3.3 V DC I/O module power supply and processor
    • Dielectric Strength : 1500 V primary/ground, 1500 V primary/secondary
    • Electrical Connection : 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth
    • Environmental Characteristic : hazardous location class I division 2, gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
    • Function Available : redundancy information, redundancy test, remaining lifetime, temperature sensing, uptime duration
    • I T On Activation : 1 A².s 24 V, 3 A².s 48 V
    • Inrush Current : 60 A 24 V, 60 A 48 V
    • Insulation Resistance : >= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
    • It On Activation : 0.3 A.s 24 V, 0.4 A.s 48 V
    • Protection Type : internal fuse not accessible primary circuit, overload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
    • Secondary Power : 18 W 3.3 V DC -25-60 °C I/O module logic power supply, 40 W 24 V DC -25-60 °C I/O module power supply and processor if 3.3 V not loaded
    • Status Led : 1 LED (Green) presence of voltages (OK), 1 LED (Green) redundancy OK, 1 LED (Green) power supply status
    • Carbon Footprint Of The Distribution Phase A4 : 0.9973471965879026, 1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.5179952388543219
    • Carbon Footprint Of The Installation Phase A5 : 0.006237417681114307, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 27 kg CO2 eq., 26.912056507233444
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 467 kg CO2 eq., 467.2337794379028
    • Medium Desc : redundant power supply module, Modicon X80, 24 to 48V DC, safety
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Country Of Origin 6 : US
    • Stocking Flag : N
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2410045EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Control Type : RESET push-button cold restart
    • Immunity To Microbreaks : 1 ms
    • Mtbf Reliability : 721000 H
    • Primary Voltage : 24...48 V
    • Primary Voltage Limit : 18...62.4 V
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : power supply module
    • Protective Treatment : conformal coating
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Shock Resistance : 15 gn
    • Software Version : v6.1
    • Supply Circuit Type : DC
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 497 kg CO2 eq.
    • Vibration Resistance : 3 gn
    • Pep Code : ENVPEP2410045EN
    • Database Version : 2023-02
    • Pep Verification Date : 2024-12-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To provide power to a Modicon X80 controller during 10 years and at 90% use rate, in accordance with relevant safety and performance standards.To provide power to a Modicon X80 platform during 10 years with a 90% use rate, in accordance with relevant safety and performance standards.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Indonesia, ID
    • Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; United States, US
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; United States, US
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; United States, US
  • Environment Attributes Main
    • Directives : 2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery, 2014/34/EU - ATEX directive
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 496.6674157982596
    • Ambient Air Temperature For Operation : -25-60 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2410045EN
    • Environmental Disclosure : ENVPEP2410045EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Product Compatibility : all backplane
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Pep Code : ENVPEP2410045EN
    • Pep Verification Date : 2024-12-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : power supply module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC000599
    • ETIM 9 : EC000599
  • Input Attributes
    • Input Current : 1.9 A 24 V, 1 A 48 V
  • Specifications
    • Country of Origin : Philippines, Sweden
