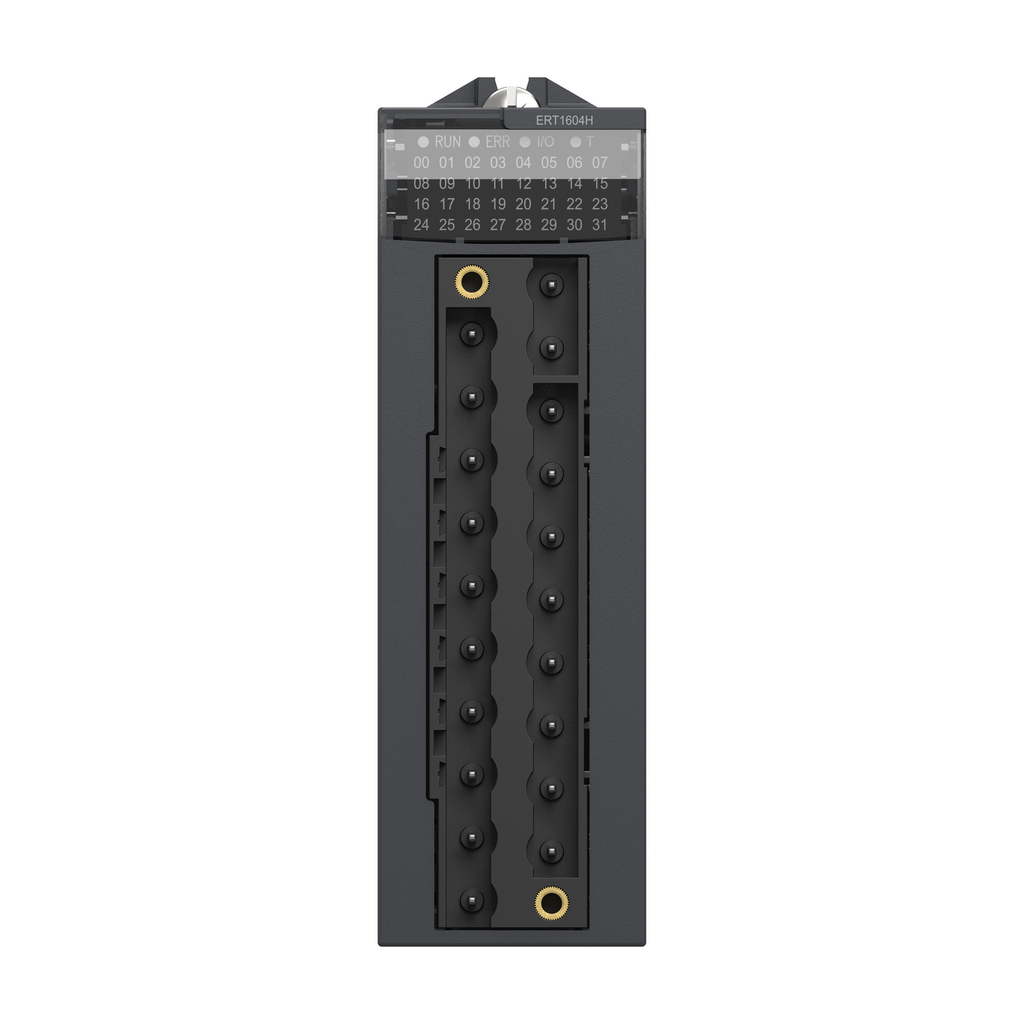

multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement

multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement

SQDBMXERT1604H BMXERT1604H SQDBMXERT1604H
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement-2
  • Country of Origin: France
  • Depth: 86 mm
  • Height: 100 mm
  • Width: 32 mm
This multifunction time stamping input module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This multifunction time stamping input module is equipped with 4 groups of 4 inputs. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module dimensions are 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
QTY
  • Product Description
  • Features
  • Specifications
This multifunction time stamping input module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This multifunction time stamping input module is equipped with 4 groups of 4 inputs. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module dimensions are 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2311046EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2311046EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 59.0618094972
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 21.8486181818
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 81 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.3034265455
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 81.281748479
  • Environment
    • Product Certifications : CE || UL || CSA || RCM || EAC || Merchant Navy
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
    • Environmental Characteristic : gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 95-95 % without condensation
    • Protective Treatment : conformal coating
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m
  • Complementary
    • Height : 100 mm
    • [Us] Rated Supply Voltage : 24 V DC 19...30 V) || 48...60 V DC 38...75 V) || 110...125 V DC 88...156 V)
    • Group Of Channels : 4 groups of 4 inputs process input
    • Sampling Duration : 0.5 ms
    • Acquisition Time : 1 ms
    • Current Consumption : 30 mA 24 V DC || 130 mA 3.3 V DC
    • Anti Bounce Filtering : configurable from 0 to 255 ms
    • Isolation Voltage : 2500 V DC 60 s bus to discrete input || 1400 V DC 60 s bus to IRIG/DCF || 2500 V DC 60 s discrete input to IRIG/DCF
    • Function Available : hot swap
    • Time Synchronisation Protocol : DCF77 || IRIG-B
    • Local Signalling : 1 LED (green) for firmware and module run (RUN) || 1 LED (green) for status of time code input (T) || 1 LED (red) for module fault (ERR) || 1 LED (red) for power supply interruption (I/O) || 16 LEDs for input status (0...15)
    • Data Recording : 1 ms time stamps
    • Switching Voltage : 125 V 1.3 mA process input || 110 V 1.3 mA process input || 60 V 2.5 mA process input || 48 V 2.5 mA process input || 24 V 6.7 mA process input
    • Width : 32 mm
    • Depth : 86 mm
    • Maximum Power Consumption In W : 4 W process input
  • Specifications
    • Country of Origin : France
    • Width : 32 mm
    • Height : 100 mm
    • Range Of Product : Modicon X80
    • Product Or Component Type : multifunction input module
