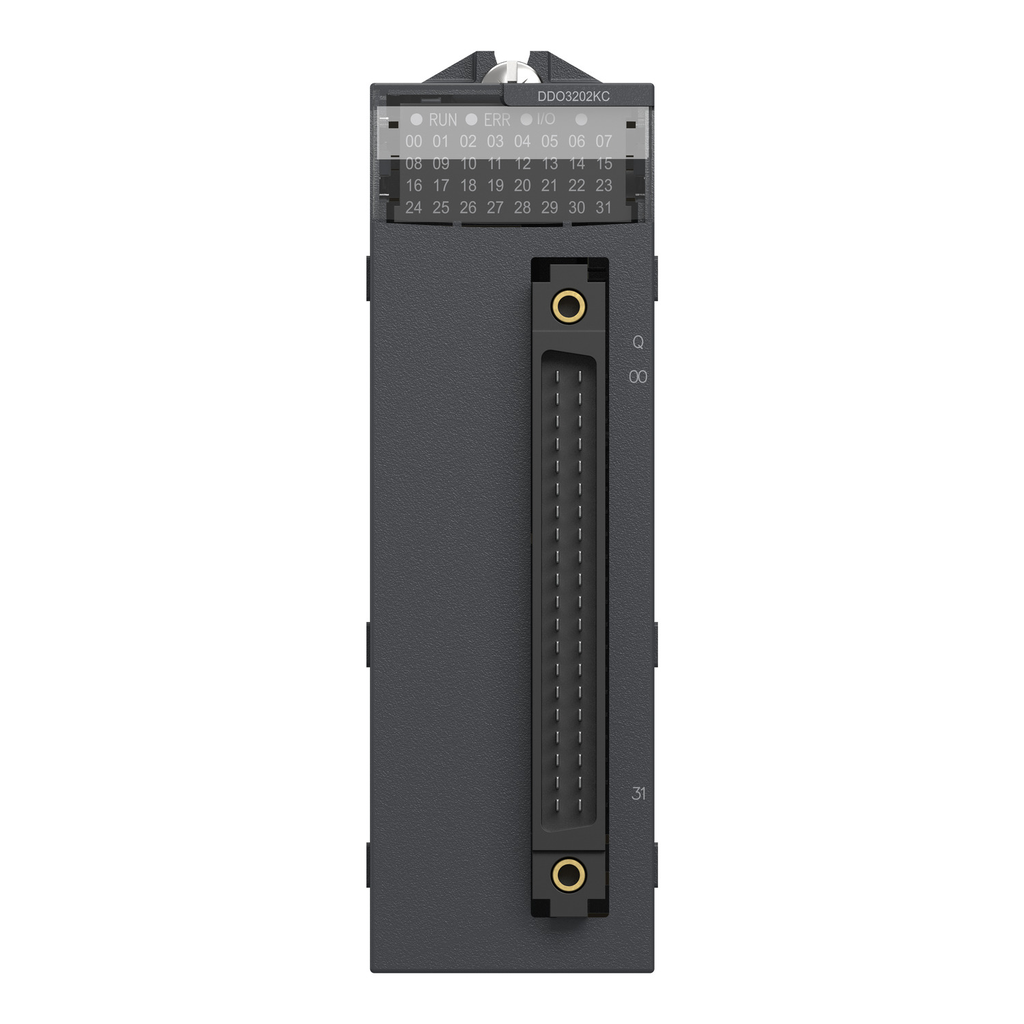

discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating

Discrete output module X80 -

SQDBMXDDO3202KC BMXDDO3202KC 3606480927829
700.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-discrete output module, Modicon X80, 32 transistor outputs, 24V DC positive, conformal coating-2
  • Country of Origin: Indonesia
  • Dielectric Strength: 1500 V, 50/60 Hz, 500 V
  • Net Weight: 0.11 kg
  • Warranty Length: 18 mth
  • Weight: 0.11 kg
This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 32 output channels and it is supplied with 24V DC (positive). Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 289176 hours of MTBF. This discrete module has a weight of 0.110kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with one 40-way connector. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Product Description
  • Features
  • Specifications
This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 32 output channels and it is supplied with 24V DC (positive). Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 289176 hours of MTBF. This discrete module has a weight of 0.110kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with one 40-way connector. The product must be installed on the rack and fixed with 2 screws.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
    • Shock Resistance : 30 gn
    • Environmental Characteristic : gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
    • Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, output/ground || 1500 V AC 50/60 Hz 1 minute, output/internal logic || 500 V DC 1 minute, between group of channels
    • Vibration Resistance : 3 gn
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 5-95 % 0-60 °C without condensation
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Protective Treatment : conformal coating
    • Ip Degree Of Protection : IP20
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2311046EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2311046EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 21.2036522346
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 19.4209939394
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 41 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.2697124848
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 40.9547091074
  • Complementary
    • Mtbf Reliability : 290000 H
    • Maximum Current Per Module : 3.2 A
    • Switching Frequency : 0.5/LI² Hz
    • Maximum Overload Time : 15 ms
    • Status Led : 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
    • Current Per Channel : 0.125 A
    • Voltage Detection Threshold : < 14 V DC preactuator fault || > 18 V DC preactuator at state 0
    • Maximum Voltage Drop : <1.5 V at state 1
    • Insulation Resistance : > 10 MOhm 500 V DC
    • Protection Type : reverse polarity protection || external short-circuit protection || overload protection || overvoltage protection
    • Power Dissipation In W : 3.6 W
    • Net Weight : 0.11 kg
    • Maximum Leakage Current : 0.1 mA at state 0
    • Load Impedance Ohmic : >= 220 Ohm
    • Paralleling Of Outputs : yes : 3 maximum
    • Typical Current Consumption : 125 mA 3.3 V DC
    • Output Overvoltage Protection : with transil diode
    • Output Short-Circuit Protection : with 2 A external fuse
    • Output Overload Protection : with current limiter || with electronic circuit breaker 0.125 A < Id < 0.185 A
    • Maximum Tungsten Load : 1.2 W
    • Reverse Polarity Protection : reverse mounted diode
    • Response Time On Output : 1.2 ms
  • Specifications
    • Country of Origin : Indonesia
    • Weight : 0.11 kg
    • Discrete Output Type : solid state
    • Range Of Product : Modicon X80
    • Discrete Output Number : 32 EN/IEC 61131-2
    • Discrete Output Logic : positive
    • Discrete Output Voltage : 24 V 19...30 V DC
    • Product Or Component Type : discrete output module
    • Discrete Output Current : 0.1 A
    • Product Specific Application : for severe environments
