SQUARE D

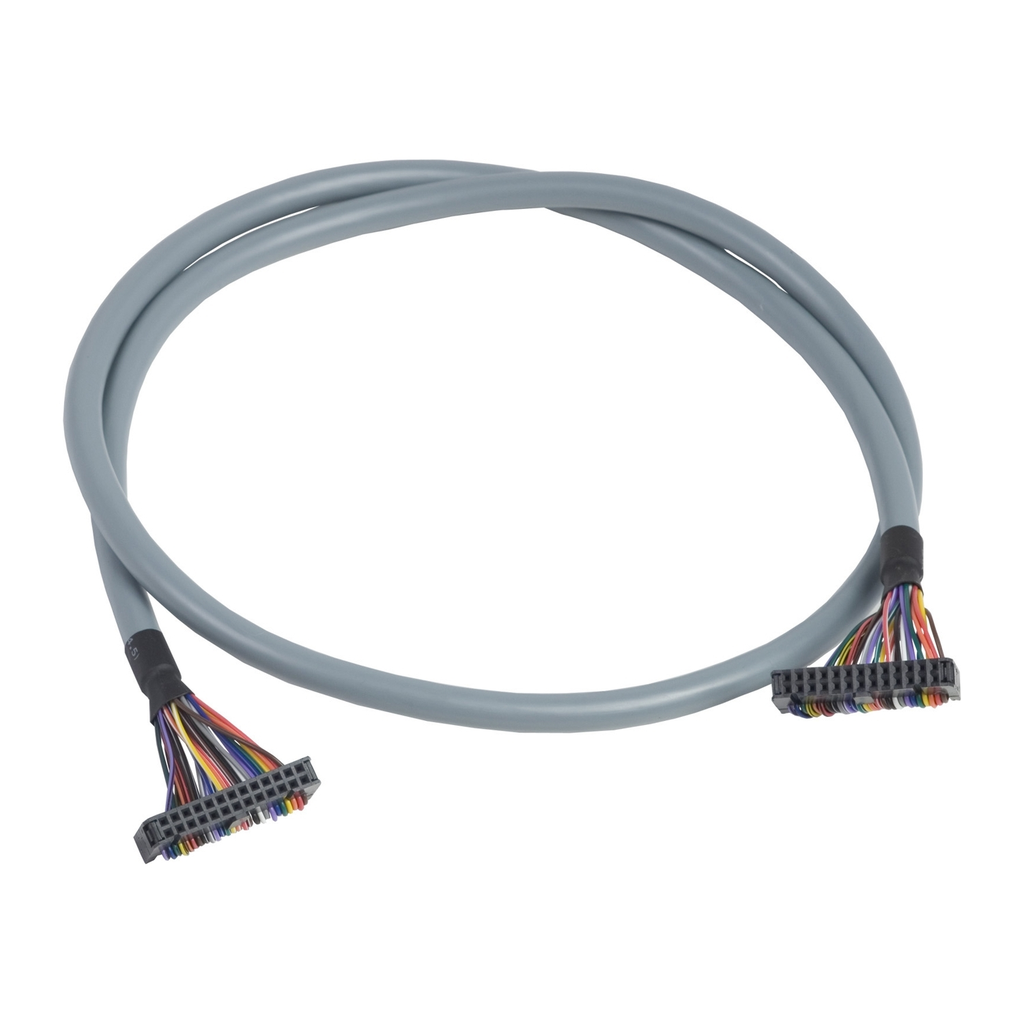

discrete I/O connecting cable - 1 m - for modular base controller

DISCRETE I/O CONNECTING CABLE

SQDABFT20E100 ABFT20E100 3389110709919
64.26 / EA
http://schema.org/OutOfStock
Mayer-DDS-discrete I/O connecting cable - 1 m - for modular base controller-1
  • Cable Length: 1 m
  • Country of Origin: USA
  • Depth: 220 mm
  • Warranty Length: 18 mth
This product is part of the Modicon ABE7 range, an offer of connection accessories for IP20 sub-bases. This discrete I/O connecting cable is suitable for modular base controller. The length of this cable is 1m. The cable has AWG 28 gauge with 0.08mm² cable cross section. It is furnished with 20-way HE10 connector for controller side and 20-way HE10 connector for Telefast ABE7 side. It weighs 0.08kg. It is suitable for all types of industrial applications. It is compatible with Advantys Telefast ABE7 and Twido range of products such as TWDDDO32TK, TWDDDI32DK, TWDDDI16DK and TWDDDO16TK. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon ABE7 range, an offer of connection accessories for IP20 sub-bases. This discrete I/O connecting cable is suitable for modular base controller. The length of this cable is 1m. The cable has AWG 28 gauge with 0.08mm² cable cross section. It is furnished with 20-way HE10 connector for controller side and 20-way HE10 connector for Telefast ABE7 side. It weighs 0.08kg. It is suitable for all types of industrial applications. It is compatible with Advantys Telefast ABE7 and Twido range of products such as TWDDDO32TK, TWDDDI32DK, TWDDDI16DK and TWDDDO16TK. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cable Length : 1 m
  • Important Information Attributes
    • Electrical Connection : 1 connector HE10, 20 ways controller side, 1 connector HE10, 20 ways Telefast ABE7 side
    • Medium Desc : discrete I/O connecting cable - 1 m - for modular base controller
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Awg Gauge : AWG 28
    • Cable Cross Section : 0.08-0.08 mm²
    • Product Availability : Stock - Normally stocked in distribution facility
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Accessory Separate Part Category : connection accessories
    • Accessory Separate Part Destination : modular base controller
    • Accessory Separate Part Type : connecting cable
    • Accessory Separate Part Designation : discrete I/O connecting cable
    • Height Nominal : 10 mm
    • Width Nominal : 220 mm
  • Environment Attributes Main
    • Product Compatibility : TWDDDO16TK, TWDDDO32TK, TWDDDI32DK, TWDDDI16DK
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • ETIM
    • ETIM 8 : EC000237
    • ETIM 9 : EC000237
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Depth : 220 mm
