basic digital output kit - Modicon STB - 24 V DC - 4 O

BASIC DIGITAL OUTPUT KIT - MOD

SQDSTBDDO3415K STBDDO3415K 3595863989281
105.06 / EA
http://schema.org/OutOfStock

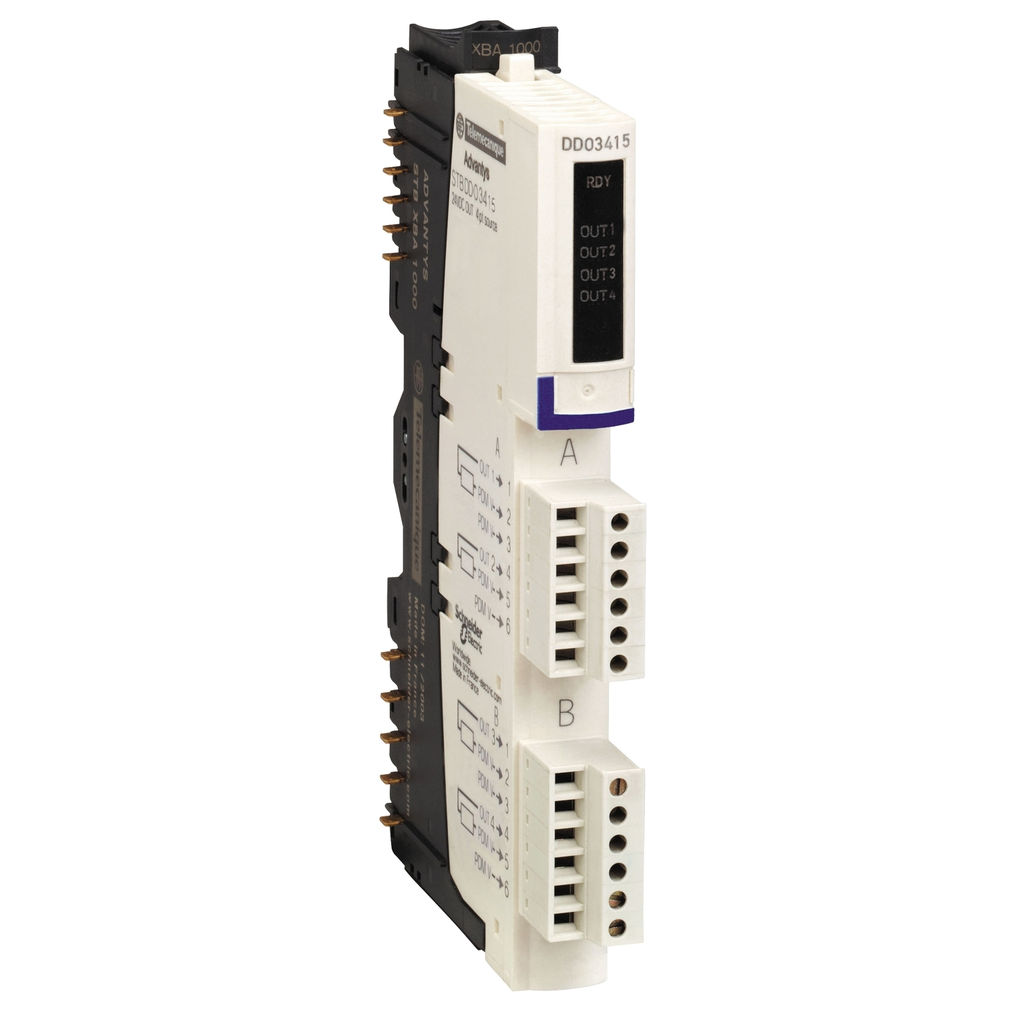

Mayer-DDS-basic digital output kit - Modicon STB - 24 V DC - 4 O-1
  • Country of Origin: USA
  • Depth: 70 mm
  • Height: 13.9 mm
  • Net Weight: 0.11 kg
  • Output Voltage: 19.2-30 V
  • Warranty Length: 18 mth
  • Weight: 0.11 kg
  • Width: 128.3 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || FM Class 1 Division 2 || UL
    • Standards : IEC 61131-2
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C without derating
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
    • Ambient Air Temperature For Operation : 32...140 °F without derating
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Scip Number : 6830dd70-e4bc-47df-85c7-e41f888576f4
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
  • Complementary
    • Insulation Between Channels And Logic Bus : 1500 V for 1 minute
    • Cold Swapping : yes
    • Height : 13.9 mm
    • Reset : manual or automatic reset COM fault
    • Absolute Maximum Voltage : 56 V 1.3 ms
    • Discrete Output Logic : positive
    • Status Led : 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (OUT1 to OUT4)
    • Output Voltage : 19.2...30 V DC
    • Hot Swapping Fallback : no for basic NIMs
    • Maximum Load Inductance : 500 mH 4 Hz
    • Supply : power distribution module
    • Response Time : 560 µs off-to-on || 870 µs on-to-off
    • Protection Type : power protection integrated fuse on PDM time lag 5 A || reverse polarity protection || short-circuit protection || thermal overload protection
    • Surge Current : 2.5 A 0.5 ms
    • Current Consumption : 70 mA 5 V DC logic bus
    • Marking : CE
    • Net Weight : 0.11 kg
    • Discrete Output Current : 250 mA
    • Width : 128.3 mm
    • Overvoltage Category : II
    • Depth : 70 mm
    • Product Compatibility : I/O base STBXBA1000 || power distribution module STBPDT3100/3105
    • Maximum Leakage Current : 0.4 mA at state 0 30 V
    • [Us] Rated Supply Voltage : 24 V DC
    • Maximum Load Capacitance : 50 µF
  • Specifications
    • Country of Origin : United States
    • Width : 128.3 mm
    • Height : 13.9 mm
    • Weight : 0.11 kg
    • Discrete Output Type : solid state
    • Range Of Product : Modicon STB distributed I/O solution
    • Discrete Output Voltage Type : DC
    • Product Or Component Type : basic digital output kit
    • Discrete Output Voltage : 24 V
    • Discrete Output Number : 4
    • Kit Composition : STBXBA1000 base || STBXTS1100, 6-terminal screw type connector || STBXTS2100, 6-terminal spring clamp connector || STBDDO3415 module
