analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA, for severe environments

Analog output module X80 - 8

SQDBMXAMO0802H BMXAMO0802H 3606489698645
1521.42 / EA
http://schema.org/OutOfStock

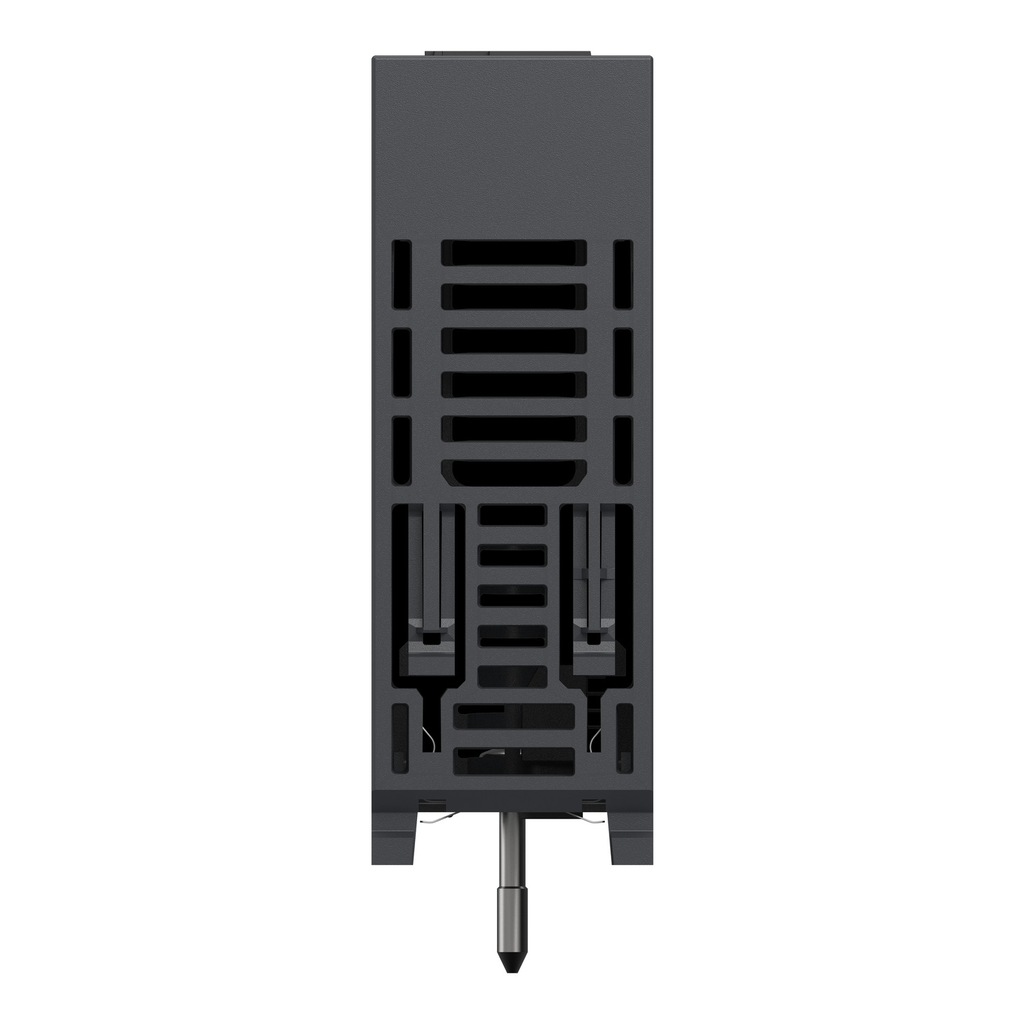

Mayer-DDS-analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA, for severe environments-2
  • Country of Origin: France
  • Net Weight: 0.15 kg
  • Weight: 0.15 kg
This analog non isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 output channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1505810 hours of MTBF. This analog module has a weight of 0.150kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Product Description
  • Features
  • Specifications
This analog non isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 output channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1505810 hours of MTBF. This analog module has a weight of 0.150kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : France
    • Weight : 0.15 kg
    • Range Of Product : Modicon X80
    • Product Or Component Type : analog output module
    • Electrical Connection : 20 ways 1 connector
    • Input Output Isolation : non isolated
    • Product Specific Application : for severe environments
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2311046EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2311046EN
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 226 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 226.4304429741
  • Complementary
    • Mtbf Reliability : 1500000 H
    • Fallback Mode : configurable || predefined
    • Measurement Error : <= 0.45 % of full scale - 25...70 °C || 0.1 % of full scale 25 °C
    • Maximum Conversion Value : 0...21 mA 0...20 mA || 0...21 mA 4...20 mA
    • Status Led : 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
    • Temperature Drift : 45 ppm/°C 0...20 mA || 45 ppm/°C 4...20 mA
    • Analogue Output Type : current 0...20 mA || current 4...20 mA
    • Common Mode Rejection : 80 dB
    • Supply : internal power supply via rack
    • Current Consumption : 150 mA 3.3 V DC || 135 mA 24 V DC
    • Minimum Crosstalk Attenuation : 80 dB
    • Net Weight : 0.15 kg
    • Isolation Voltage : 1400 V DC between channels and ground || 1400 V DC between channels and bus
    • Analogue Output Number : 8
    • Power Consumption In W : 3.6 W 24 V DC typical || 3.9 W 24 V DC maximum || 0.35 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
    • Load Impedance Ohmic : <= 350 Ohm 0...20 mA || <= 350 Ohm 4...20 mA
    • Detection Type : open circuit 4...20 mA || short circuit 0...20 mA
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Analogue Output Resolution : 16 bits
    • Conversion Time : <= 4 ms
  • Environment
    • Product Certifications : Merchant Navy || ATEX || CE || CSA || EAC || RCM || IEC-Ex || UL
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : EN 61131-2 || EN 61000-6-4 || EN 61000-6-2 || EN 61010-2-201
    • Shock Resistance : 30 gn
    • Environmental Characteristic : gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2 || hazardous location class I division 2
    • Vibration Resistance : 3 gn
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Protective Treatment : conformal coating
    • Ip Degree Of Protection : IP20
