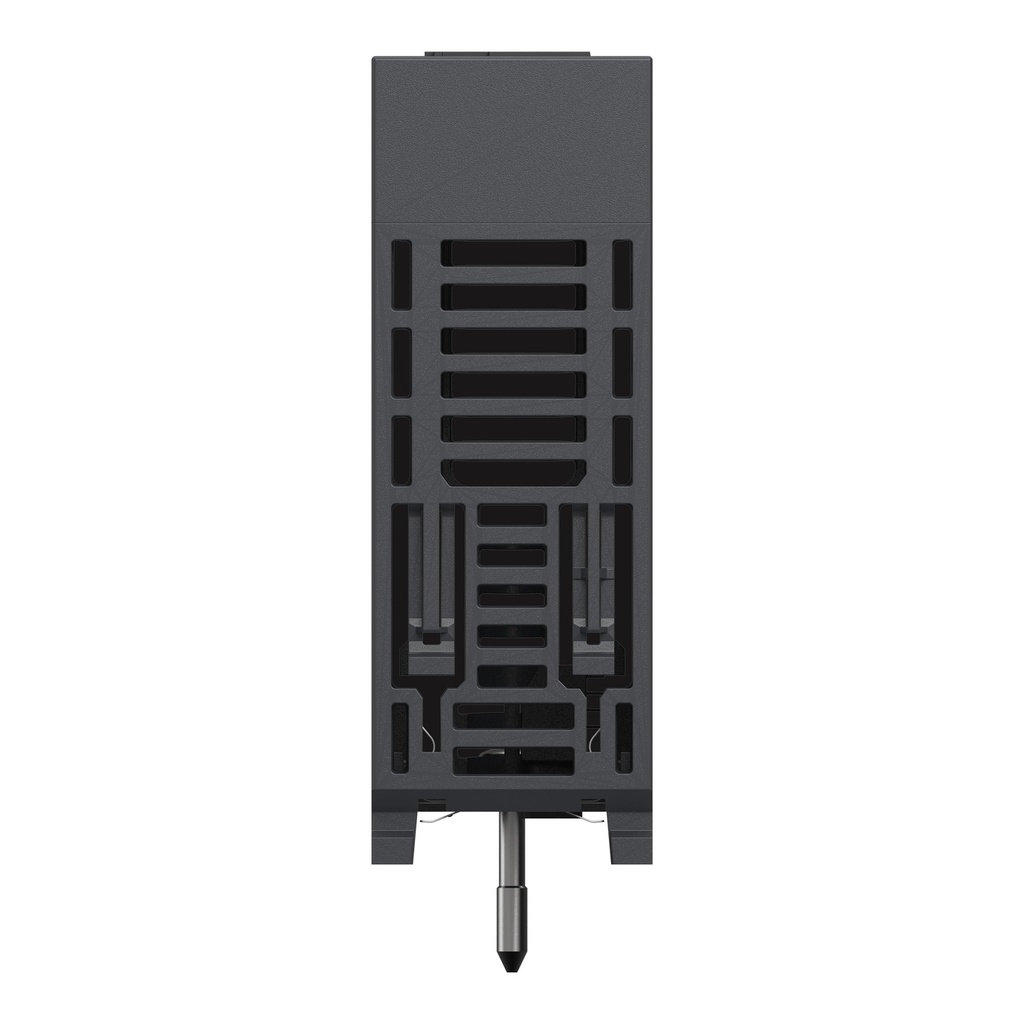

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 4 outputs with 15bit + sign resolution. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way terminal block, Telefast for electrical connection. It weighs 0.223kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with BMEP58xxx processor, BMEXBPxxx backplane, ABE7CPA21, head module BMECRA31210, BMXFTB20xxx terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Electrical Connection : 20 ways terminal block, Telefast
• Isolation Voltage : 1000 V DC 60 s between channels, 1400 V DC 60 s between channels and ground, 1400 V DC 60 s between channels and bus
• Load Impedance Ohmic : 600 Ohm 0...20 mA, 570 Ohm 0...21 mA
• Measurement Error : 0.1 % of full scale 25 °C, 0.2 % of full scale 0...60 °C
• Product Or Component Type : analog output module
• Carbon Footprint Of The Distribution Phase A4 : 0.0282449455, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.3832756364
• Carbon Footprint Of The Installation Phase A5 : 0.0575162182, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 28 kg CO2 eq., 27.5982545455
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 233 kg CO2 eq., 233.4714871508
• Certificate Agency : CE, RCM, CSA, EAC, Merchant Navy, UL
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-23
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2311046EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2438
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Application Specific I O : HART
• Checks : broken wire detection
• Function Available : I/O mapping
• Product Availability : Stock - Normally stocked in distribution facility
• Protective Treatment : standard version
• Range Of Product : Modicon X80
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Temperature Drift : 45 ppm/°C
• Topology : point-to-point
• Total Lifecycle Carbon Footprint : 262 kg CO2 eq.
• Warranty In Months : 18
• Pep Code : ENVPEP2311046EN
• Database Version : 2022-01
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; FR
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Recyclability Potential, In % : 3
• Offer Owner Code : 190786
• Pn : 1
• Water Use (M3 Eq) Manufacturing [A1-a3] : 76521.6
• Environment Attributes Main
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• Product Compatibility : BMEP58... processor, BMEXBP... backplane, ABE7CPA21, head module BMECRA31210, BMXFTB20... terminal block
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 261.5387784963
• Ambient Air Temperature For Operation : 0-60 °C
• Circularity Profile : ENVEOLI2311046EN
• Environmental Disclosure : ENVPEP2311046EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2311046EN
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : analog output module
• Range Of Product : Modicon X80
• ETIM
• ETIM 8 : EC001420
• ETIM 9 : EC001420
• Output Attributes
• Analogue Output Number : 4
• Analogue Output Resolution : 15 bits + sign
• Analogue Output Type : current 4...20 mA
• Input Attributes
• Input Output Isolation : isolated
• Specifications
• Country of Origin : Canada
