analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA, for severe environments

Analog input module X80 - 8

SQDBMEAHI0812H BMEAHI0812H 3606485418315
2995.00 / EA
http://schema.org/OutOfStock

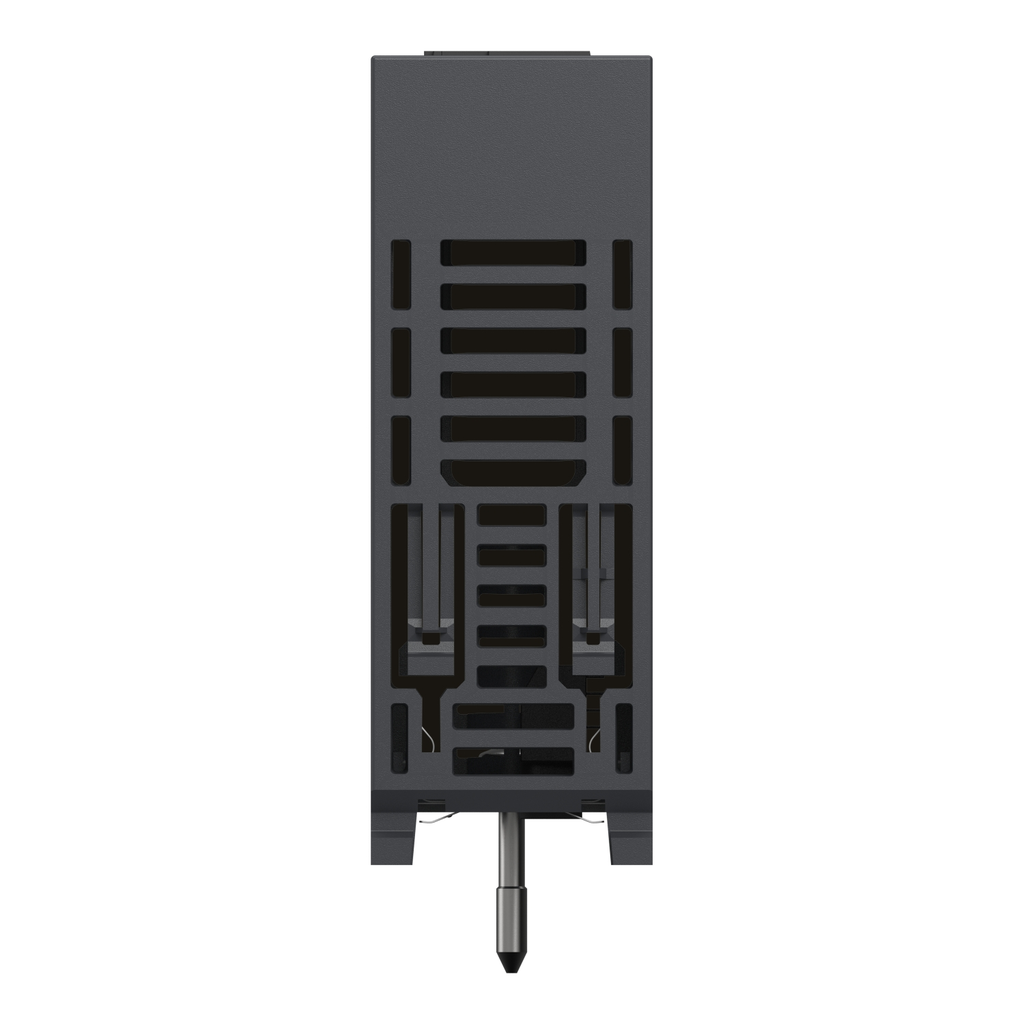

Mayer-DDS-analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA, for severe environments-2
  • Country of Origin: France
  • Net Weight: 0.233 kg
  • Weight: 0.233 kg
This HART analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 627924 hours of MTBF. This analog module has a weight of 0.233kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Product Description
  • Features
  • Specifications
This HART analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 627924 hours of MTBF. This analog module has a weight of 0.233kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2311046EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2311046EN
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 139 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 138.9991960759
  • Complementary
    • Measurement Error : 0.15 % of full scale 25 °C || 0.55 % of full scale - 25...70 °C
    • Temperature Drift : 50 ppm/°C
    • Analogue Input Resolution : 15 bits + sign
    • Net Weight : 0.233 kg
    • Input Impedance : 250 Ohm internally protective resistor (3.6 to 50 Ohm)
    • Electrical Connection : 20 ways terminal block || Telefast
    • Topology : point-to-point
    • Input Output Isolation : isolated
    • Analogue Input Number : 8
    • Isolation Voltage : 1000 V DC 60 s between channels || 1400 V DC 60 s between channels and ground || 1400 V DC 60 s between channels and bus
    • Function Available : I/O mapping
    • Application Specific I/O : HART
    • Product Compatibility : BMEP58... processor || BMXFTB20... terminal block || ABE7CPA31 || ABE7CPA02 || ABE7CPA03 || head module BMECRA31210 || BMEXBP... backplane
    • Analogue Input Type : current 4...20 mA
    • Checks : broken wire detection
  • Specifications
    • Country of Origin : France
    • Weight : 0.233 kg
    • Range Of Product : Modicon X80
    • Product Or Component Type : analog input module
  • Environment
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
    • Product Certifications : CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
    • Environmental Characteristic : gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
    • Ambient Air Temperature For Storage : -40-85 °C
    • Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
    • Protective Treatment : conformal coating
