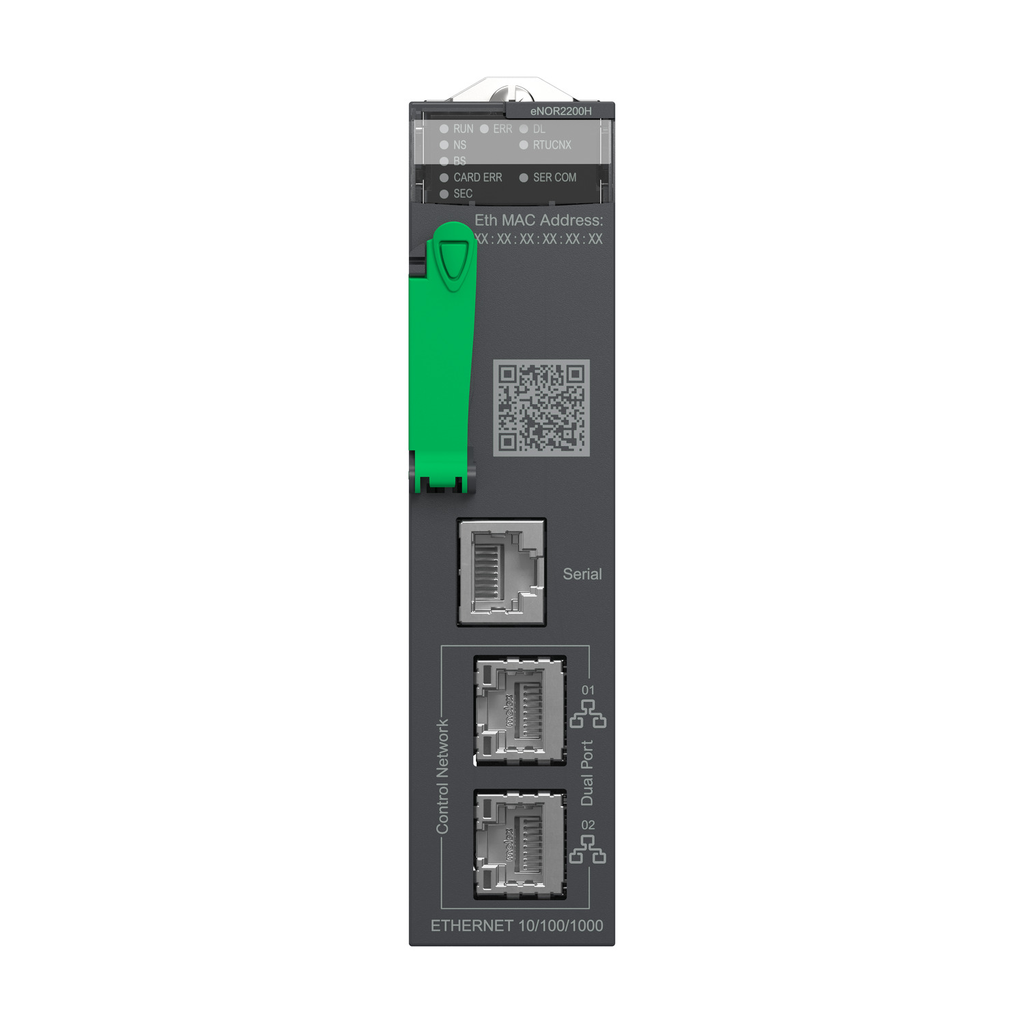

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module enables M580 platform to use RTU protocol exchange with RTU stations. It features enhanced cybersecurity. It complies with M580 Hot Standby system. It supports up to 64 devices when module acts as Client/Master. It weighs 0.345kg. It provides enhanced cybersecurity. It complies with DNP3 NET IEC60870-5-104 RTU protocol. The module is delivered in 1 packing unit. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_3D-Simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-rear.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMENOR2200H_3D-Simpl&p_File_name=BMENOR2200H_2D-top.dxf
• Communications & Management Attributes
• Communication Service : DNP3 NET server SAv2/SAv5 with pre-shared key, DNP3 NET client SAv2/SAv5 with pre-shared key, IEC 60870-5-101 server/client, IEC 60870-5-104 server/client, Modbus TCP messaging, web server (HTTPS), HTML5, FDR client, SNTP client, SNMP V1/V3 agent, time stamped events management, automatic events backup on power loss, transparent events routing from remote servers to SCADA, data logging service, IEC60870-5-104 channel redundancy, DNP3 NET multiple session, NAT router, IP forwarding, Crashlog
• Conformance Attributes
• Product Certifications : UKCA, CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, UKCA type 1
• Standards : IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0
• Complementary Attributes
• Integrated Connection Type : 1 RS232 RJ45 115200 bit/s 8 wires, 1 RS485 RJ45 115200 bit/s 1 twisted shielded pair, 2 Ethernet RJ45 10/100/1000 Mbit/s double shielded twisted pair
• Maximum Number Of Modules Per Rack : 4
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Cybersecurity : role-based access control, system hardening, secure communication (HTTPS), Achilles certified, Syslog protocol support, transport layer security for RTU protocols, SNMP logging, certificate based authentication, NAT, network physical isolation
• Environmental Characteristic : gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3, hazardous location class I division 2
• Local Signalling : 1 LED (green/red) for cyber security (SEC), 1 LED (yellow) for serial communication (SER COM), 1 LED (red) for download in progress (DL), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR), 1 LED (green) for processor running (RUN), 1 LED (green/red) for status of control ethernet (NS), 1 LED (green) for RTU connection status (RTUCNX), 1 LED (green/red) for status of backplane ethernet (BS)
• Carbon Footprint Of The Distribution Phase A4 : 0.068259852, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5449158, 0.5 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0.2 kg CO2 eq., 0.17506836
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 39 kg CO2 eq., 39.47364
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 144 kg CO2 eq., 143.5585714286
• Medium Desc : communication module, Modicon M580, IEC 60870-5-101/104, DNP3, for severe environments
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-13
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2309052EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Backplane Slot Location : Ethernet + X-bus Slot
• Current Consumption : 137 mA 24 V DC
• Device Application : remote monitoring and telecontrol application
• Marking : CE
• Memory Description : support flash SD memory card (BMXRMS004GPF) 4 GB
• Mounting Location : main rack
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : communication module
• Protective Treatment : conformal coating
• Range Of Product : Modicon M580
• Returnability : Yes
• Shock Resistance : 30 gn
• Software Version : v5.9.4
• Supply : internal power supply via rack
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 184 kg CO2 eq.
• Vibration Resistance : 3 gn
• Pep Code : ENVPEP2309052EN
• Database Version : 2022-01
• Pep Verification Date : 2023-09-27
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : The OPC UA module allows data communication with any Client in accordance with the OPC UA Client/Server standard. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 3,36W (140 mA at 24 V DC).& 10& 10IEC 61000-6-5, IEC 61850-3
• Functional Unit Unit : EACH
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Height Nominal : 131 mm
• Length Total : 86 mm
• Width Nominal : 32 mm
• Environment Attributes Main
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
• Operating Altitude : 0...6561.68 ft (0...2000 m), 2000 m...5000 m with derating factor
• Product Compatibility : Modicon M580 standalone CPU (BMEP58…..), Modicon M580 Redundant CPU (BMEH58…..), Modicon M580 safety CPU (non interfering type 1) (BMEP582…..), Modicon M580 safety Redundant CPU (non interfering type 1) (BMEH582…..), Modicon X80 Rack with Ethernet backplane (BMEXBP…..)
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 183.8204554406
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2309052EN
• Environmental Disclosure : ENVPEP2309052EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2309052EN
• Pep Verification Date : 2023-09-27
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : communication module
• Range Of Product : Modicon M580
• ETIM
• ETIM 8 : EC001423
• ETIM 9 : EC001423
